70 CHAPTER 4: CONFIGURING THE SWITCH

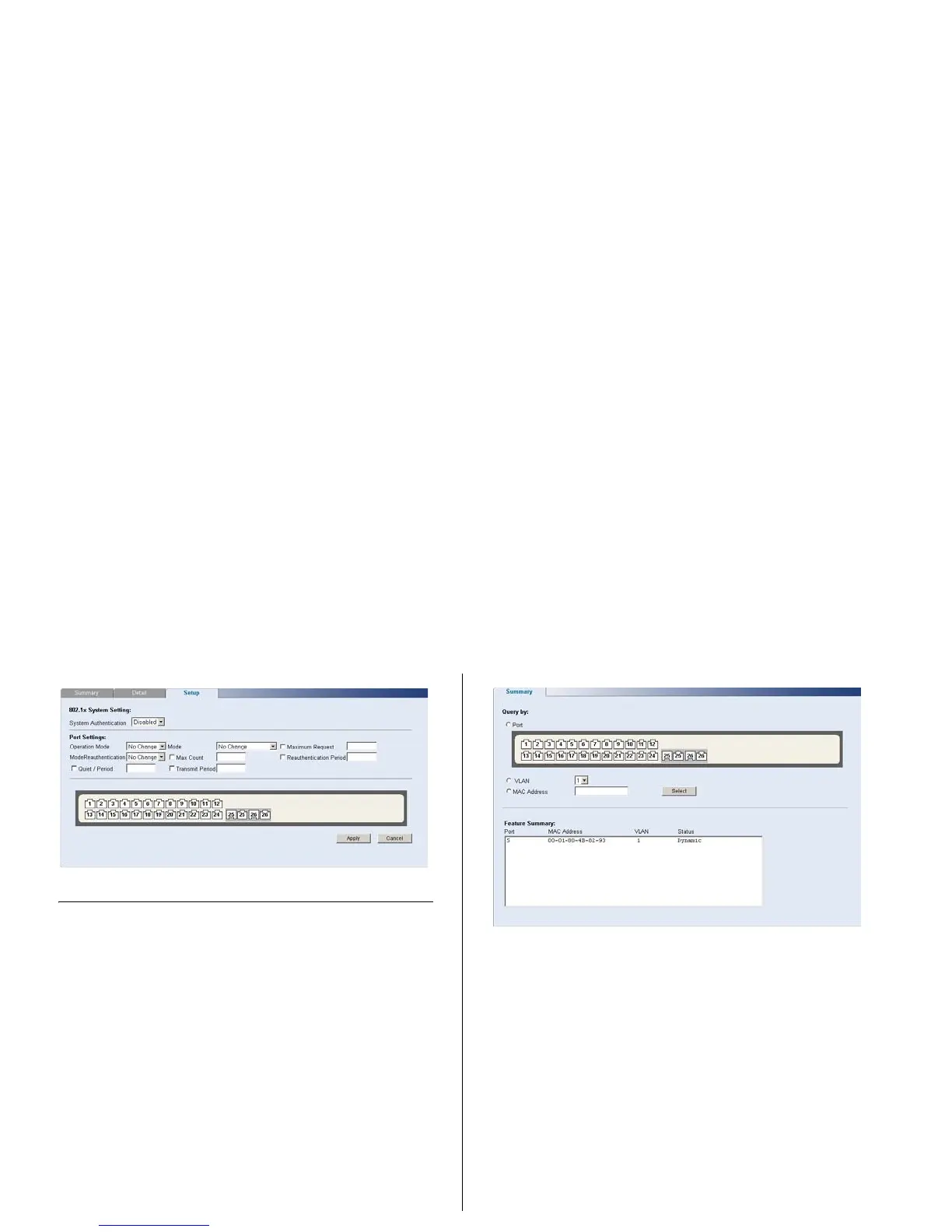

Figure 59 802.1X Setup Screen
Monitoring
Using the Web interface, you can display
address table information and cable
diagnostics.
The Monitoring menu includes two items:
■ Address Table
■ Cable Diagnostics
Address Table
Use the Address Table Summary screen to
display the Address Table information. You can
query by selecting a port, choosing a VLAN, or
entering in a MAC Address, then click Select.
Figure 60 Address Table Screen
Cable Diagnostics
The Switch provides cable diagnostic, which
helps you detect and resolve issues with the
attached cables.
The Cable Diagnostics menu includes two tabs:
■ Summary
■ Diagnostics
