3Com Baseline Switch 2900 Series User Manual

4-4
Step3 Click OK after selecting a serial port. The following dialog box appears. Set Bits per second to 38400,
Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None.

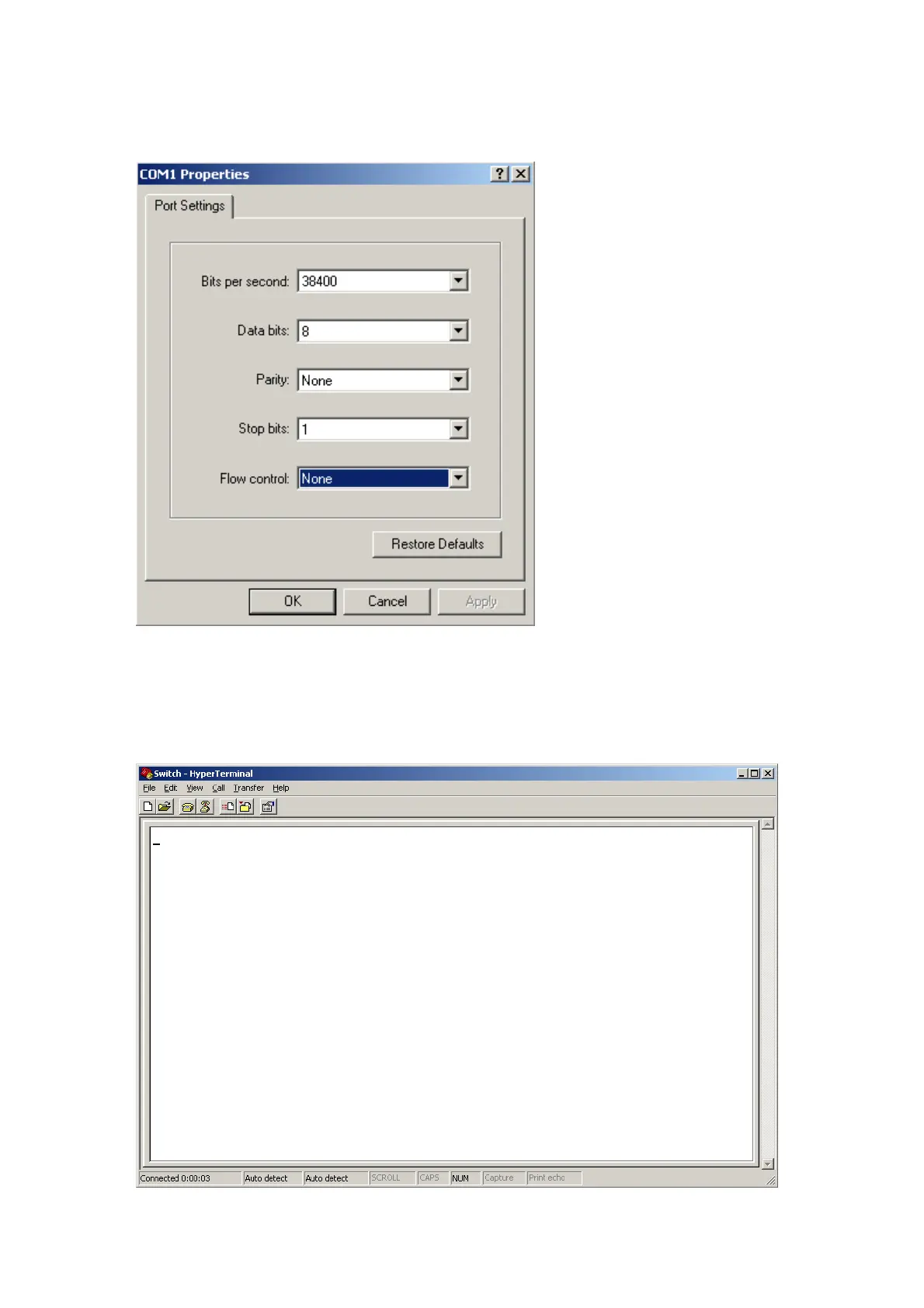

Figure 4-5 Set the serial port parameters
Step4 Click OK after setting the serial port parameters and the system enters the HyperTerminal window
shown below.
Figure 4-6 HyperTerminal window
