4-5
Step5 Click Properties in the HyperTerminal window to enter the Switch Properties dialog box. Click the
Settings tab, set the emulation to VT100, and then click OK.

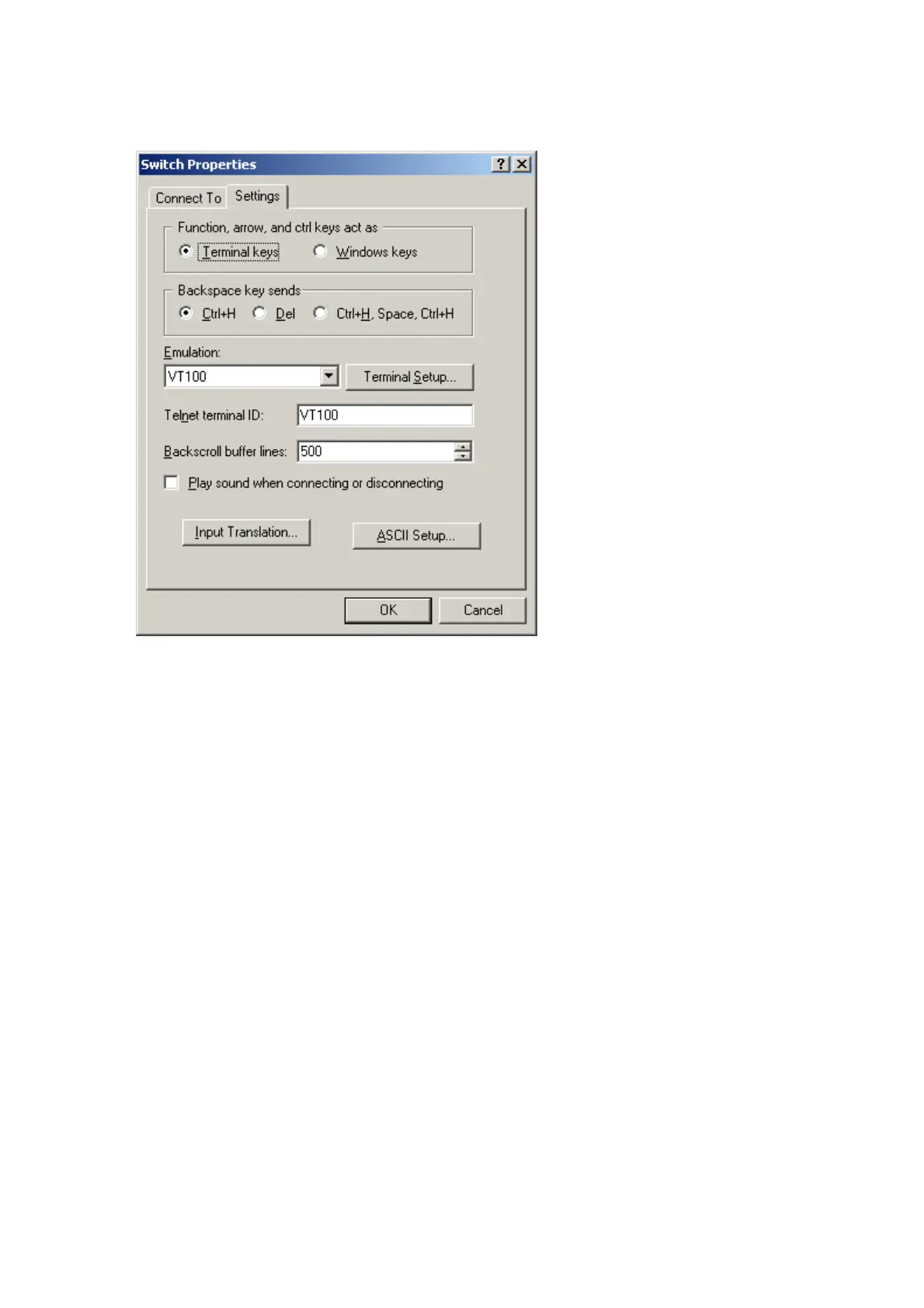

Figure 4-7 Set terminal emulation in Switch Properties dialog box
Booting the Switch
Checking Before Power-On
Before powering on the switch, verify that:
z The power cable is properly connected.
z The power supply voltage meets the requirement of the switch.
z The console cable is properly connected; the terminal or PC used for configuration has been
started; and the configuration parameters have been set.
Powering On the Switch
The 3Com Baseline Switch 2900 Family have the same Boot ROM display style. This document uses
the Boot ROM output information on the 3Com Baseline Switch 2928-SFP Plus as an example:
Starting......
************************************************************************
* *
* 3COM 2928-SFP Plus BOOTROM, Version 102 *
* *
************************************************************************
Creation Date : Jan 8 2009
CPU Type : ARM926
CPU L1 Cache : 32KB
