3M™ AT9000 MK2 Full Page Reader User Guide Maintenance
Adjusting the document clip height
You can adjust the default height of the document clip to better accommodate your documents. The
default height is controlled by a small set screw (1/8-inch). At the factory the clip is set such that a single
sheet of paper (approx. 0.004 inches) will freely slide under the clip, whereas an ID card (approx. 0.03
inches) will just make contact with the clip.
To adjust the document clip height:
1. Remove document hood, as described on page 24.
2. Lift and hold the document clip to its maximum height.

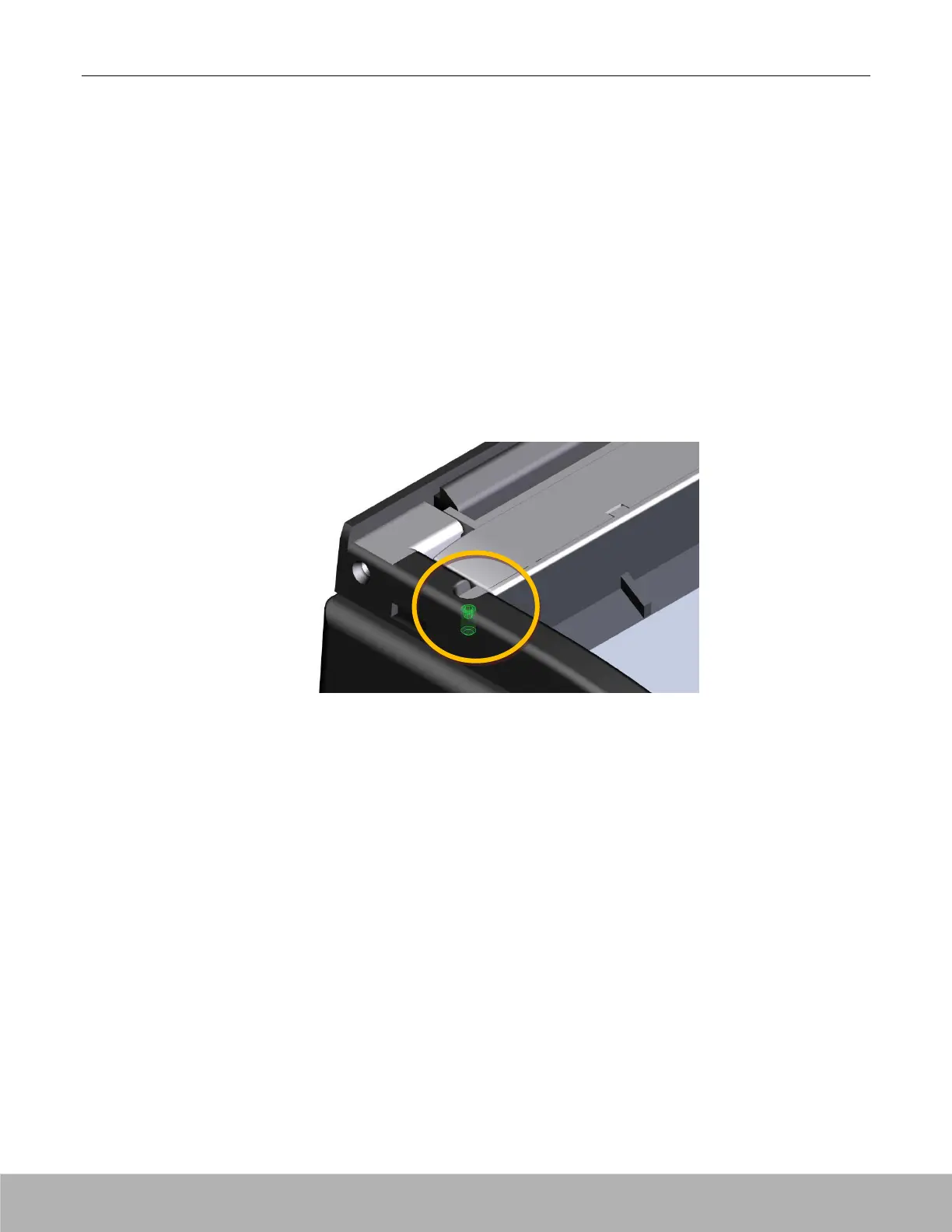

3. Using an 1/8-inch hex screwdriver, adjust the height of the set screw (located near the top-left
corner of the document glass):
Turn clockwise to lower the default height of the document clip
Turn counter-clockwise to raise the default height of the document clip
4. Release the document clip.
5. Re-attach the document hood. Ensure that the pin on the right of the hood is correctly seated
before pressing down on the tabs on the left of the hood.
Copyright 2018 IDScience Inc. Rev. 20180725
