3M™ AT9000 MK2 Full Page Reader User Guide Maintenance
A.

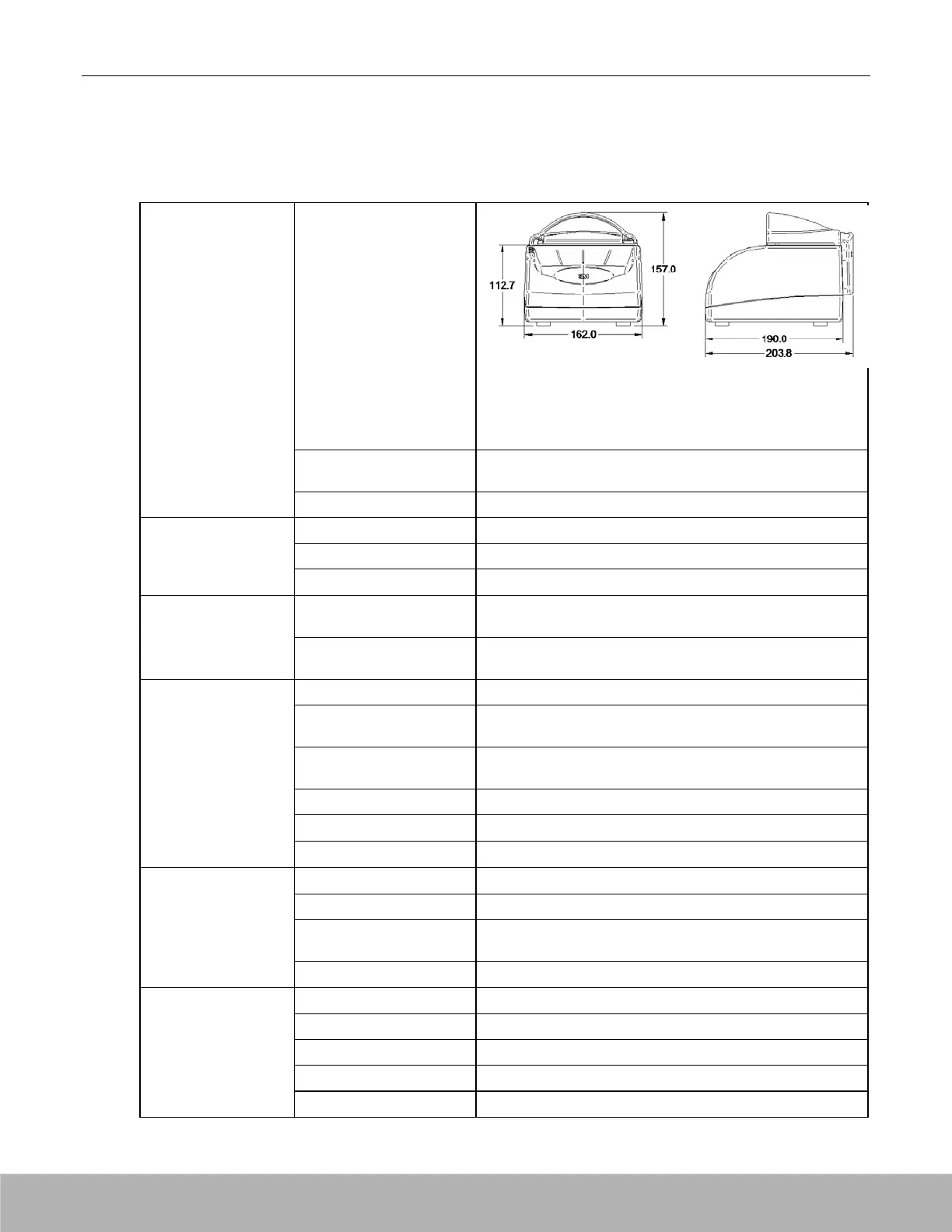

Specifications
Physical
Specifications
Dimensions
Length:
Without smartcard module: 19 cm (7.5 inches)
With smartcard module: 20 cm (8.0 inches)
Width: 16.2 cm (6.4 inches)
Height: 15.7 cm (6.2 inches)
Imaging Window 125 x 88 mm (4.92 x 3.47”)
4.0 mm (0.157") tempered glass *
Weight 1.25 kg (44 ounces)
Electrical
Specifications
Input voltage 5 V DC, from external power supply or USB 2.0 host port
Power consumption Less than 2.5W (USB 2.0 powered)
Connector 3-pin locking
Environmental
Specifications
Temperature Operating: 0°C to 40°C (32°F to 104°F)
Storage: –20°C to 50°C (–4°F to 122°F)
Humidity Operating: 20% to 80% (non-condensing)
Storage: 5% to 95% (non-condensing)
Communication
Interfaces and
Protocols
Interface USB 2.0, 480 Mbit/s “High Speed”
Host USB Power Reader can be powered from a single host USB 2.0
connector
USB connectors One USB Type-B connector (host)
Two USB Type-A connectors (peripherals)
USB cable length 2.00 m (79 inches)
Aux. USB power 5V DC, 500mA per port (with external power supply only)
RF Chip ISO 14443-2, 3, 4 Type A and B with PC/SC driver
Optional Power
Supply Specifications
Input voltage 100V to 240V AC +/-10%
Line frequency 47 Hz to 63 Hz
Cable length Power supply cable: 1.3 m (52 inches)
AC line cord: 2.0 m (78 inches)
Power rating 15W
Smart Card
Communication
Interfaces and
Protocols
Protocol T=1, T=0
Frequency Up to 8 MHz (PPS, DI parameter)
Communication speed Up to 344,105 bit/s (PPS, Fl parameter)
ISO Support 7816 Class A and AB
Contact Sliding contact
Copyright 2018 IDScience Inc. Rev. 20180725
