3M™ AT9000 MK2 Full Page Reader User Guide Introduction
Reader components
The 3M™ AT9000 MK2 Full Page Reader is a small desktop device with:
• A window for scanning documents
• Device status and activity lights
•
Back panel ports for communication, power, and security
• Removable document hood and adjustable clip to allow for scanning of oversized documents
• Optional 5 volt power supply
•
Optional rear-mounted smartcard reader
•
Optional rear-mounted magnetic strip reader
Depending on your model, various configurations or components may be available.

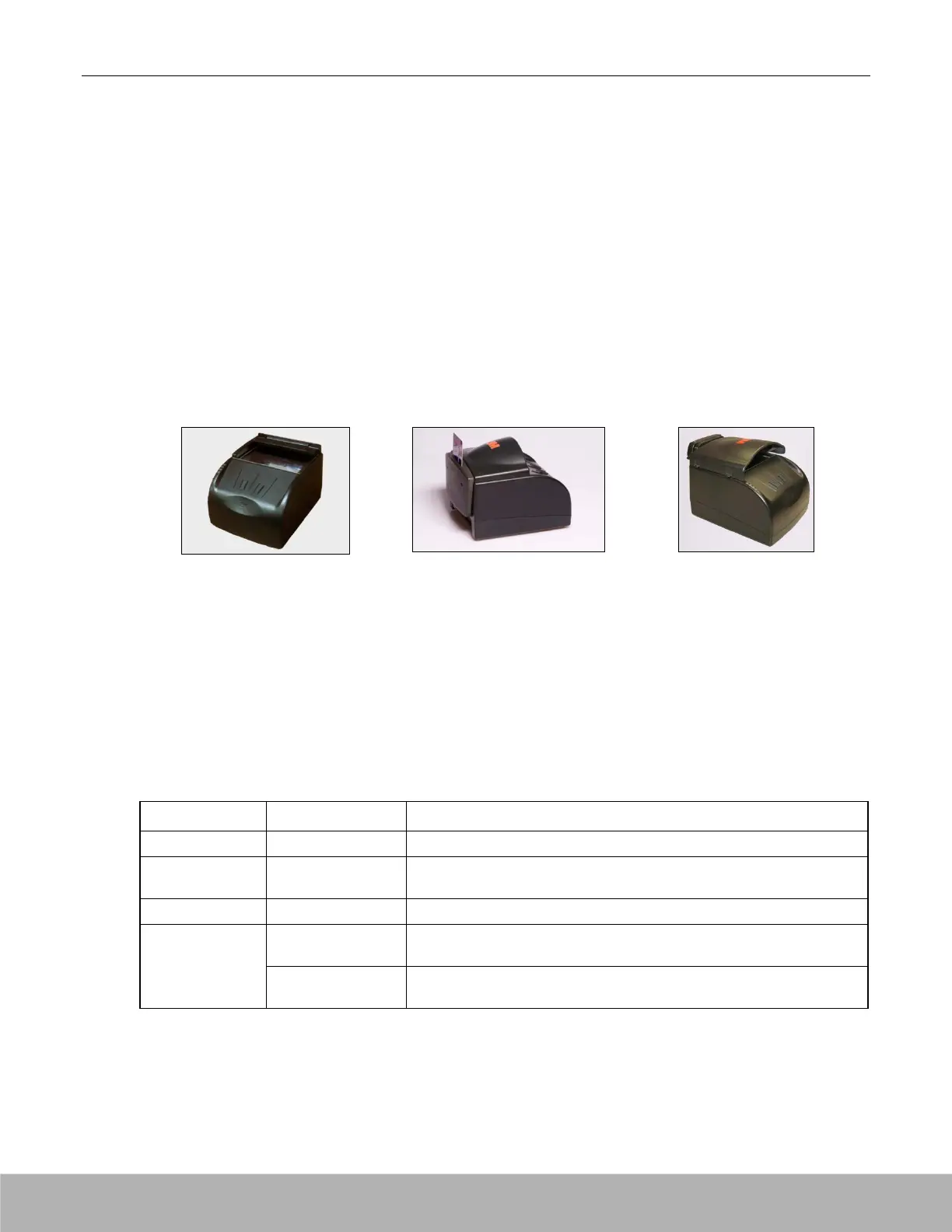

AT9000 MK2 Full Page Reader
without removable document hood
AT9000 MK2 Full Page Reader
with optional smartcard reader and
optional fixed hood
AT9000 MK2 Full Page Reader
with optional magnetic stripe reader and
removable document hood
Document window
The document window is a glass surface located on top of the reader. Place documents on the window to
scan them. The reader will automatically detect when a document is placed on it.
Keep this surface clean to ensure optimum operation of the reader. See “Cleaning the reader” on page
34.
Indicator lights
The indicator lights show the reader status and scan results.
Light Color Description
Error Red Document is of an unknown type or did not process properly.
OK Green A known document type was presented and processing was
successful.
Busy Yellow Reader is scanning a document and processing the data.
Ready Blue Reader is ready to scan a document (when connected to the host
application).
Flashing Blue USB cable is not connected (only present if optional power supply is
used)
