3M™ Dual-Touch Chassis Displays User Guide 13
3M Touch Systems, Inc. Proprietary Information – TSD-42846A
Connecting the Display

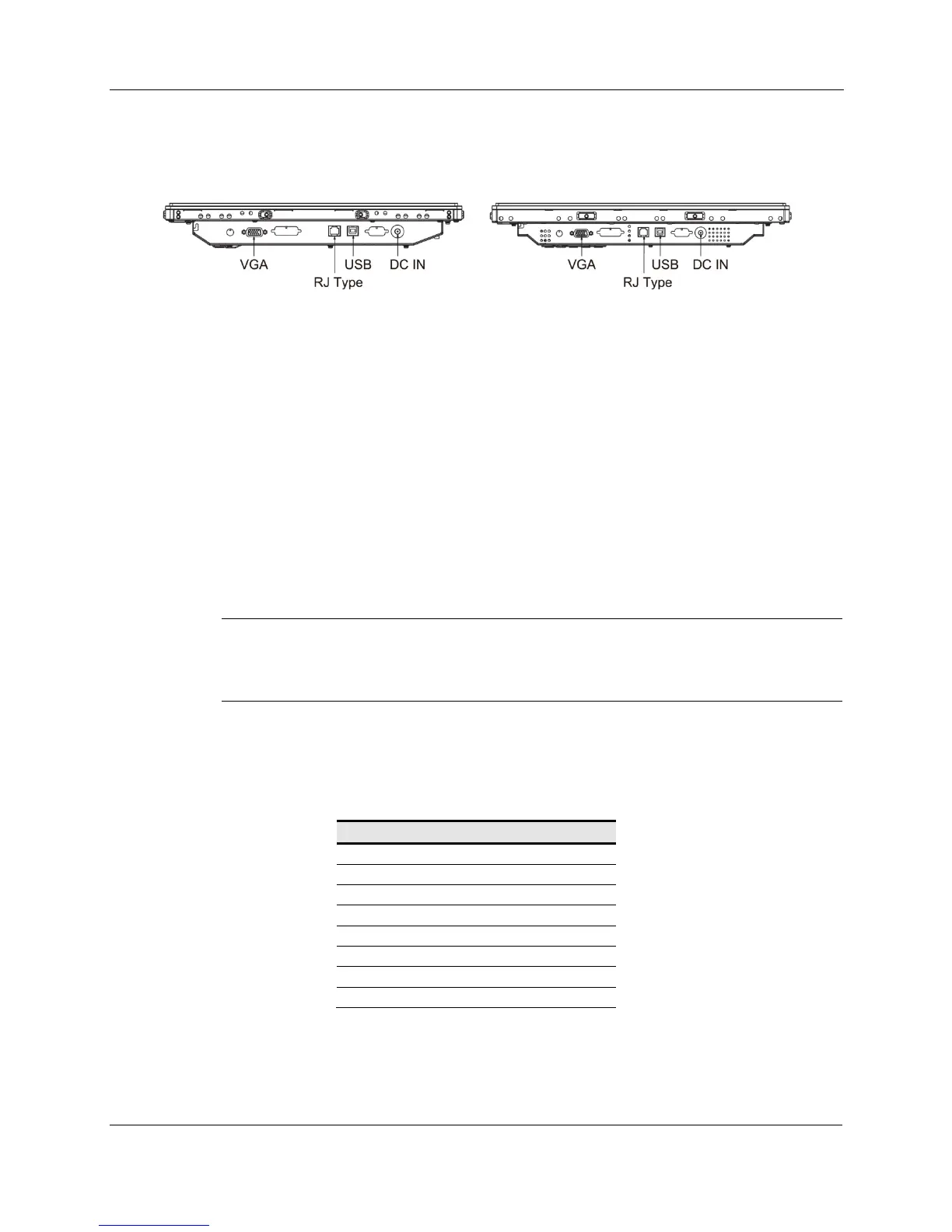

To setup this display, please refer to the following figures and procedures.
C1510PS C1710PS & C1910PS
• Be sure all equipment is turned off.
• Connect the DC adapter to the power connector (DC IN) on the monitor and the other
end into an electrical outlet.
• Connect the D-SUB cable from the display’s VGA input connector to the D-SUB
connector of your host computer and tighten the screws.
• Connect the USB cable from the USB port of your display to the USB port of your
computer.
• Configure the touch screen. Refer to the “Touch Screen Driver Installation” section.
• Once the touch screen is configured, the monitor is ready for use.
• Connect the remote control cable to RJ-type port (optional). Don't connect telephone
or internet cable to RJ-type port. Adapter rating is 12Vdc 3A minimum, marked with
LPS.
Notice: To ensure the LCD display works well with your computer, please configure
the display mode of your graphics card to make it less than or equal to 1024 x 768 (for
15”) or 1280 x 1024 (for 17” and 19”) resolution and make sure the timing of the display
mode is compatible with the LCD display.
Supported Video Display Modes and Refresh Rates
Your video card should support one of the display modes specified below. If you select
an unsupported video mode, the display may stop working or display unsatisfactory
picture quality.
Display Mode Refresh Rate (Hz)
640 x 480 60, 66, 72, 75
720 x 400 70
800 x 600 56, 60, 72, 75
832 x 624 75
1024 x 768 60, 70, 75
1152 x 864 75
1280 x 960 60
1280 x 1024 60, 75
