3M c960 Installation Instructions

8
Connecting the Auxiliary Intercom (Optional)
*Note
The base station must be turned off to enable operation/use of the auxiliary intercom.
1. Connect the auxiliary intercom to the “TO AUXILIARY INTERCOM” terminals on the interconnect module
as shown in Figure 8 through Figure 10 (depending on the model of intercom used).
The presence alert shown is wired to operate only when the Wireless Base Station is turned off.
If a separate outside microphone is used, the auxiliary intercom must be configured for OUTSIDE MIC. Refer
to the Auxiliary Intercom Installation Instructions for information about moving any internal jumpers.

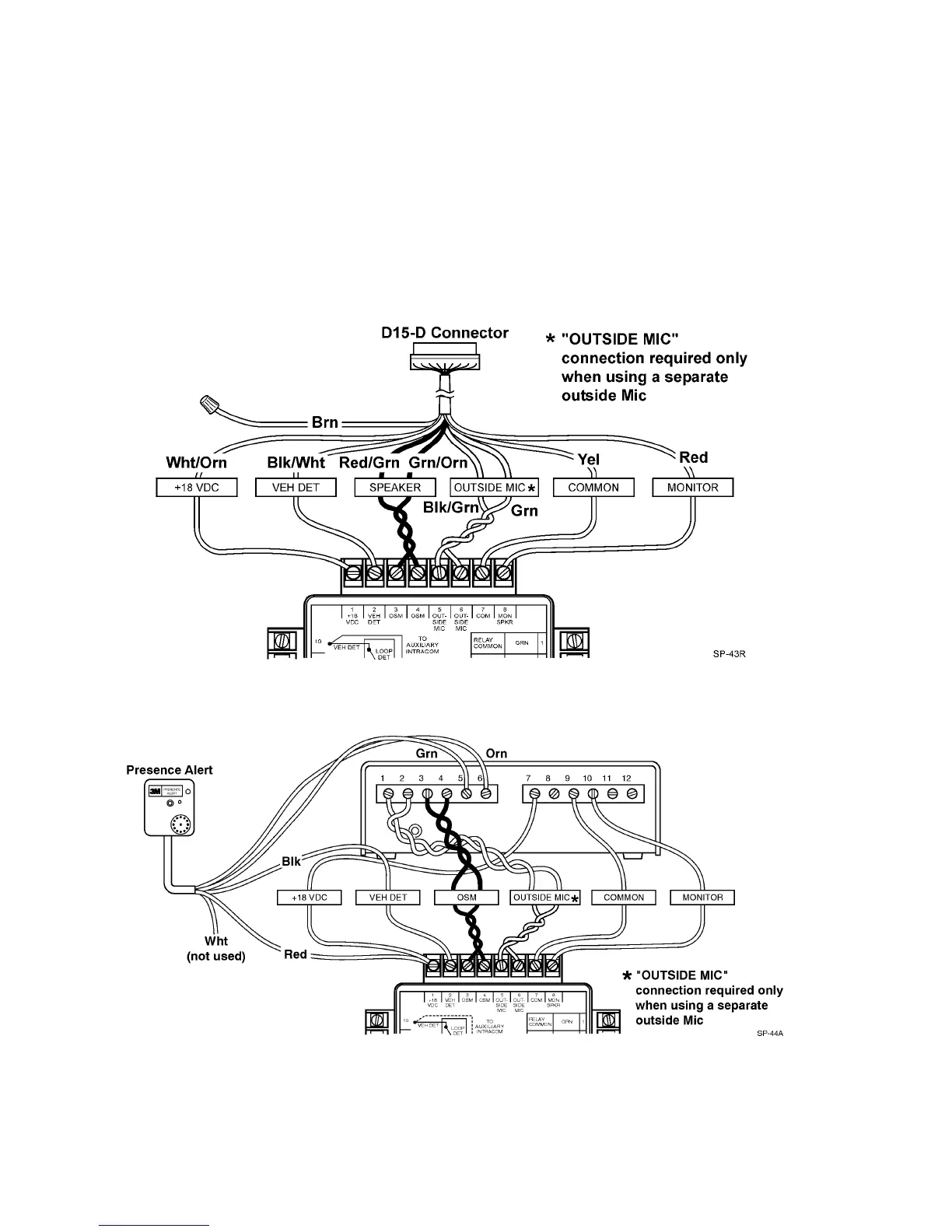

Figure 8. D–15D (M478 DA) Connections
Figure 9. D–15B and D–15C (M478 BA and CA) Connections
