ABOUT THIS MANUAL

There are two basic models included in the 3M

™

Dynatel

™

Locator

2200M Series. The 2250M locator is designed for cable/pipe locating.

The 2273M unit is designed for cable/pipe and fault locating. The iD

option (read/write capability to 3M

™

iD Markers 1400 Series) is available

for both models. This instruction manual will include all features. All

instructions are applicable to both products, unless noted.

In order to demonstrate all available functions, the illustrations depict the

2273M-iD unit. The 2250M-iD locator may vary from the illustrations

shown.

QUICK START

Battery Installation

Transmitter

Press and hold OFF [T-1] to manually test the batteries. The display and

audio will indicate one of the following levels: (OK w/solid tone = good;

LO w/beeping tone = low; “--” w/no tone = replace)

Receiver

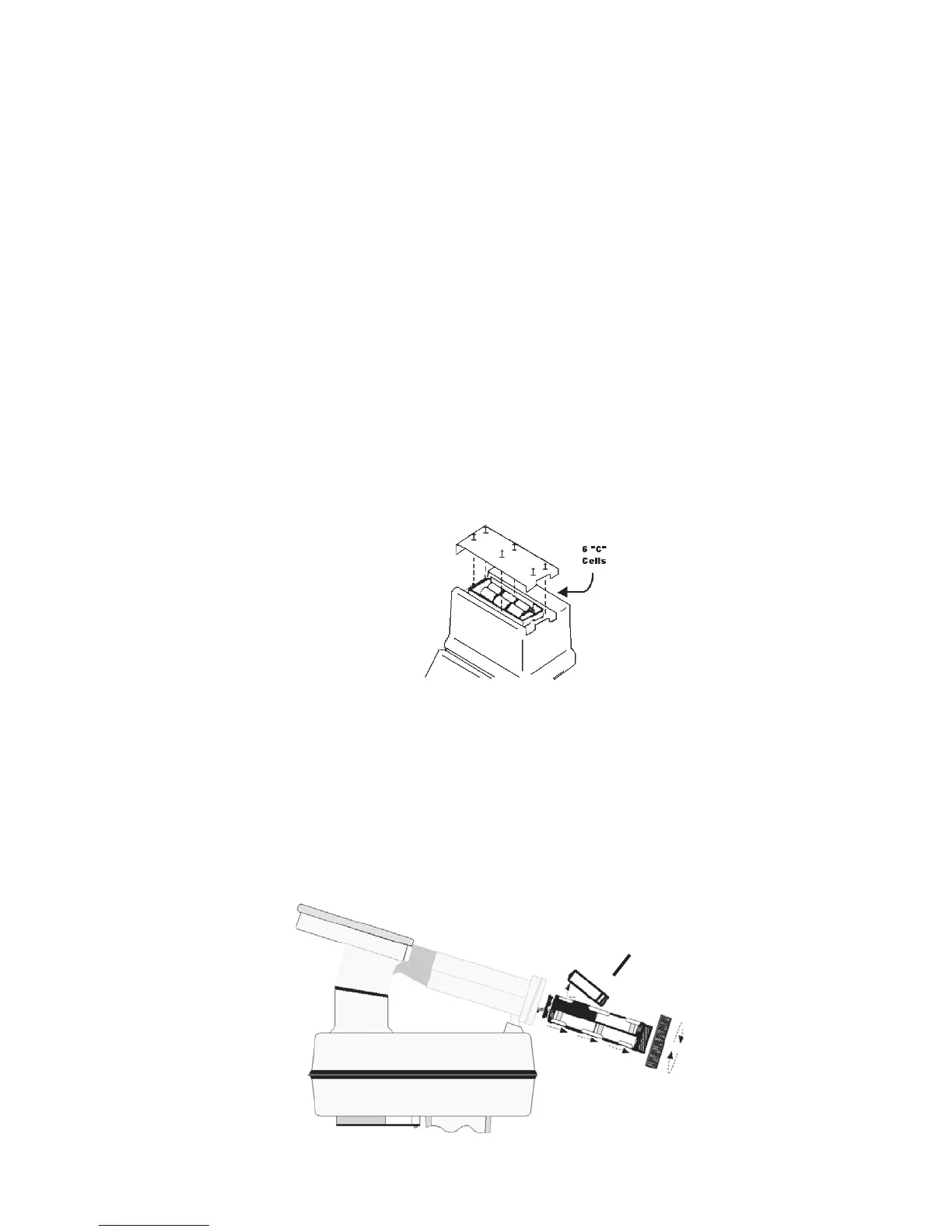

6 'C'

cells

8 'AA'

cells
