45
If the marker is a passive marker (rather than iD) the receiver will display
“No iD Marker Found”. The GPS coordinates of the attempt to read the
non-iD marker are stored in the Read Marker History as serial number #
0000-0000-0000. The marker details will indicate “not an iD marker”, but
will display the GPS coordinates.
Sending iD Data to GPS (Capture-Transmit Mode / Mode 2)
Menu [SK] + Setup [SK] + More>> [SK] + More>> [SK] + Com
[SK Toggle] + GIS
Receivers that have marker locating capability (indicated by ‘iD’ in the
model number) can be configured to send 3M
™
EMS
iD Marker data
directly to some GPS devices. When a marker is located and read, the
information read from the iD marker with feature and attribute data is sent
to the GPS device and is stamped with latitude, longitude and date/time
data. The data acquired during this logging process can be uploaded to GIS
mapping software. For more information and detailed instructions pertaining
to specific GPS units, refer to www.3M.com/dynatel GPS instruction sheet.
Reviewing Marker History
Read History
The data review Read history mode is a historical file of all information that
has been read from targeted markers (100 memory locations).
Menu [6] + Data/Templat [SK] + Read History [SK]

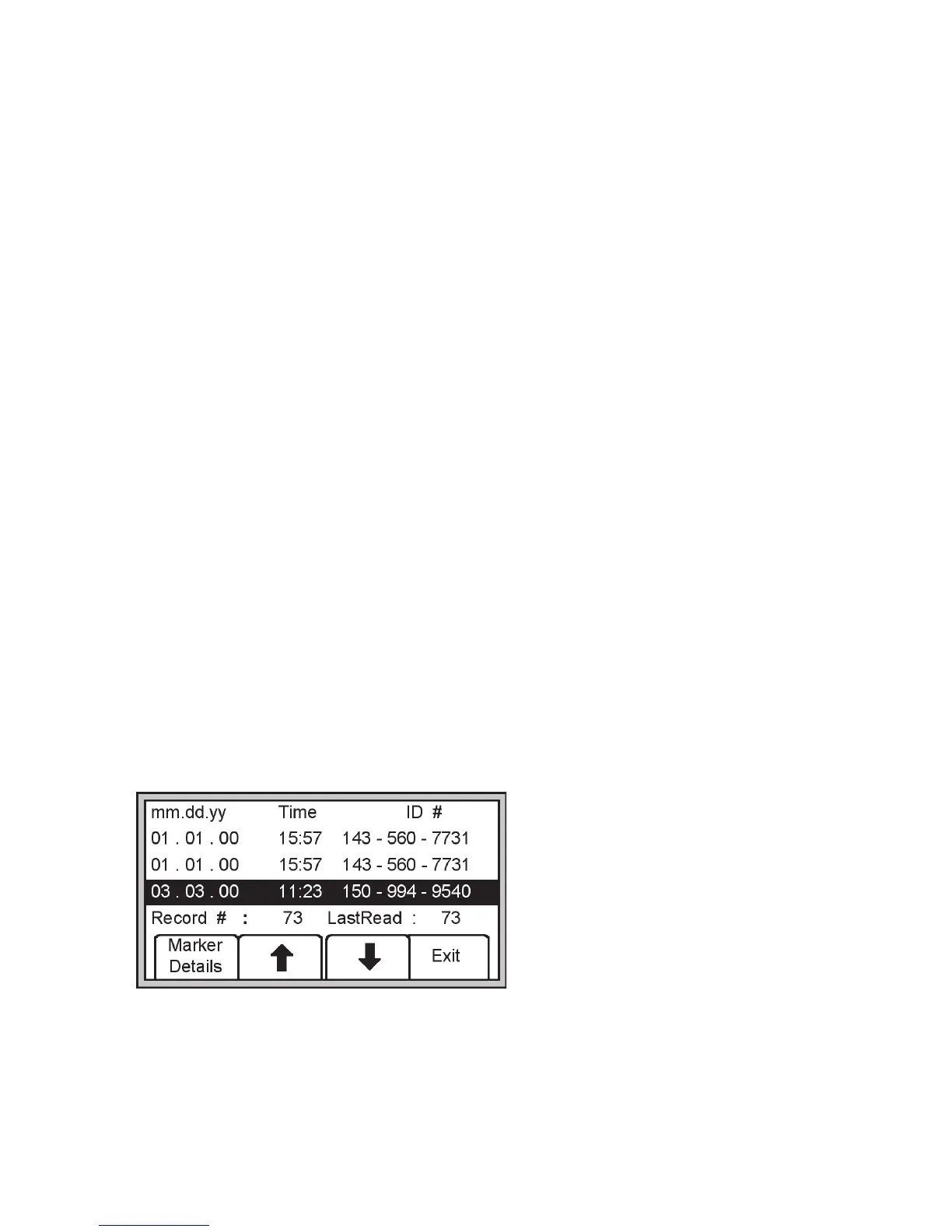

The Read History screen displays the date and time that each marker was
read, and its unique identification number.
Select the marker data to be viewed by pressing the up/down arrows [SK]
Press Marker Details [SK] to view all data that was retrieved from the marker.
