3M H10 User Manual

5
AC inlet
11
video port
10
audio port
(from a computer)
10
s-video port
10
component video - Y
10
component video - CB/PB
10
component video - CR/PR
10
audio R port
L port
(from a video equipment)
10
10
Power switch
14
rgb port
10
control port
10
Projector (Rear/Left)
Part Names (continued)
The Projector (continued)

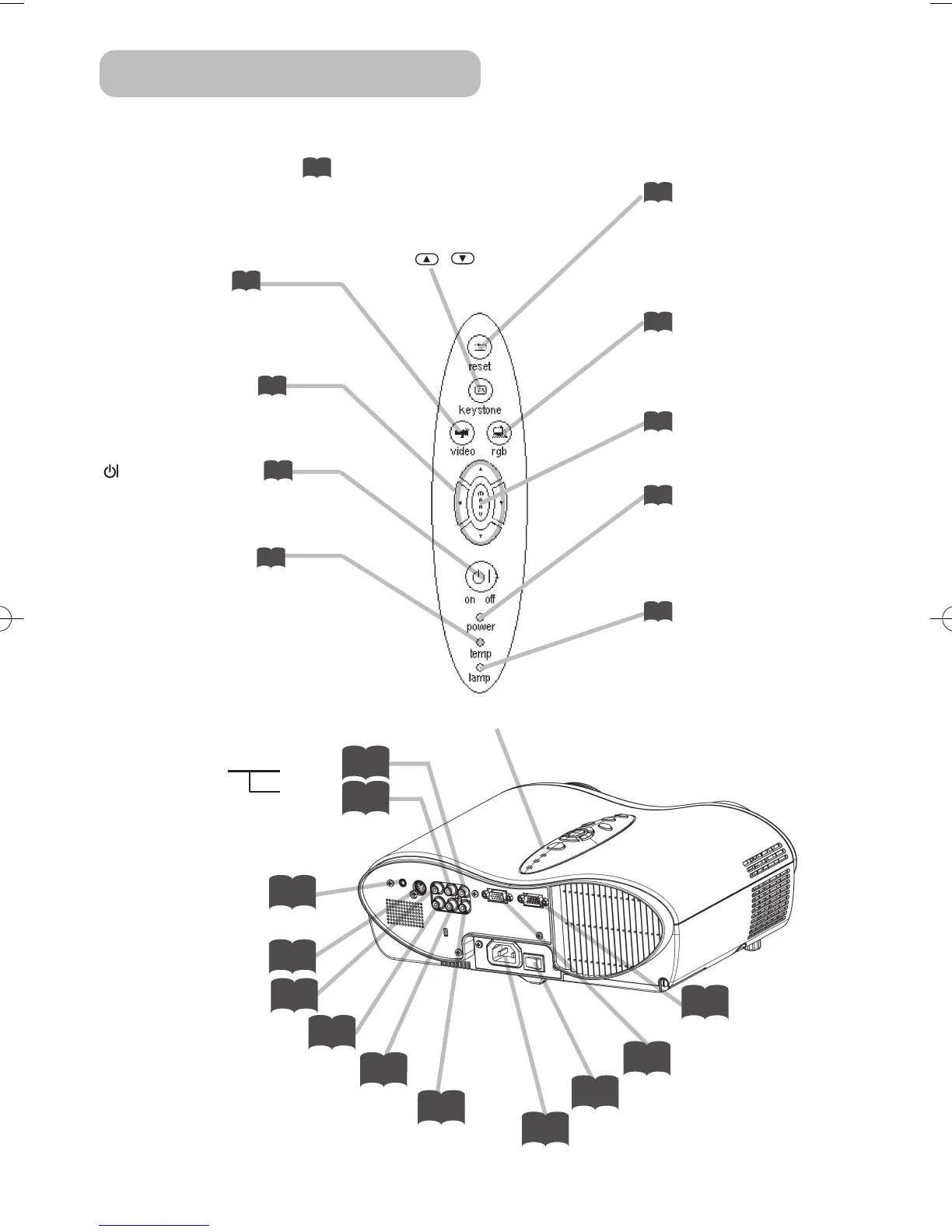

Control buttons
power indicator
tells the state of power
supply. Refer to the section
“Power ON/OFF”.
reset button
cancels the adjustment in
progress.
* The adjustments of the
volume etc. are not reset.
rgb button
selects the input signal of
rgb port.
menu button
opens/closes the menu.
on/off button
prepares for turning the power
on/off.
video button
toggles between the signal
ports of video, s-video and
component video.
keystone button
turns on/off the KEYSTONE mode.
In the KEYSTONE mode,
To adjust the keystone,
use the cursor
/
buttons.
temp indicator
lights or blinks when any
problem about internal
temperature has happened.
lamp indicator
lights or blinks when any
problem about the lamp
has happened.
cursor buttons
works for adjusting or menu
controlling.
15
22
14
14
19
22
15
22
39
39
01S10En03.10.12:17PMページ5
