Pg. 14
MOTION
MOTION
DET WINDOW
DET TONE
MDRECT FILL
SENSITIVITY
MOTION OSD
TEXT ALARM
SIGNAL OUT
EXIT JUMP
ON
____
____
5
OFF
OFF
ON
5
7
6
8
DET WINDOW
WINDOW USE
WINDOW ZONE
DET H-POS
DET V-POS
DET H-SIZE
DET V-SIZE
RETURN
0
ON
1
1
58
32

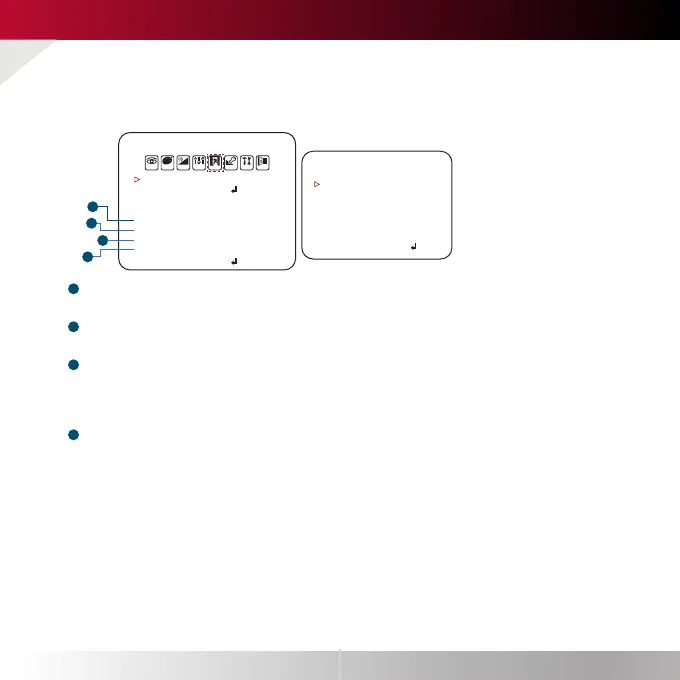

Motion Settings
5
SENSITIVITY
The smaller the movement you want to detect, the higher the sensitivity value must be.
6
MOTION OSD
MOTION ZONE display. MOTION OSD interoperable with ‘DET TONE’ and ‘MDRECT FILL’.
7
TEXT ALARM
Setup a text to appear on the screen when motion is detected explaining the alarm situation.
- WINDOW MOTION: Will appear when a motion alarm is detected.
- CAMERA MOVING : Will appear if the camera is shaken abruptly.
8
SIGNAL OUT (ON/OFF)
- ON : ‘HIGH’ SIGNAL OUT upon ALARM.
- OFF : ‘SIGNAL OUT’ o regardless of ALARM.
The camera can detect movement and display an alarm on the screen, when movement is detected.
EXPO MOTI PRIVRGB D&N FUNC SET EXIT
To Next Page
