Privacy Settings
- ZONE NUM : Select the zone number between 0~15.
- ZONE DISP : Zone display ON/OFF
- H-POS : Move the Zone position Left or right. The higher the number, the zone will move to the right.
- V-POS : Move the Zone position up or down. The higher the number, the zone will move down.
- H-SIZE : Reset the zone‘s size horizontally. The higher the number, the right side panel will
move further to the right.
- V-SIZE : Reset the zone’s size vertically.
The higher the number, the bottom side panel will move further down.
- Y LEVEL : The higher the number, the brighter the color will appear.
- CR LEVEL : The higher the number, the more red tone will be added to the zone’s color.
The lower the number, the more green will be added to the zone’s color.
- CB LEVEL : The higher the number, the more red tone will be added to the zone’s color.
The lower the number, the more red will be added to the zone’s color.
* High CB Level + High CR Level = Pink
* High CB Level + Low CR Level = Sky Blue
* Low CB Level + High CR Level = Orange
- TRANS : Set the mask’s transparency level from 0~3. The default value is 0.

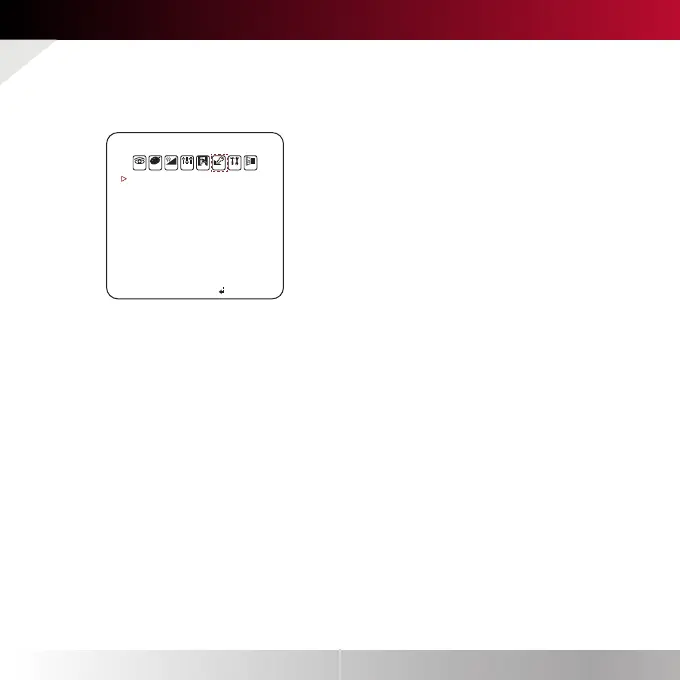

PRIVACY
PRIVACY
ZONE NUM
ZONE DISP
H-POS
V-POS
H-SIZE
V-SIZE
Y LEVEL
CB LEVEL
CR LEVEL
TRANS
EXIT JUMP
ON
0
ON
12
2
3
3
10
10
10
0
You can hide some parts of the screen for privacy masking. A total of 16 dierent privacy masking
zones are available. The cameras support square privacy masks or advanced polygon masks.
EXPO MOTI PRIVRGB D&N FUNC SET EXIT
