3xLogic VISIX Gen III Series Menu Guide

Pg. 13Pg. 12

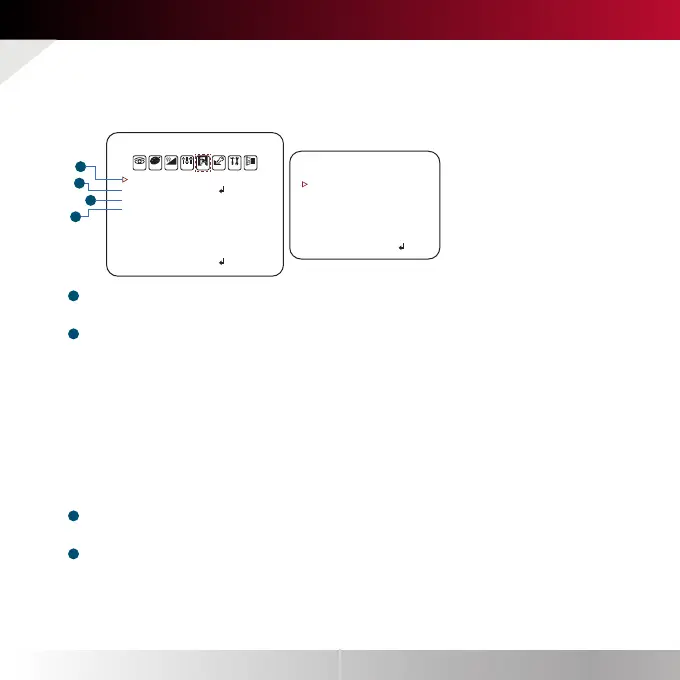

Motion Settings
1
MOTION
To use the motion detection settings, before Motion is ON.
2
DET WINDOW
- WINDOW USE : Select which one of the motion areas to enable.
- WINDOW ZONE : The camera supports up to 4 different masks. Select which ones to display.
- DET H-POS : Move the zone left or right.
The higher the number, the zone will move to the right.
- DET V-POS : Move the zone up or down.
The higher the number, the zone will move down.
- DET H-SIZE : Adjust the zone’s size horizontally.
The higher the number, the right side panel will move further to the right.
- DET V-SIZE : Reset the zone’s size vertically.
The higher the number, the bottom panel will move down.
3
DET TONE
Four each dierent motion tone color available.
4
MDRECT FILL
Color setting for operating motion zone.
MOTION
MOTION
DET WINDOW
DET TONE
MDRECT FILL
SENSITIVITY
MOTION OSD
TEXT ALARM
SIGNAL OUT
EXIT JUMP
ON
____
____
5
OFF
OFF
ON
1
3
2
4
DET WINDOW
WINDOW USE
WINDOW ZONE
DET H-POS
DET V-POS
DET H-SIZE
DET V-SIZE
RETURN
0
ON
1
1
58
32
The camera can detect movement and display an alarm on the screen, when movement is detected.
