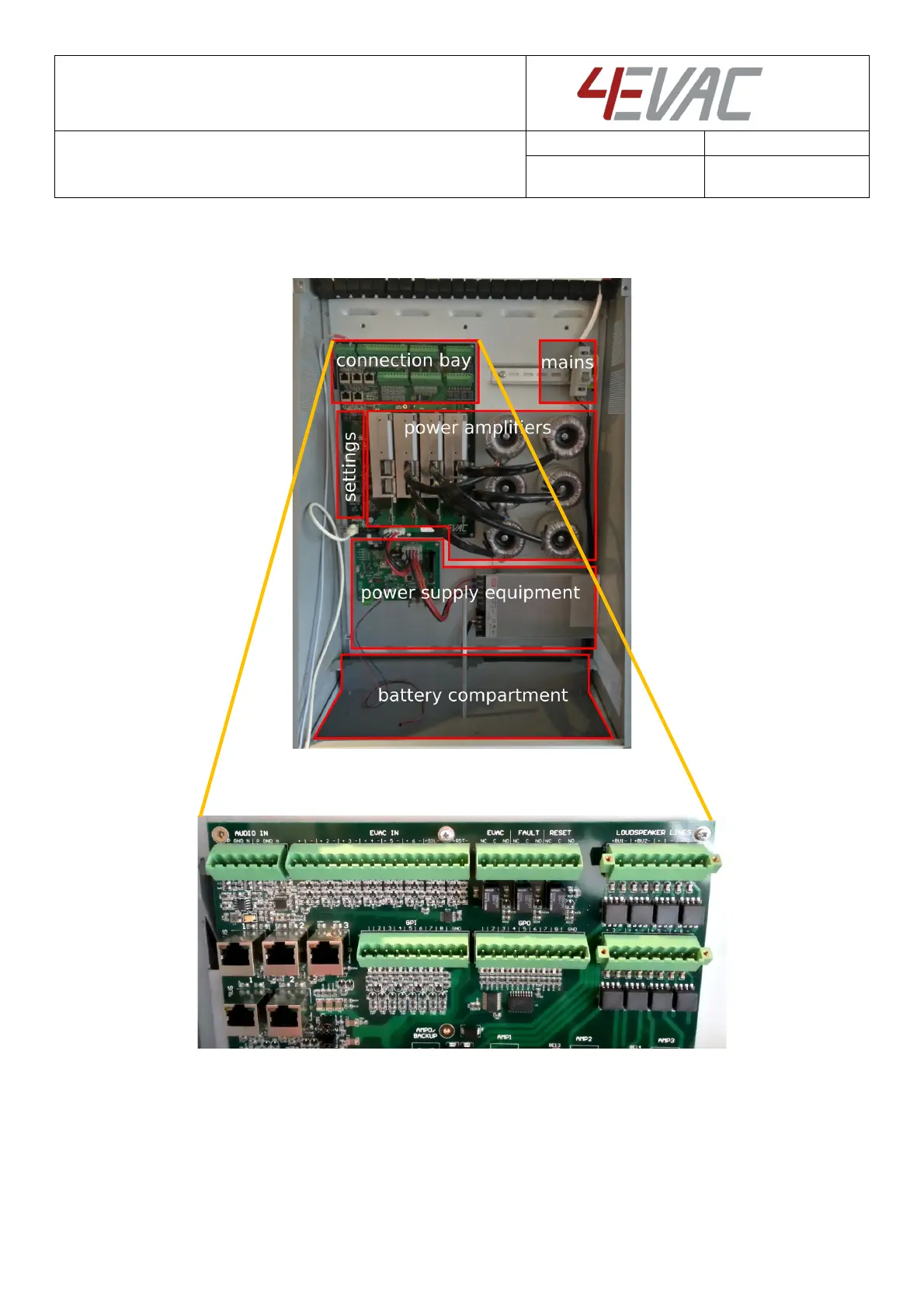

After opening the Compact 500, you should see following functional sections, as shown on the picture
below:
Compact 500 – inside main unit
Compact 500 - connection bay
