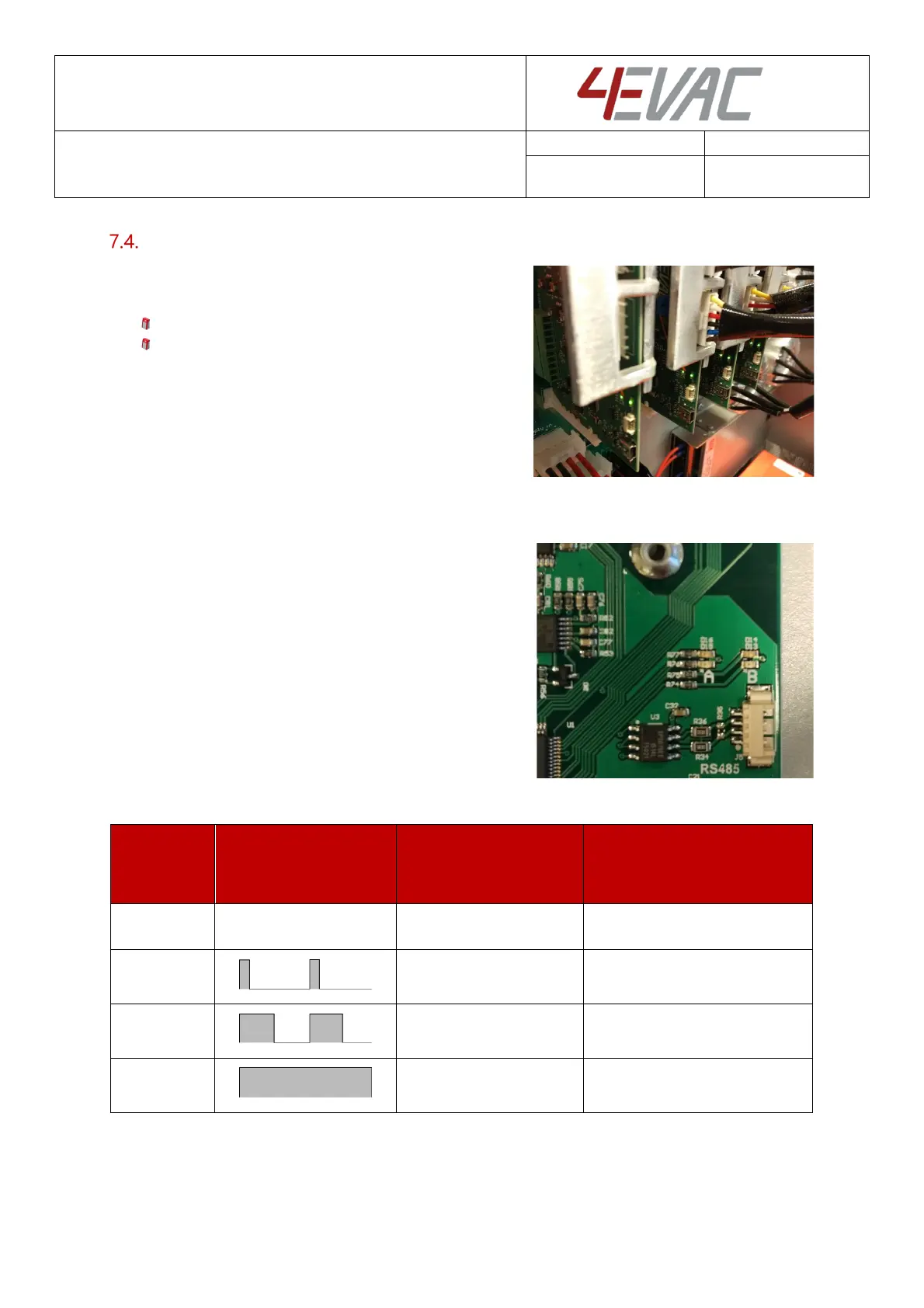

Amplifier unit indications
Each amplifier unit has LED indicators onboard. There are 2
indicators per channel:
GREEN LED: amplifier power-on/fault status;
RED LED: impedance measurement
You can identify the status of every channel and line according
to the table below:
Visual blinking
sequence
GREEN
(amplifier status)
RED
(impedance measurement)
OFF
- Sleep mode Not calibrated
Blink (
short
)
- Calibrated – impedance OK
Blink slow
Amp fault Impedance high (line open)
ON
Running Impedance low (line short)
LED indicators on amplifier units
