EAP760 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
6

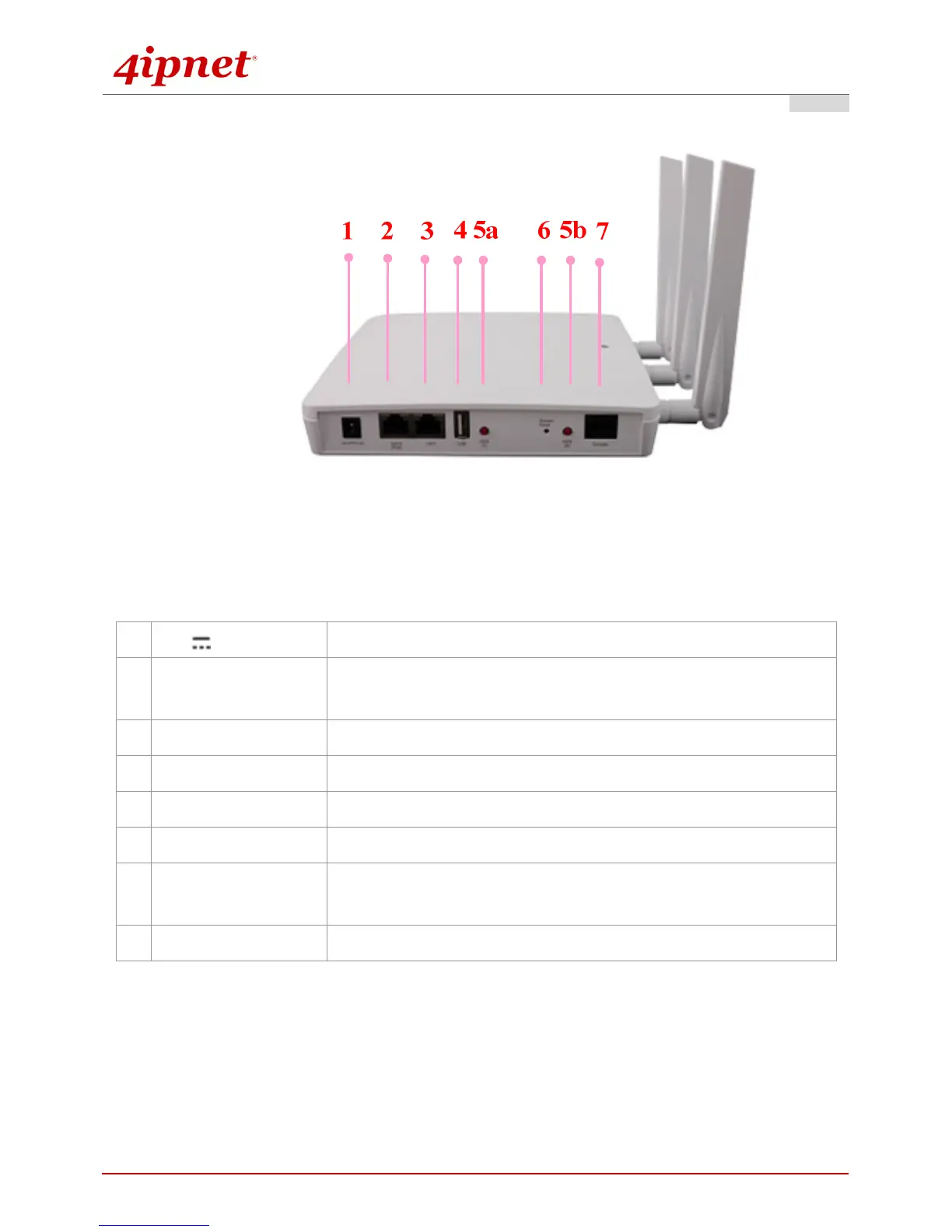

EAP760 Back View
1
12V 2.5 A
Attach power adaptor here
2
Uplink (PoE) Port
Offers uplink connection. This port can be used to connect to a controller,
gateway, or directly to the Internet. 802.3at PoE is also supported
3
LAN 1 Port
The ports for connections with LAN side devices
4
USB Port
USB interface reserved for future use
5a
WES Button (A)
For IT administrators to easily setup WDS links with the RF card (A).
5b
WES Button (B)
For IT administrators to easily setup WDS links with the RF card (B).
6
Restart / Reset
Press once to restart the system; to reset the system to factory default
settings, hold for more than 5 seconds.
7
Console Port
To access EAP760 via the console interface.
