System Overview

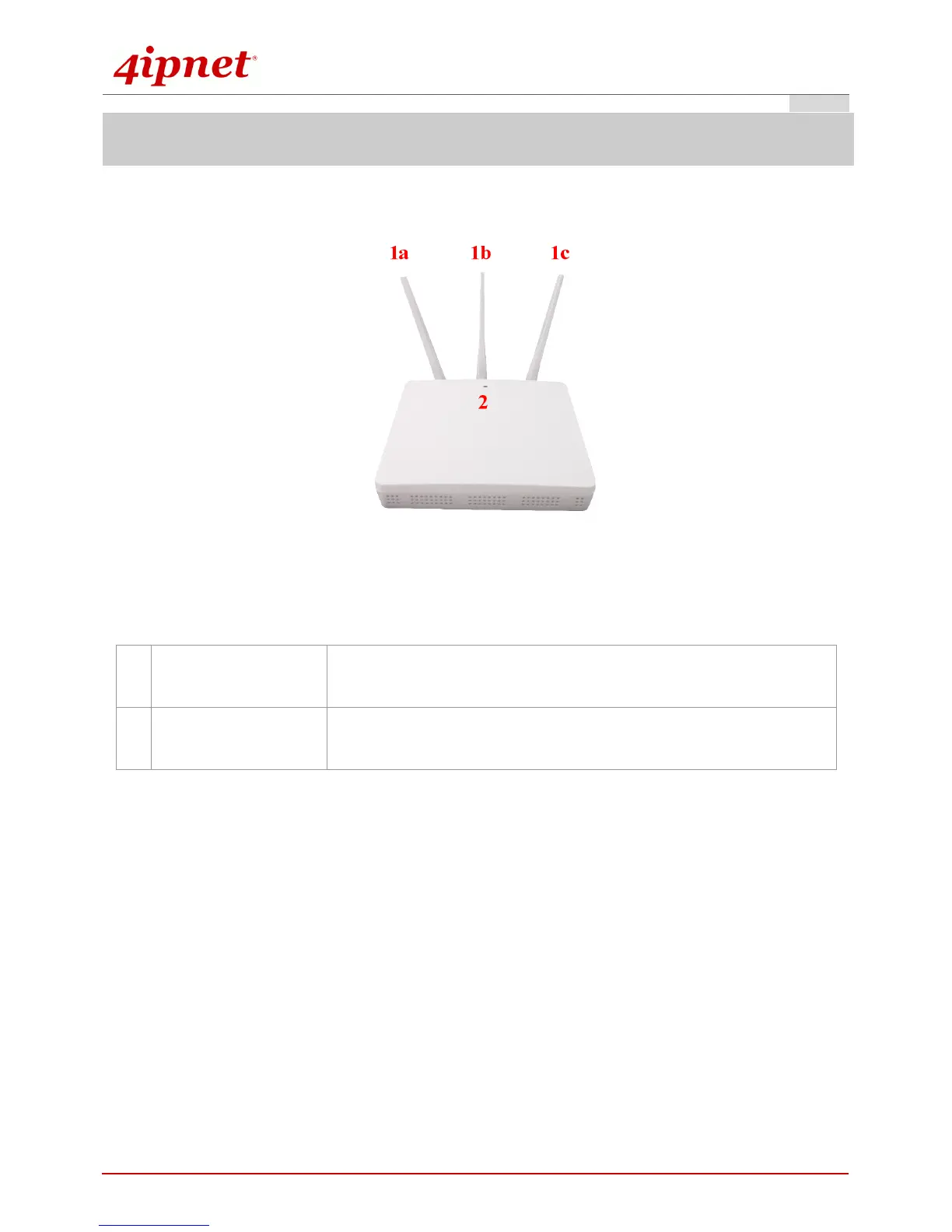

EAP760 Front View
1
External Antenna
External antennas via SMA
connectors. 1a, 1b and 1c corresponds to
Ant1, Ant2 and Ant3 of the system.
2
LED Indicator
An LED indicator is available to show the AP’s operation status. Green
indicates power on, and orange indicates WES’ status.
