4IPNET OWL630 - System Overview

Quick Installation Guide
OWL630 Enterprise Access Point ENGLISH
Copyright © 4IPNET, INC. All rights reserved.
2

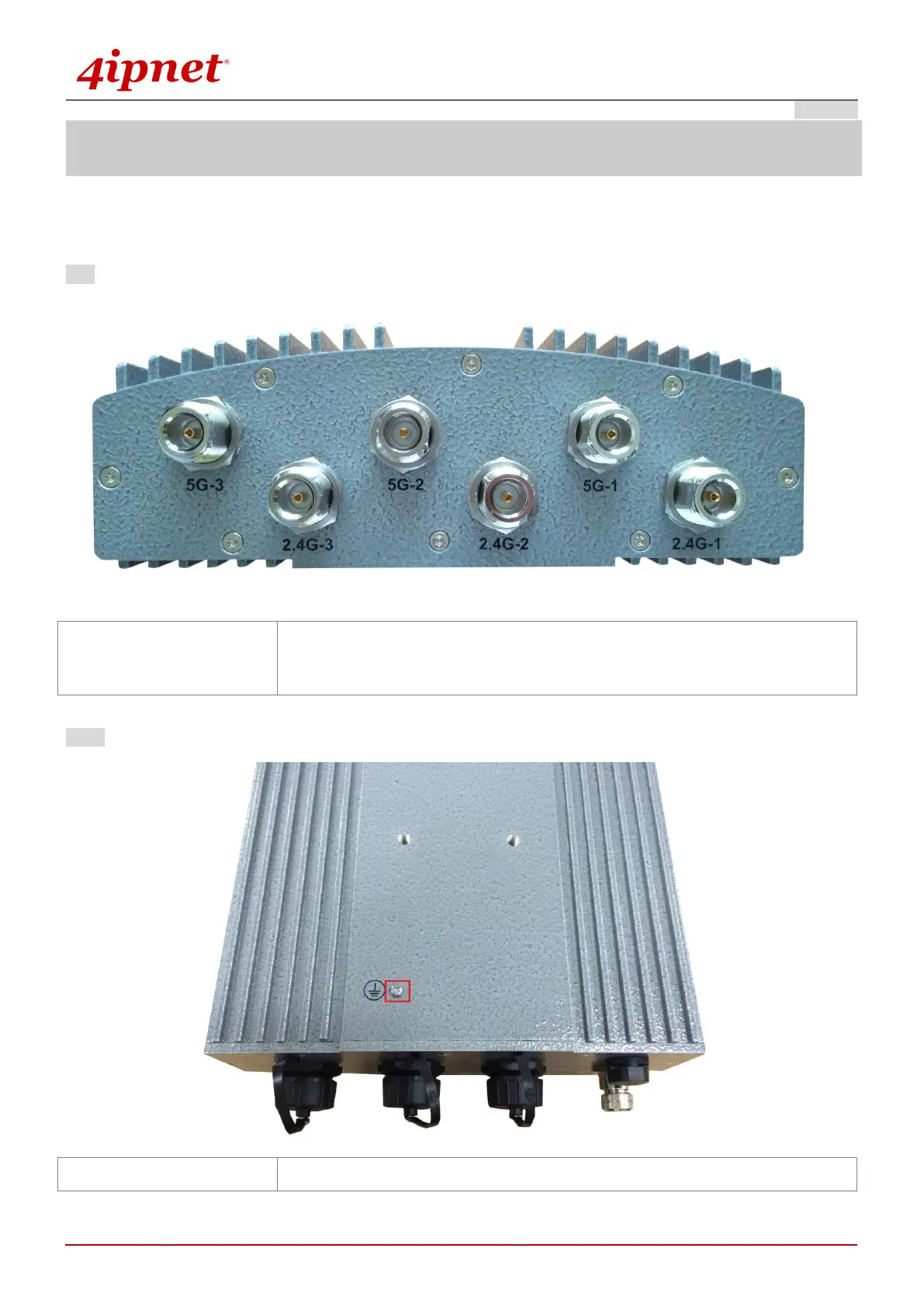

System Overview
OWL630
Top
Back
N-type Connector x 6
For connecting to an antenna (RF Card A x 3, RF Card B x 3)
Connector marked –1 is for the primary antenna when the AP is not in 802.11n
or 802.11ac mode. Utilize all connectors for optimized MIMO performance.
Ground Connector
For connecting the ground wire
