A/DA APP-1 - Power Supply

5

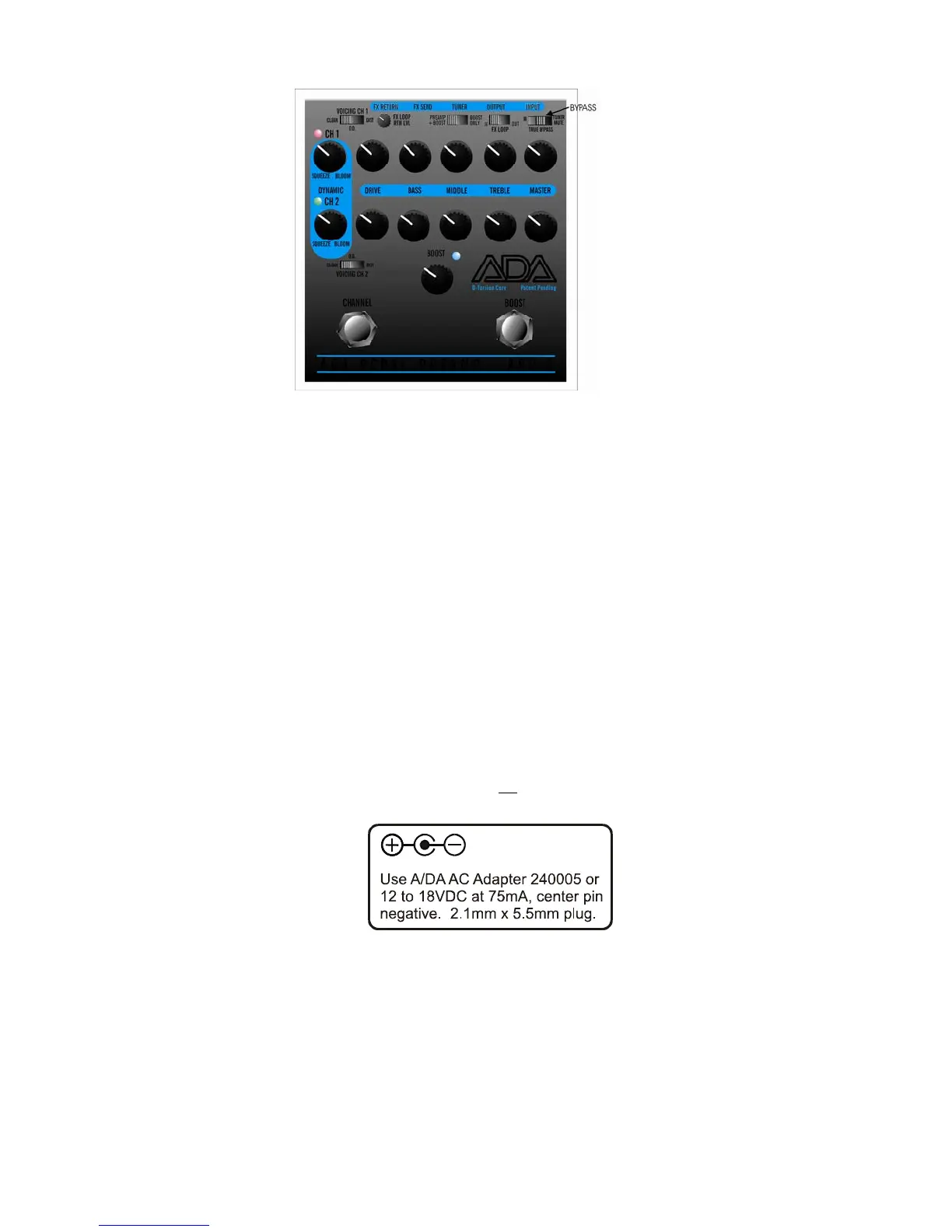

FIGURE 1
Startwiththissetup!
6
Power Supply
Plugintheincluded12VDCto18VDCACadapter(A/DApartnumber
240005)ora12Vto18V(75ma)sourcefromyourpedalboardpower
supplytotherearpanelpowerjack.

Notethattheconnectorisa2.1mmwiththecenterpinnegative,the
mostcommonconfigurationforeffects
pedals.Thereisno9V
batteryintheAPP‐1,andtheAPP‐1willnot
workwitha9VDCpower
supply.

= NEGATIVE
