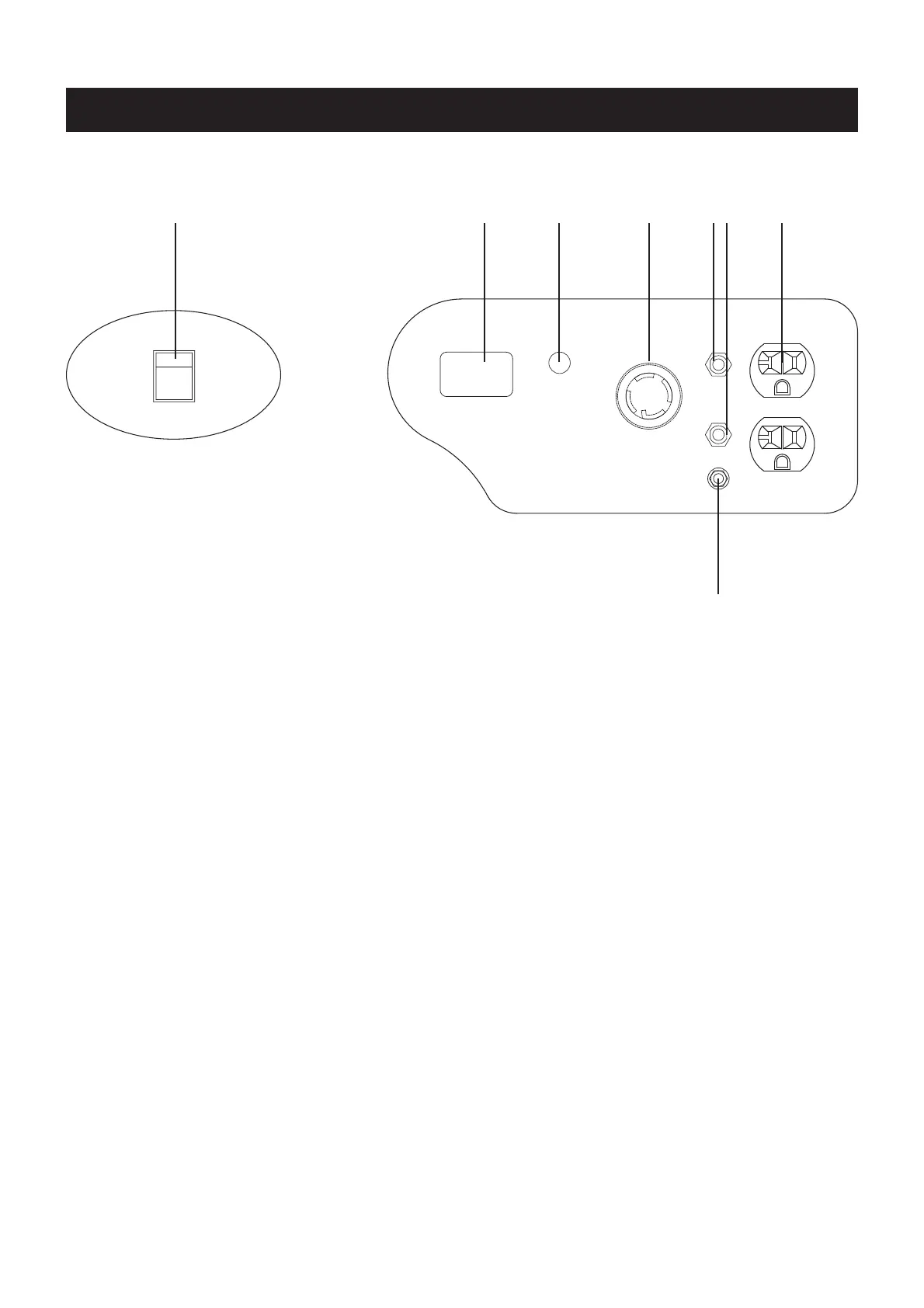

CONTROL PANEL FEATURES
1. Engine Control Switch: Flip the switch to the
“ON (l)” position and pull the recoil starter to
start the generator. Turn to the “OFF (O)”
position to turn off the generator.
2. Hour Meter: Displays and records how many
hours your generator has run (up to 9,999.9).
3. Low Oil Indicator: The Light will be illuminated
when the engine oil level is low. Add oil.
4. 120/240V AC, 30A Twist Lock, Single Phase,
60 Hz Outlet (NEMA L14-30R): This outlet can
supply either 120 Volt or 240 Volt output up to
30 amps.
5. Circuit Breaker: Protects the generator against
electrical overloads.
NOTE: Total power drawn from all outlets must not exceed the nameplate rating.
6. 120V AC, 20A Duplex, Single Phase, 60 Hz
Outlets (NEMA 5-20R): Each outlet is capable of
carrying a maximum of 20 Amp on a single outlet
or a combination of both outlets.
7. Ground Terminal: The ground terminal is used to
ground the generator.
1
7
23 45 56
