A.O. Smith 100 Series Installation & Service Manual

12
3 Hydronic piping
DIR #20005775360
TEMPERATURE GAUGE
FLOW INDICATOR
BALANCING VALVE
PUMP
EXPANSION
TANK
RELIEF VALVE
ACCUMULATOR
TANK
COLD WATER SUPPL
Y
HOT WATER SUPPLY
BOILER WATER
IN
BOILER WATER
OUT
BUILDING RETURN

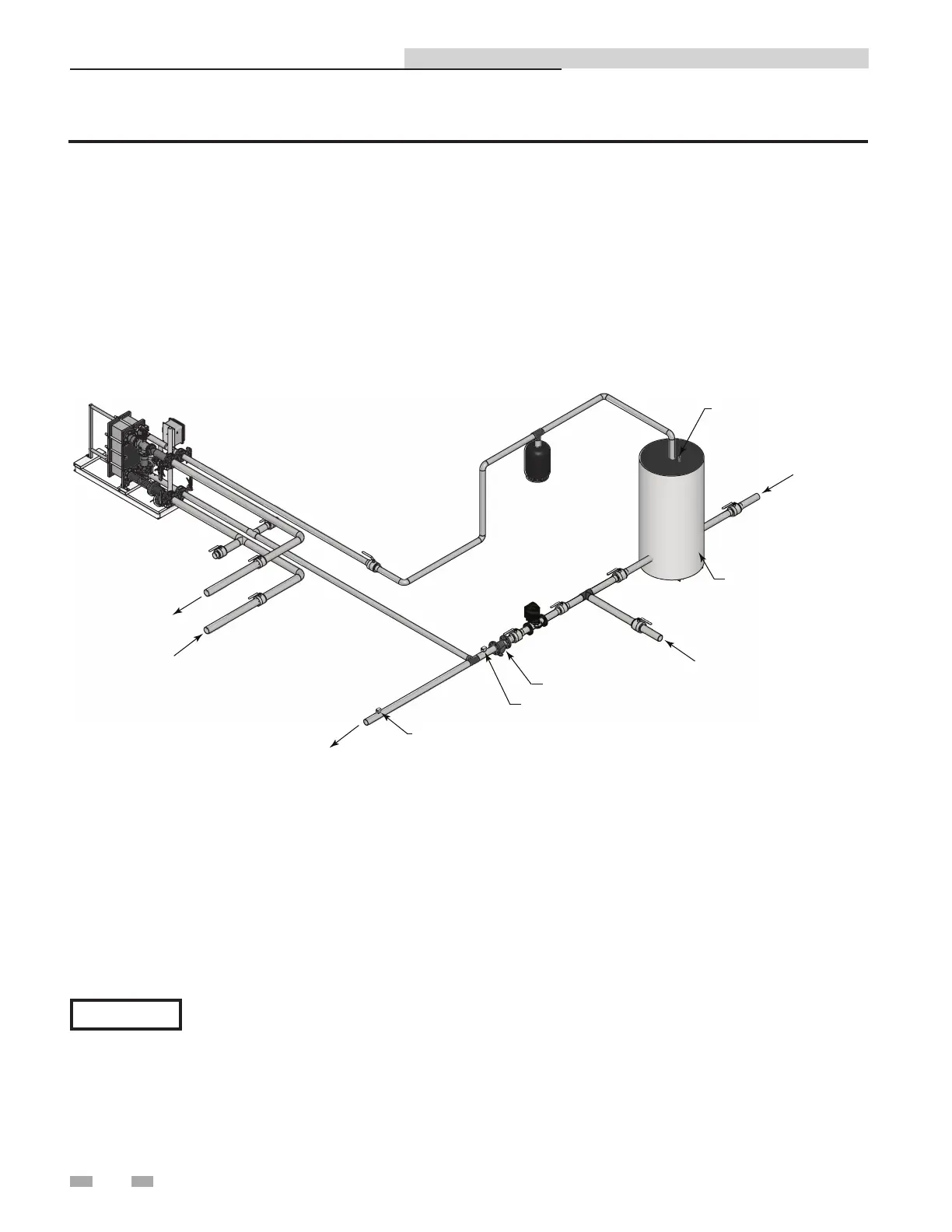

Figure 3-5 Water to Water Heat Exchanger Single Unit with Accumulator Tank
Please note that these illustrations are meant to show system piping concept only, the installer is responsible
for all equipment and detailing required by local codes.
NOTICE
Indirect Plate Water Heater Installation & Service Manual

A.O. Smith 100 Series Specifications

General

Brand	A.O. Smith
Series	100 Series
Category	Water Heater
Vent Type	Atmospheric
Type	Tank
Fuel Type	Natural Gas, Propane
Warranty	6-Year Limited Tank and Parts
