1 Determine water heater location
(A)
(D)
(B)
(E)
(C)
24.00
24.00
24.00
24.00
DIR #200057741
9

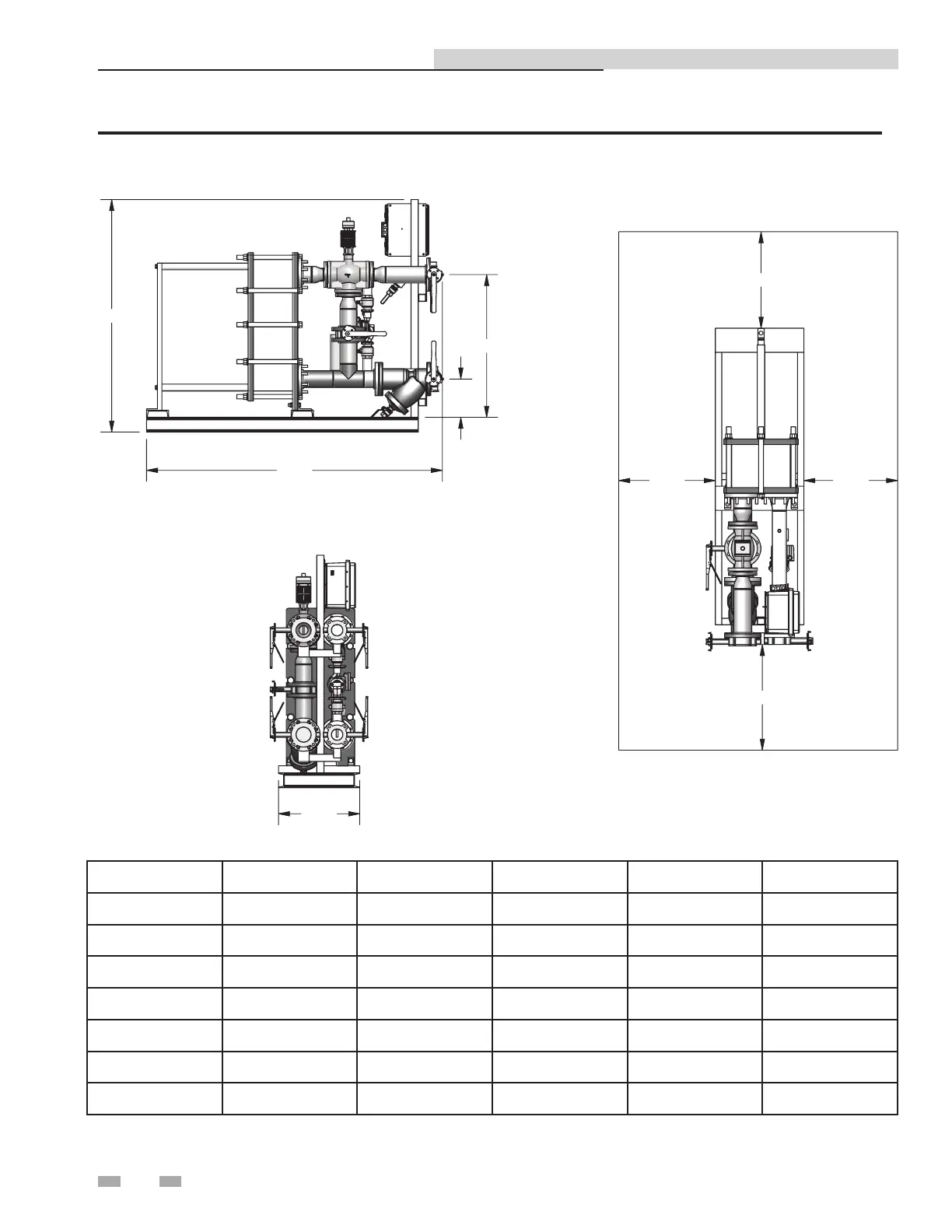

Figure 1-1 APW Water Heater Clearances and Dimensions
6
Indirect Plate Water Heater Installation & Service Manual
MODEL A B C D E
APW015DW 55" 44" 15" 35.5" 10.5"
APW030DW 55" 52" 15" 35.5" 10.5"
APW050DW 55" 52" 15" 35.5" 10.5"
APW070DW 63" 61" 22" 42.5" 14.25"
APW090DW 63" 71" 22" 42.5" 14.25"
APW105DW 63" 69" 22" 42.5" 14.25"
APW120DW 63" 79" 22" 42.5" 14.25"
