A.O. Smith BT- 80 User Manual

8

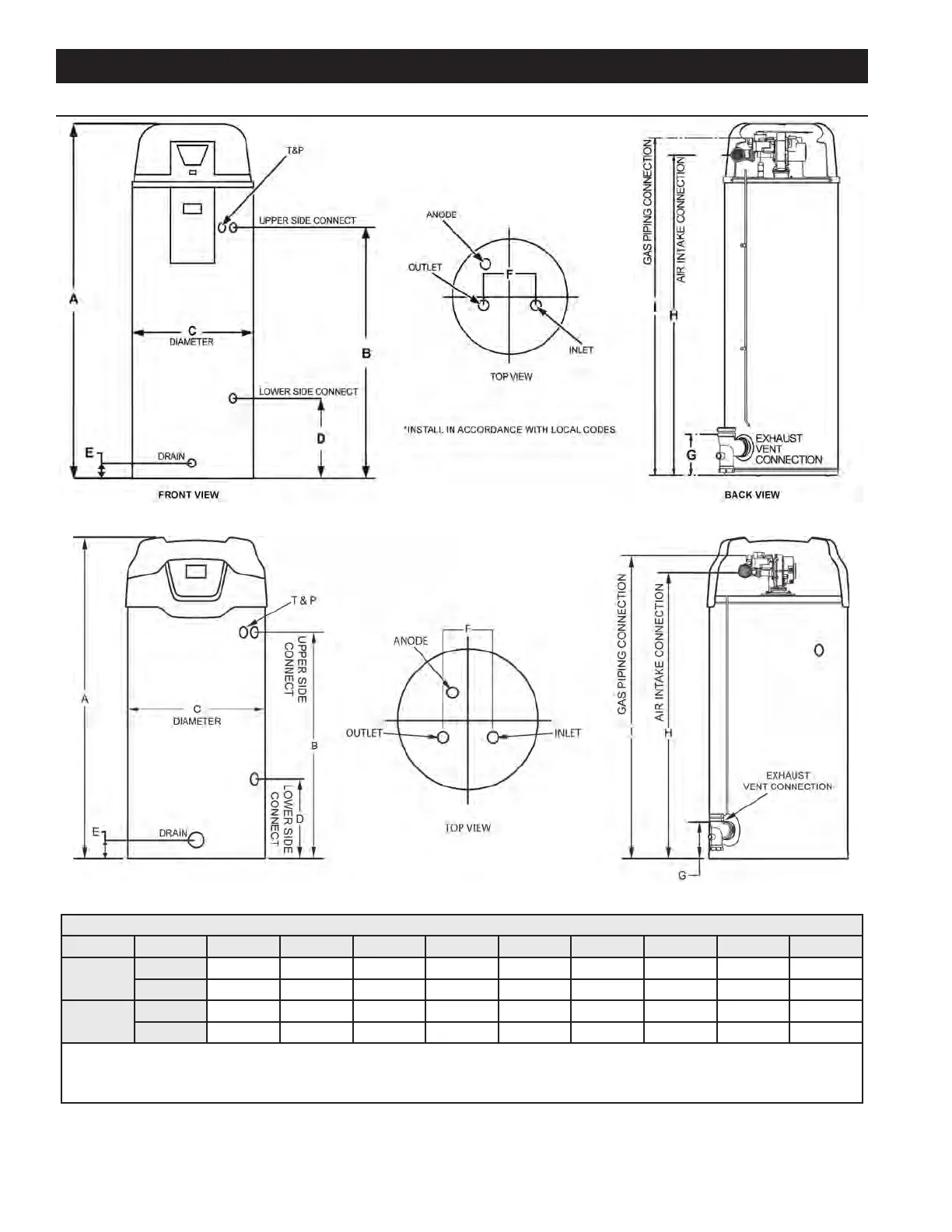

DIMENSIONS AND CAPACITY DATADIMENSIONS AND CAPACITY DATA
ROUGH IN DIMENSIONS
Figure 1. Dimensions for 50 Gallon Unit
FRONT VIEW
BACK VIEW
Figure 2. (1A) Dimensions for 75 Gallon Unit
Table 1. Rough-In-Dimensions
Units A B C D E F G H I
50G
Inches 66.75 49.25 22.00 15.75 3.00 8.00 8.00 62.00 65.00
cm 169.5 125.09 55.88 40.00 7.62 20.32 20.32 157.48 165.1
75G
Inches 65.25 45.64 27.75 16.00 3.71 8.00 7.93 57.36 58.98
cm 165.7 115.9 70.5 40.6 9.4 20.3 20.1 145.7 149.8
Top Inlet and Outlet: 50G - 3/4” NPT; 75G - 1” NPT
Side Inlet and Outlet: 3/4” NPT
Gas Inlet: 1/2” NPT
Condensate drain outlet: 1/2” NPT
