WATER PIPING DIAGRAMS %HIRUHLQVWDOODWLRQRIZDWHUSLSLQJUHYLHZWKHIROORZLQJ  6HH0L[LQJ9DOYHVRQSDJH  6HH'LVKZDVKLQJ0DFKLQHVRQSDJH  6HH7HPSHUDWXUH3UHVVXUH5HOLHI9DOYHRQSDJH

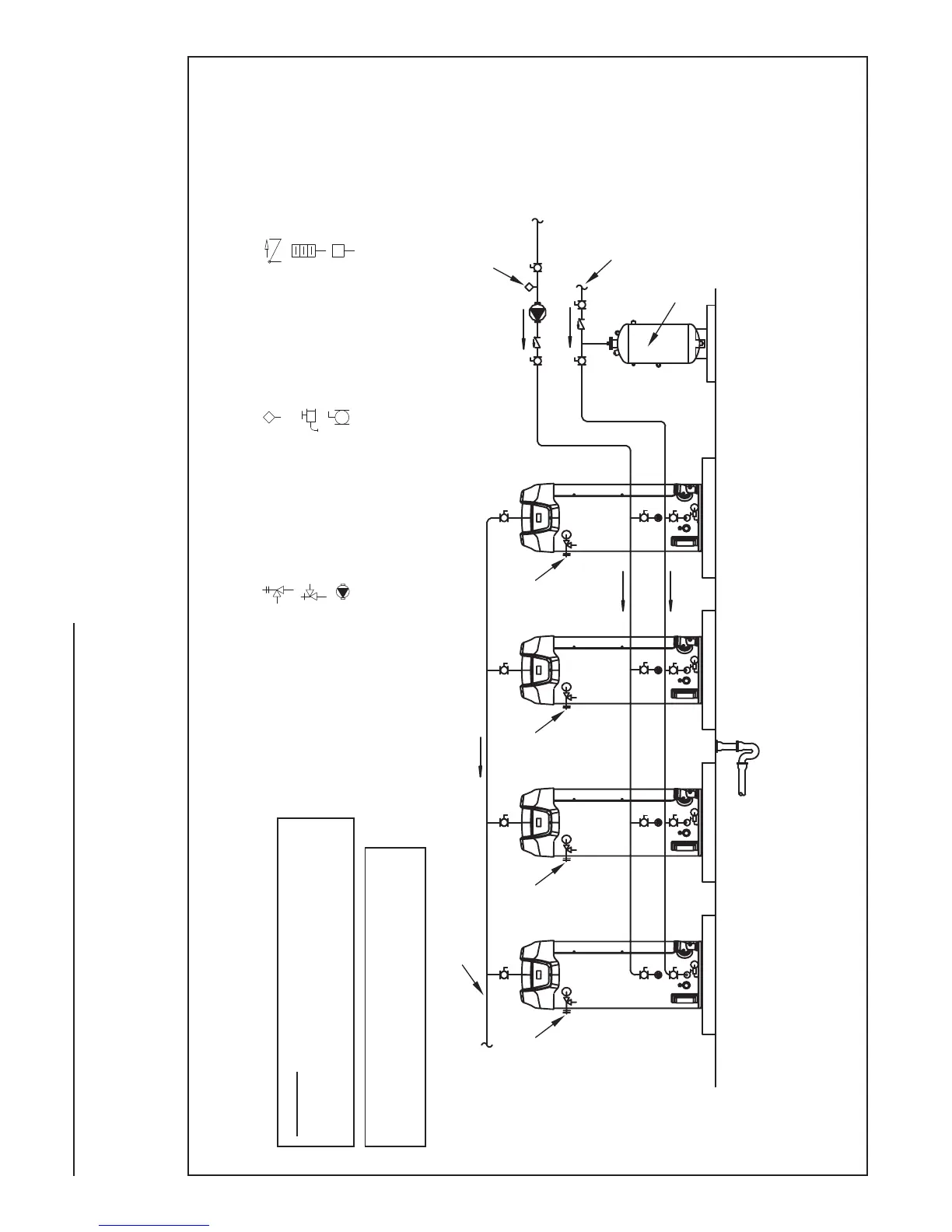

FOUR WATER HEATERS, SINGLE TEMPERATURE WITH BUILDING RECIRCULATION
NOTES: 1. Preferred piping method. 2. The temperature and pressure relief valve setting shall not exceed pressure rating of any component in the system. 3. Service valves are shown for servicing unit. However, local codes shall govern their usage.
WARNING: THIS DRAWING SHOWS SUGGESTED PIPING CONFIGURATION AND OTHER DEVICES; CHECK WITH LOCAL CODES AND ORDINANCES FOR ADDITIONAL REQUIREMENTS. ANY MATERIAL, COMPONENT OR VENDOR CHANGE MUST HAVE PRIOR APPROVAL BY THE APPLICABLE
PRODUCT ENGINEERING DEPARTMENT.
FINISHED FLOOR
HOT WATER RETURN
PIPE T&P TO OPEN DRAIN
PIPE T&P TO OPEN DRAIN
PIPE T&P TO OPEN DRAIN
PIPE T&P TO OPEN DRAIN
HOT WATER TO FIXTURES
COLD WATER SUPPLY
TANK TEMPERATURE CONTROL
EXPANSION TANK
LEGEND
TEMPERATURE & PRESSURE RELIEF VALVE PRESSURE RELIEF VALVE CIRCULATING PUMP
TEMPERATURE CONTROL PROBE
DRAIN
FULL PORT BALL VALVE
TEMPERATURE GAGE WATER FLOW SWITCH CHECK VALVE
