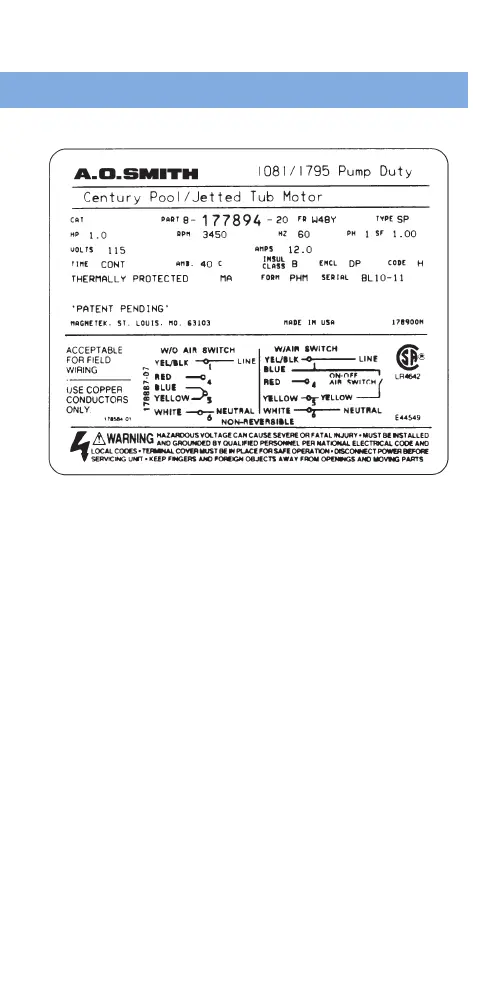

A.O. Smith CENTURY E-PLUS - NAMEPLATE DATA EXPLANATION - PART 1

1. CAT NO (Catalog Number): This number indicates
that the motor is a stock rating, readily available
from standard inventory as a replacement pool
motor.
2. PART: This identifies the motor’s specific design
by part number.
3. FR (Frame): The frame identifies the mounting
and shaft configuration. It doesn’t indicate the
diameter of the shell. A.O. Smith’s line of Centurion
and Centurion SE motors have a “56 frame” shell
and are 6.5 inches in diameter. Neptune and
Flex-48 products are designed in a 48 frame shell
and are 5.6 inches in diameter. Common terms you’ll
see on the nameplate are “56J,” “56C” and “56Y.”
The 56J is always a C-flange, threaded-shaft motor;
the 56C is always a C-flange, keyed-shaft motor.
Motor-frame mountings with the “Y” identification
