A.O. Smith CENTURY E-PLUS - Single Voltage 230 V Switchless

49
LINE 1
LINE 2
CAPACITORS
PHASE
OVERLOAD
L1
L2
1
2 3
YLW
BLK/YLW
BLU BLU
WHT
3
Single Voltage
230 Volt
Type CX–2 and 3 Hp
Switchless
EXTERNAL CONNECTIONS

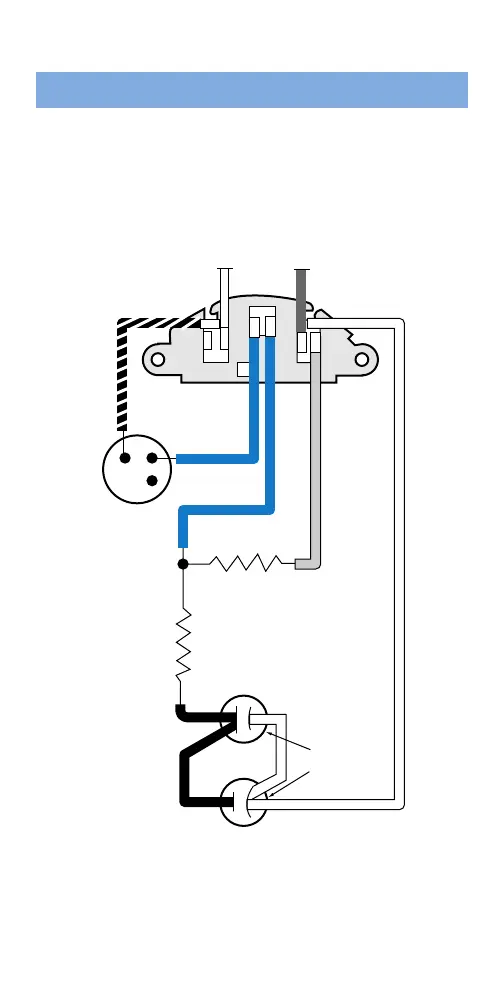

Wiring Diagram #167976. Connection Label #166363.
E-PLUS
®
SWITCHLESS
