A.O. Smith CENTURY E-PLUS - Two-Speed 115;230 V Wiring

52

L.S. MAIN
H.S. MAIN
START
CAPACITOR
RED
RED
RED
ORNG
YLW
YLW-BLK
BLK
L. S. PHASE
BLU
BLU
PROTECTOR
WHT
WHT
YLW-BLK
SPLICE. TYP
2 PLACES
RED
YLW
ORNG
BLK
HIGH SPEED
LOW SPEED
LI
L2
1
2
3
2
3
4
6
5
Two-Speed
Single Voltage
115 or 230 Volt
Type CSM 1.0/.12 Hp 115 Volt
Type CSM 1.0/.16 Hp 115 Volt
Type CSM 1.5/.18 Hp 230 Volt
Type CSM 2.0/.25 Hp 230 Volt

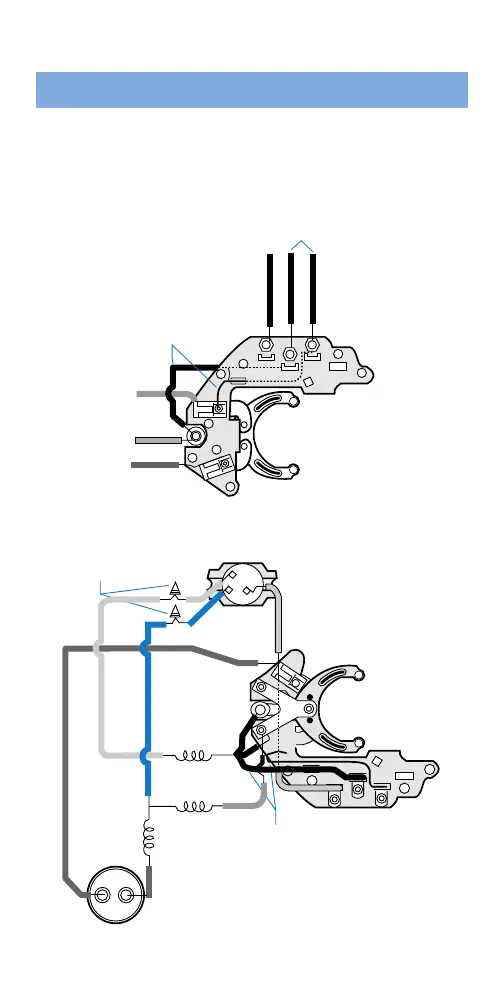

INTERNAL WIRING EXTERNAL CONNECTIONS
Wiring Diagram #179277.
FLEX 48
®
FRAME
