A.O. Smith CENTURY E-PLUS - CENTURION WIRING DIAGRAMS; Dual Voltage (115;230 V) Diagrams

30
For motors manufactured in/after Nov., 1991 (Serial #BJ11)
Single Voltage Type CX-1
1
⁄
2
-5Hp
230 Volt Switchless

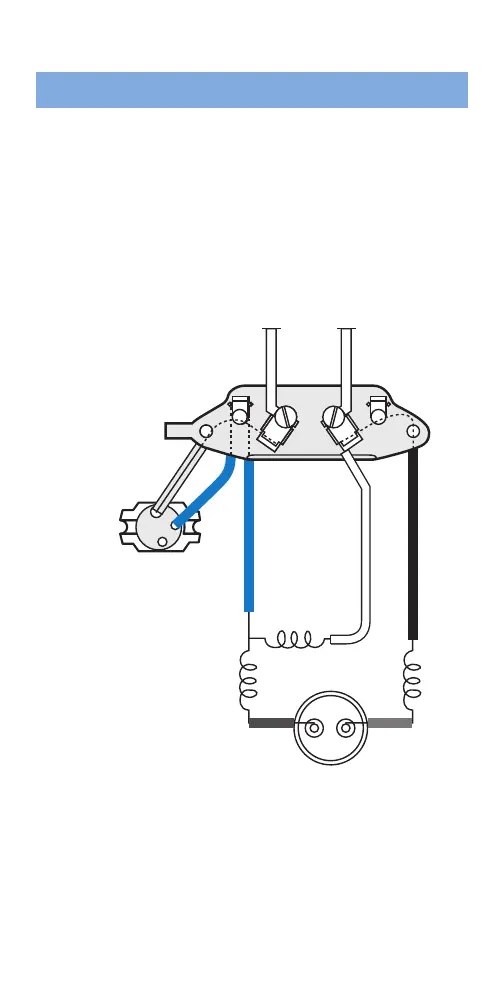

EXTERNAL CONNECTIONS
1
3
2
PROTECTOR
MAIN
CAPACITOR
BLK
BLUE
BRN
RED
WHT
BLK/YLW
LINE 1 LINE 2
L2 L1
BLUE
1/2 PHASE
1/2 PHASE
B A
Wiring Diagram #16636001. Connection Label #17050319.
CENTURION
®
/SE/II
