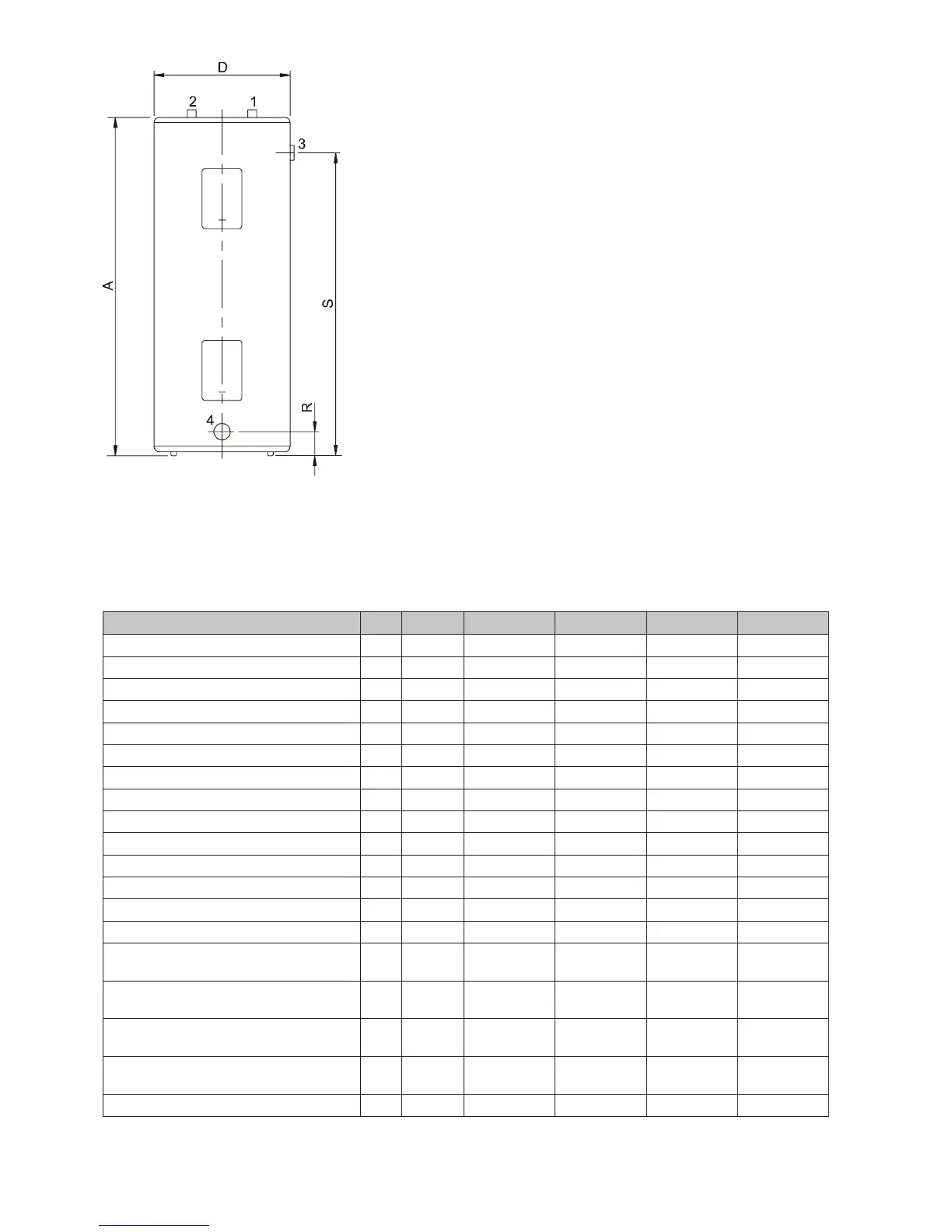

1.3.2 Dimensions EES 52, EES 66, EES 80 en EES120
TYPE EES 52 EES 66 EES 80 EES 120
Total height A mm 1370 1530 1540 1620
Diameter of the apparatus D mm 510 520 570 710
Height of drain tap R mm 95 95 95 110
Height of T&P plug S mm 1210 1360 1330 1385
Connection cold water 1 ø ¾” -14 NPT ¾” -14 NPT ¾” -14 NPT ¾” -14 NPT
Connection hot water 2 ø ¾” -14 NPT ¾” -14 NPT ¾” -14 NPT ¾” -14 NPT
Connection T&P plug 3 ø ¾” -14 NPT ¾” -14 NPT ¾” -14 NPT ¾” -14 NPT
Connection drain tap 4 ø ¾” -14 NPT ¾” -14 NPT ¾” -14 NPT ¾” -14 NPT
Tankage lt. 190 250 300 450
Number of elements stuks 2 2 2 2
Capacity (220 V) kW 2,5 2,5 2,5 2,5
Capacity (240 V) kW 3,0 3,0 3,0 3,0
Heating time up to 60°C (220/240 V)* min 255/214 343/289 416/350 625/525
Heating time up to 40°C (220/240 V)* min 153/129 206/173 250/210 375/315
Drainingtapcapacityat60°Crsthour
(220/240)**
lt/uur 201/209 244/252 286/294 407/415
Draining tap capacity continuous, at 60°C
(220/240)**
lt/uur 44/52 44/52 44/52 44/52
Drainingtapcapacityat40°Crsthour
(220/240)**
lt/uur 335/349 406/420 447/491 679/693
Draining tap capacity continuous, at 40°C
(220/240)**
lt/uur 73/87 73/87 73/87 73/87
Weight kg 69 89 103 161
