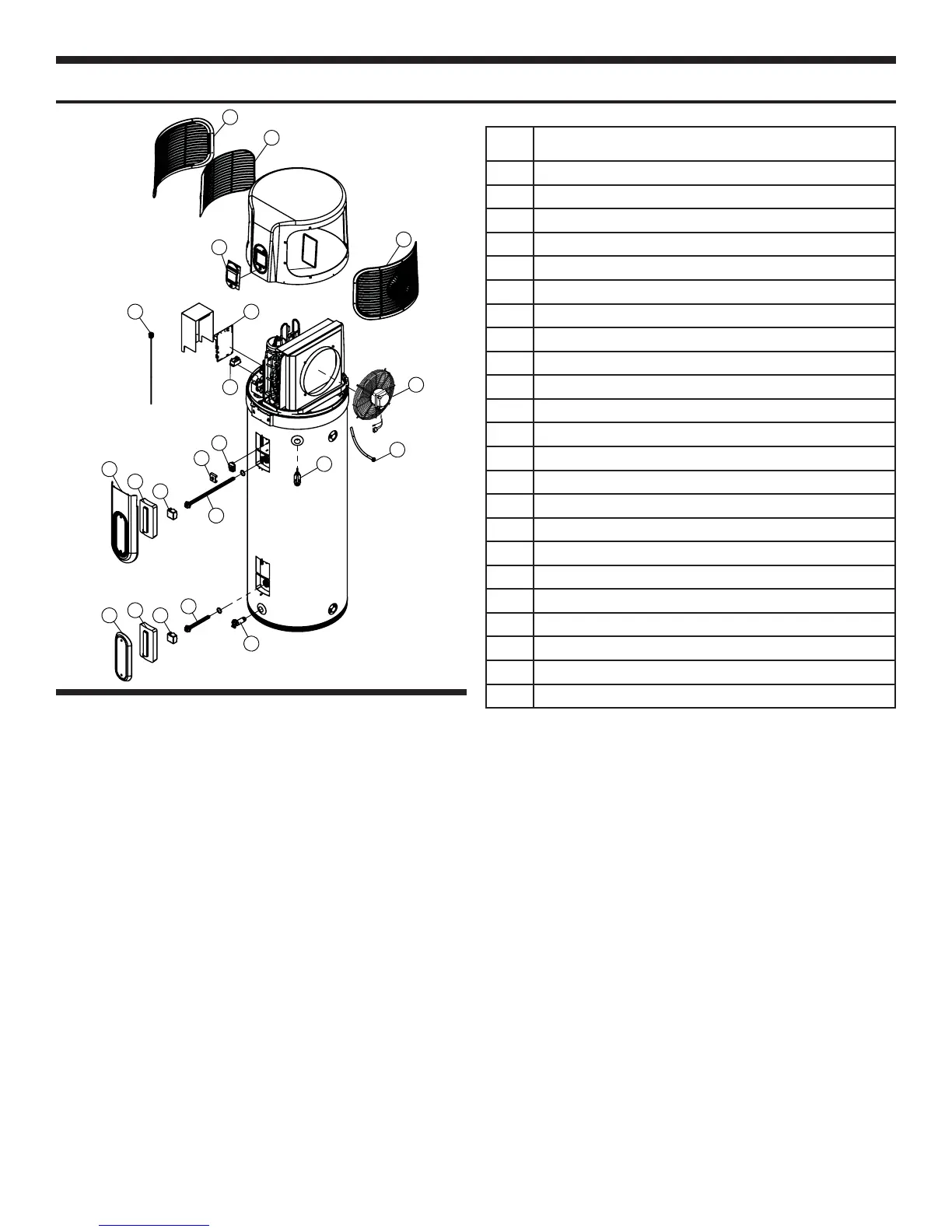

REPAIR PART ILLUSTRATION
ITEM
NO.
PARTS DESCRIPTION
1
Upper Access Cover
2
Lower Access Cover
3
Upper Element (4500 Watts)
4
Lower Element (2000 Watts)
5
Energy Cut-Off (ECO) Switch
6
Temperature & Pressure Relief Valve (T&P)
7
Dip Tube (at hot water outlet)
8
Powered Anode Rod
9
User Interface Module
10
Air Filter
11
Air Inlet Side Panel
12
Air Outlet Side Panel
13
Fan Assembly
14
Drain Valve
15
Protective Plastic Cover
16
ECO Cover
17
Control Board
18
Relay
19
EPS Cover
20*
Ambient / Coil / Discharge Temperature Sensor
21*
Upper / Lower Tank Temperature Sensor
22*
Run Capacitor
23*
Control Board Module Fuses
REPAIR PARTS
Repair parts may be ordered through your plumber, local
distributor, home improvement center, or by calling
1-800-527-1953. When ordering repair parts always give
the following information:
1. Model, serial and product number
2. Item number
3. Parts description
REPAIR PARTS LIST
12
11
10
9
17
18
8
7
6
14
4
3
5
1
2
16
15
15
19
19
13
* NOT SHOWN
