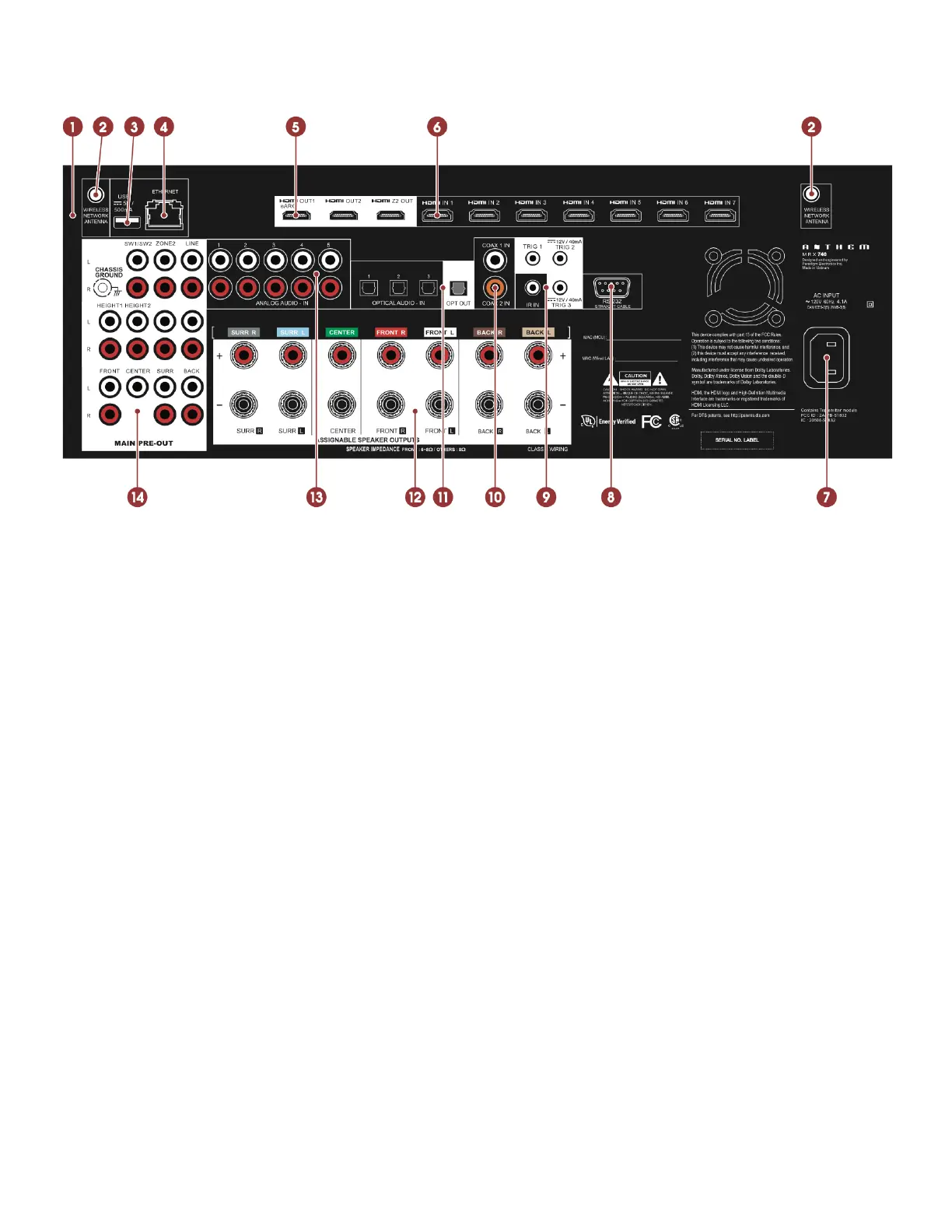

2.5 MRX 740 REAR PANEL
US model shown. EU model is similar.
Chassis ground screw
Wireless antenna connectors
USB jack for factory service
Local area network connection for IP control and Anthem Room Correction
HDMI outputs: HDMI 1 supports eARC (Enhanced Audio Return Channel)
HDMI inputs
AC input
RS-232 interface (bidirectional) for serial control
IR input and trigger outputs
Coaxial digital audio inputs
Optical digital audio inputs and output
Speaker connections
Analog audio inputs
Pre-out connections
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
