A&D FG-30KBM - RS-232 C Interface Details; RS-232 C Pin Connection Diagrams; RS-232 C Data Output Format; Examples of RS-232 C Data Output

18

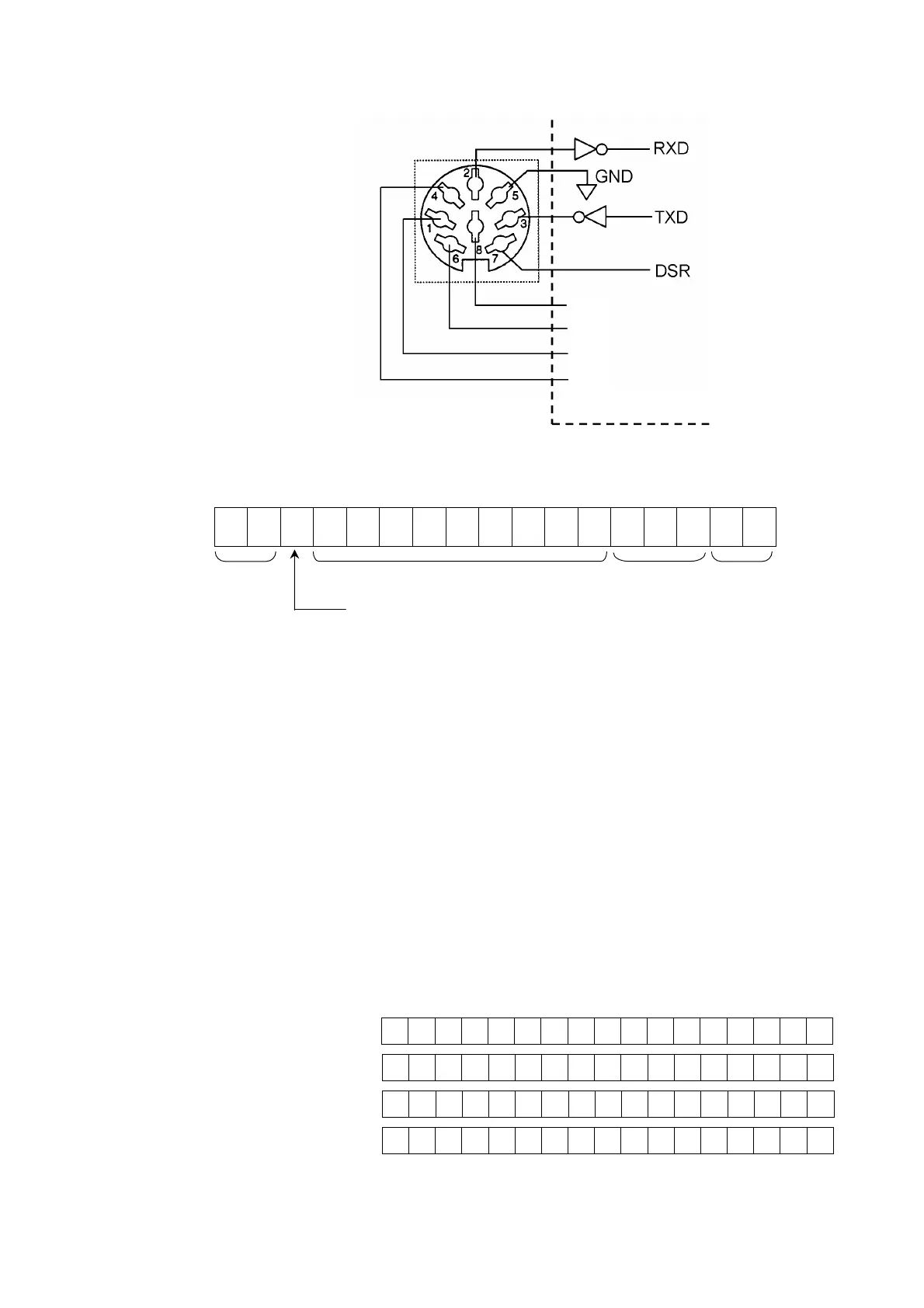

Pin connections
Data format
S T
,
+ 0 0 0 0 0
.
0 0 _ k g C
R
L
F
Header Data Unit Terminator
? There are 4 types of headers:
ST : Stable weighing data
QT : Stable counting data
US : Unstable weighing data (including counting data)
OL : Out of weighing range (Over)
? The data is normally 9 digits including decimal point and a sign.
? There are 4 types of units:
_ k g : Weighing data “gram”
_ P C : Counting data “pcs”
_ l b : Weighing data “decimal pound”
_ o z : Weighing data “decimal ounce”
? The terminator is always C
R
L
F
.
? Example of output data:
Weighing data “kg” S T , + 0 0 1 2 3 . 4 5 _ k g
C
R
L
F
Counting data Q T , + 0 0 0 1 2 3 4 5 _ P C
C
R
L
F
Out of range “kg” (+) O L , + 9 9 9 9 9 . 9 9 _ k g
C
R
L
F
Out of range “pcs” (-) O L , - 9 9 9 9 9 9 9 9 _ P C
C
R
L
F
Separator
(“_” shows a space.)
V
iew from outside
NC
NC
NC
NC
(Inside of OP-23)
Mating connector:
DIN 8 pin (JA+TCP058)
Attached to FG
-
23.
