A&D FG-30KBM - 10-2. OP-23 RS-232 C Serial Interface; RS-232 C Interface Modes of Operation; Optional RS-232 C Connection Cables; RS-232 C Interface Technical Specifications

17
AX-KO1786-200
DIN 7P D-Sub 9S
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8
9

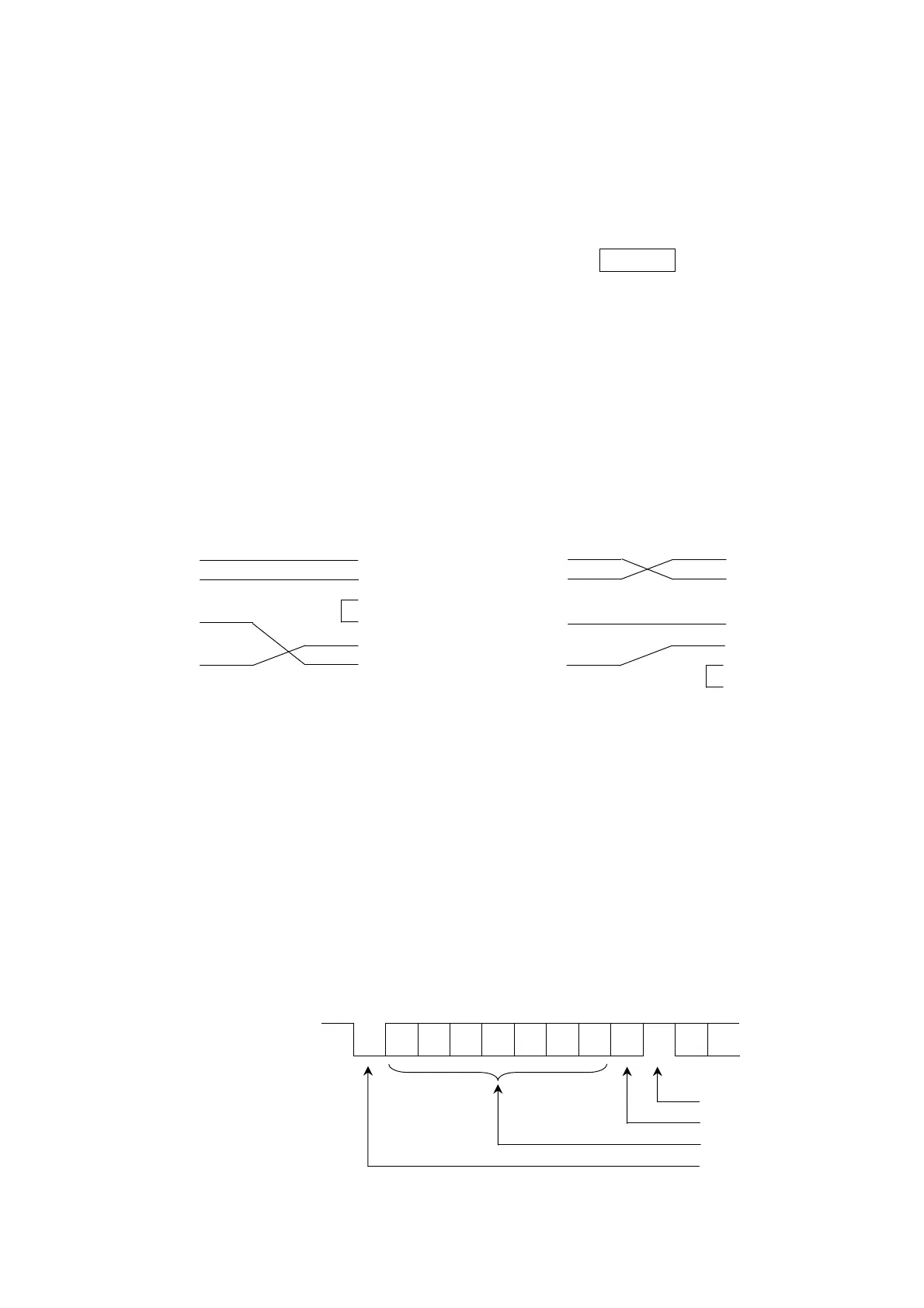

10-2. OP-23 RS-232C serial interface
This interface allows FG series to be connected with a multi-function printer or a
personal computer.
? The RS-232C interface has the following four modes.
Stream mode Outputs data continuously.
Command mode Controls the scale using commands from a computer.
Print switch mode Outputs data by pressing the PRINT switch..
Auto-print mode Outputs data which meets the conditions of auto-print.
? If necessary, set the parameter of the data format and data output mode (F4, F5
and F8).
? A DIN 8 pin connector (JA+TCP0586) is provided with the OP-23 for wiring.
? There are optional cables to connect with a personal computer.
AX-KO577A-200 FG to D-Sub 25 pin computer / RS-232C cable, 2m
AX-KO1786-200 FG to D-Sub 9 pin computer / RS-232C cable, 2m
(DIN 7 pin plug P can connect with DIN 8 pin socket.)
Interface specifications
Transmission system EIA RS-232C
Transmission form Asynchronous, bi-directional, half-duplex
Data format Baud rate: 2400, 4800, 9600 bps
Data: 7 bits + parity 1bit (even)
Start bit: 1 bit
Stop bit: 1 bit
Code: ACII
Terminator: C
R
L
F
(C
R
: 0Dh, L
F
: 0Ah)
LSB
0
1
2
3
4
5
MSB
6
Stop bit
Parity bit
Data bit
Start bit
AX-KO577A-200
DIN 7P D-Sub 25P
1 1
2 2
3 3
4 4
5 5
6 6
7 7
others
1 (-15V~-5V)
0 (5V~15V)
