Form: AAON-OE333-23-EM-VCMXExpMod-1E.doc Page 1 of 1
Description
The VCM-X Expansion Module
(Orion Part No.OE333-23-EM;
AAON Tulsa Part No. R69190;
AAON Coil Part No. 30308)
connects to any one of the
VCM-X E-BUS Controllers
(OE332-23E-VCMX-MOD,
OE332-23E-VCMX-WHP) to
provide additional inputs and
outputs beyond those found on
the VCM-X E-BUS Controller.
The VCM-X Expansion Module
provides an additional 8 Binary
Inputs, 4 Analog Inputs, 4 Relay
Outputs, and 5 Analog Outputs.
The VCM-X Expansion Module
can be used individually or to-
gether with the 12 Relay Expan-
sion Module (OE358-23-12R) to
provide the required inputs and
outputs for your specific applica-
tion.
The VCM-X Expansion Module
must be connected to a 24 VAC
power source. When wiring the
VCM-X Expansion Module, its
binary inputs and relay outputs
must be wired as wet contacts
(connected to 24 VAC).
The VCM-X Expansion Module
has an easy-to-read label and connects to the VCM-X Controller via a modular cable. The Module is also supplied with
a suction pressure transducer conditioning circuit.
Mounting
The VCM-X Expansion Module is housed in a plastic enclosure. It is designed to be mounted by using the 3 mounting
holes in the enclosure base. The VCM-X Expansion Module needs to be installed in an environment which can main-
tain a temperature range between -30° F and 150° F not to exceed 90% RH levels (Non-Condensing). It is important to
mount the module in a location that is free from extreme high or low temperatures, moisture, dust, and dirt. Be careful
not to damage the electronic components when mounting the module.
NOTE:
The VCM-X Expansion Module contains no user-serviceable parts. Contact qualified technical personnel if
your Module is not operating correctly.
7.83
1.49
0.98
5.98
2.75
8.38
0.29
RELAY CONTACT
RATING IS 1 AMP
MAX @ 24 VAC
RELAY 2
RELAY 1
RELAY 3
RELAY 4
RELAY
COMMON
I2C
EXPANSION
I2C
EXPANSION
AO1
= BUILDING PRESSURE CONTROL VFD OR
DAMPER ACTUATOR (0-10 OR 2-10 VDC)
= MODULATING HEATING SIGNAL
(0-10 VDC OR 2-10 VDC)
= MODULATING COOLING/DIGITAL SCROLL
SIGNAL (0-10 VDC, 2-10 VDC OR 1.5-5 VDC)
= RETURN AIR DAMPER ACTUATOR
(0-10 VDC)
= RETURN AIR BYPASS DAMPER ACTUATOR
(0-10 VDC)
= GROUND FOR ANALOG OUTPUTS
= GROUND FOR ANALOG OUTPUTS
AO2
AO3
AO4
AO5
GND
GND
BI1
= HOOD ON - N.O. INPUT
BI2
BI3
BI4
BI5
BI6
BI7
BI8
= DIRTY FILTER - N.O. INPUT
= PROOF OF FLOW - N.O. INPUT
= REMOTE FORCED OCCUPIED - N.O. INPUT
= REMOTE FORCED HEATING - N.O. INPUT
= REMOTE FORCED COOLING - N.O. INPUT
= SMOKE DETECTOR - N.C. INPUT
= REMOTE DEHUMIDIFICATION - N.O. INPUT
ANALOG INPUT
JUMPER SETTINGS
MUST BE SET AS
SHOWN FOR
PROPER
OPERATION
24 VAC POWER ONLY
WARNING!
POLARITY MUST BE
OBSERVED OR THE BOARD
WILL BE DAMAGED
www.orioncontrols.com
AI1
AI2
AI3
AI4
THERM
THERM
THERM
THERM
4-20mA
4-20mA
4-20mA
4-20mA
0-10V
0-10V
0-10V
0-10V
0-5V
0-5V
0-5V
0-5V
ANALOG INPUT
JUMPER
SETTINGS
RELAY 1 = RELAY 3 =
RELAY 2 = RELAY 4 =
IT IS SUGGESTED
THAT YOU WRITE THE
DESCRIPTION OF
THE RELAY OUTPUTS
YOU ARE USING IN
THE BOXES
PROVIDED ABOVE
WITH A PERMANENT
MARKER (SHARPIE®)
WattMaster Label
#LB102034-01
NOTE:
ALL BINARY INPUTS MUST BE 24 VAC ONLY.
AI1
= OUTDOOR AIR RH SENSOR (0-5 VDC)
AI2
AI3
AI4
GND
GND
= INDOOR AIR RH SENSOR (0-5 VDC)
= CO2 (0-10 VDC)
= BUILDING STATIC PRESSURE (0-5 VDC)
= GROUND FOR ANALOG INPUTS
= GROUND FOR ANALOG INPUTS
+V
SIG
GND
PR OUT
GND
SUCTION PRESSURE
TRANSDUCER CONNECTION
FOR HVAC UNITS WITHOUT
DIGITAL COMPRESSOR
TO VCM-X INPUT
TERMINALS AI5 & GND

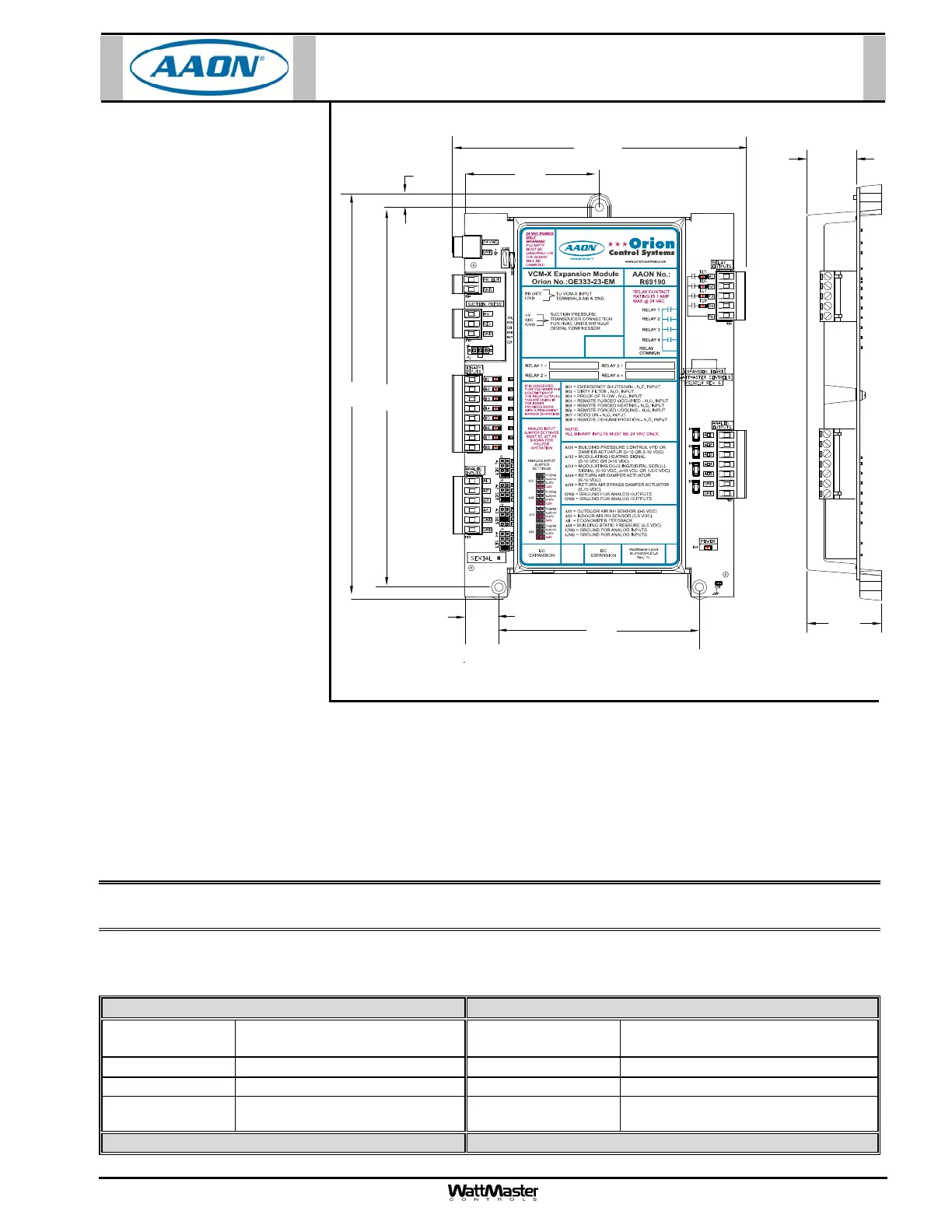

OE333-23-EM-A VCM-X EXPANSION MODULE
VCM
WARNING
OBSERVE
POLARITY
4.10
0.70
Technical Data OE333-23-EM VCM-X Expansion Module
Operating
Power
24 VAC Power Consumption 10 VA Maximum
Operating Temp
-30F to 150F
Operating Humidity 90% RH Non-Condensing
Communications I
2
C Weight 1 lb.
Inputs 8 Binary Inputs
4 Analog Inputs
Outputs 4 Relay Outputs
5 Analog Outputs
Three Year Warranty WattMaster reserves the right to change specifications without notice
OE333-23-EM
VCM-X Expansion Module
