AAton XTR - Front View

12

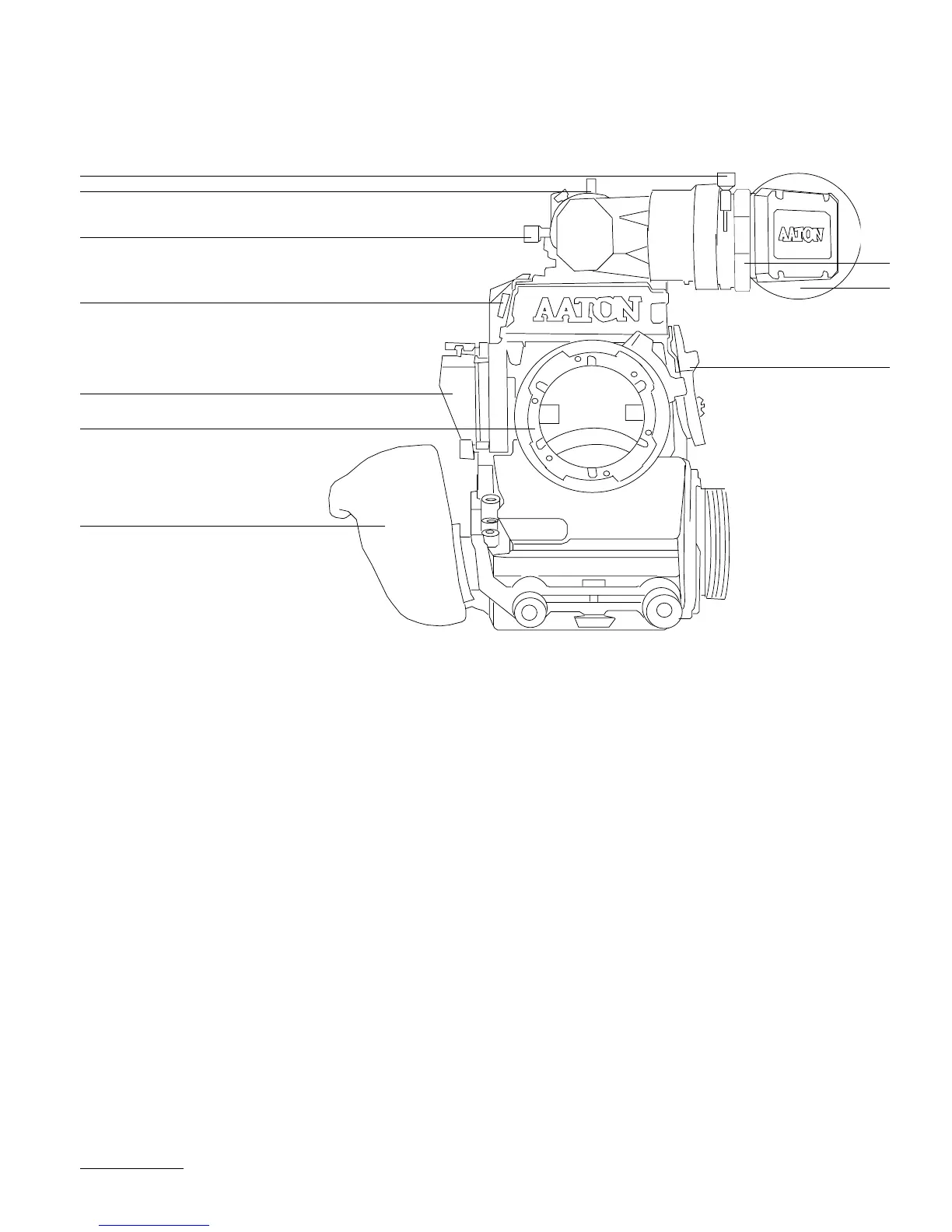

1.1 FRONT VIEW
1 Friction Adjusting Ring adjusts the tension of the eyepiece swivel.
2 Tape Measure Stud holds tape measure at film plane.
3 Lateral Lock Knob locks the lateral position of the viewfinder.
4 Beamsplitter Access Cap covers the port which accesses the beamsplitter adjustment screw.
5 CCD Cover accesses the CCD head.
6 PL Lens Port standard mounting system for XTRprod.XTRprod.
7 Wooden Handgrip allows for comfortable handheld operation.
8 Eyepiece Lock Ring fastens interchangeable standard and extension finders.
9 Eyepiece Shutter blocks light when operator's eye is away from the finder.
10 Body Run/Test Switch provides camera run and half frame inching.
1
2
3
4
5
6
7
10
9
8
