bdiGDB for BDI2000 (PowerPC 7440/7450/86xx) User Manual 9
© Copyright 1997-2015 by ABATRON AG Switzerland V 1.13

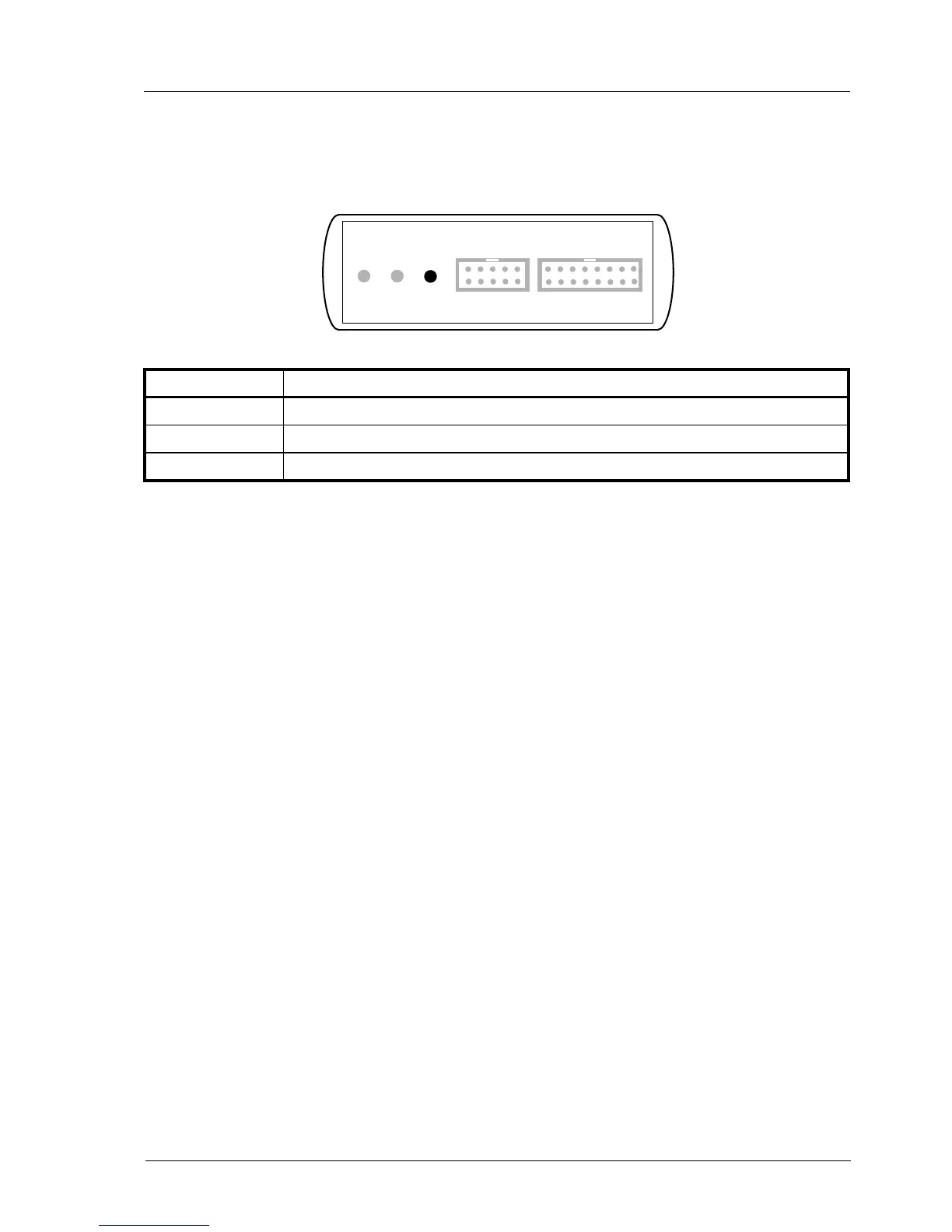

2.3 Status LED «MODE»
The built in LED indicates the following BDI states:
MODE LED BDI STATES
OFF The BDI is ready for use, the firmware is already loaded.
ON The power supply for the BDI2000 is < 4.75VDC.
BLINK The BDI «loader mode» is active (an invalid firmware is loaded or loading firmware is active).
BDI TRGT MODE TARGET A TARGET B
