ABB 266CRH - Transmitter with Barrel Housing and Mounting Bracket, for Vertical or Horizontal Mounting on 60 MM (2 In) Pipe

266CRH / 266CRT, 266CSH / 266CST MULTIVARIABLE PRESSURE TRANSMITTER | OI/266CXX/MODBUS-EN REV. A 19
Transmitter with barrel housing and mounting bracket, for vertical or horizontal mounting on 60 mm (2 in) pipe
M10030
1
1
54 (2.13)
16 (4.57)
179 (7.02)
91 (3.58)
107 (4.21)
89 (3.48)
72 (2.83)
29 (1.14)
18 (0.71)
18 (0.71)
56 (2.21) 53 (2.09)
210 (8.28)
123 (4.86)
13 (4.43)
54 (2.13)
71(2.80)
107 (4.21)
72 (2.83)
210 (8.28)

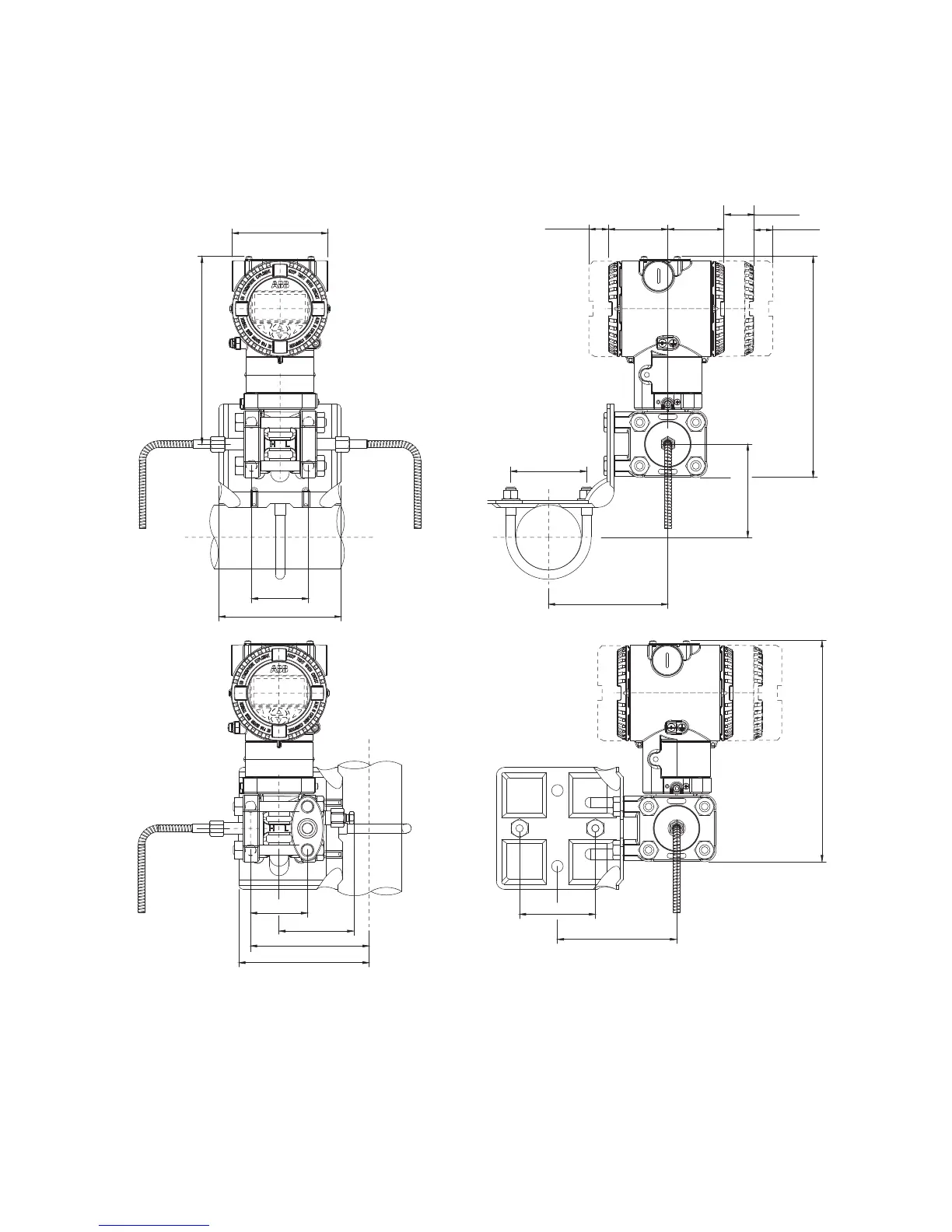

Figure 6: Pipe mounting - barrel housing, Dimensions in mm (in)
