8 4690 SERIES | TURBIDITY SENSOR | OI/ATS410-EN REV. A
Install the optional de-bubbler
Mounting the de-bubbler
Mount the de-bubbler vertically with the flow upwards.
Disconnect fittings – 12 (0.5) ID
tube (rotatable through 360°)
Drain outlet
Sample outlet
Removable fitting
12 (0.5) ID tubing
150
(5.9)
CRS
Ø6.5
(0.25)
540
(21.3)
88
(3.5)
91
(3.6)
Sample inlet

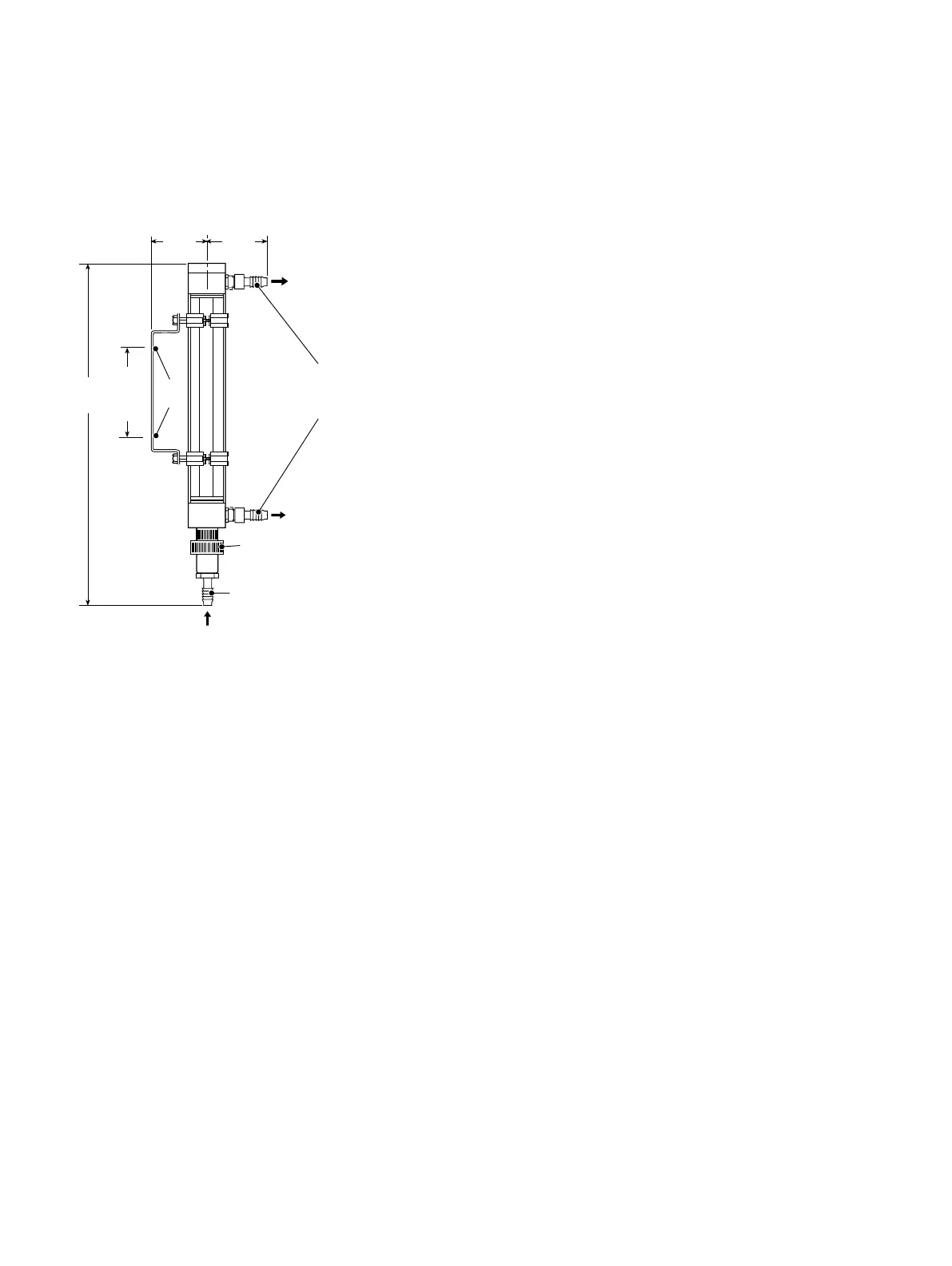

Figure 5 De-bubbler mounting information
(de-bubbler part number 7997 500)
