ABB A155-M Series Instruction Manual

Operation Manual / 4 Product description / A150-M56/66/57/67 -
A155-M..
10 Dismantling and fitting, cartridge concept / 10.2 Removing the
compressor casing
© Copyright 2020 ABB. All rights reserved. HZTL4032_EN Rev.P March 2020
10.2 Removing the compressor casing
u Mark the casing position for assembly.

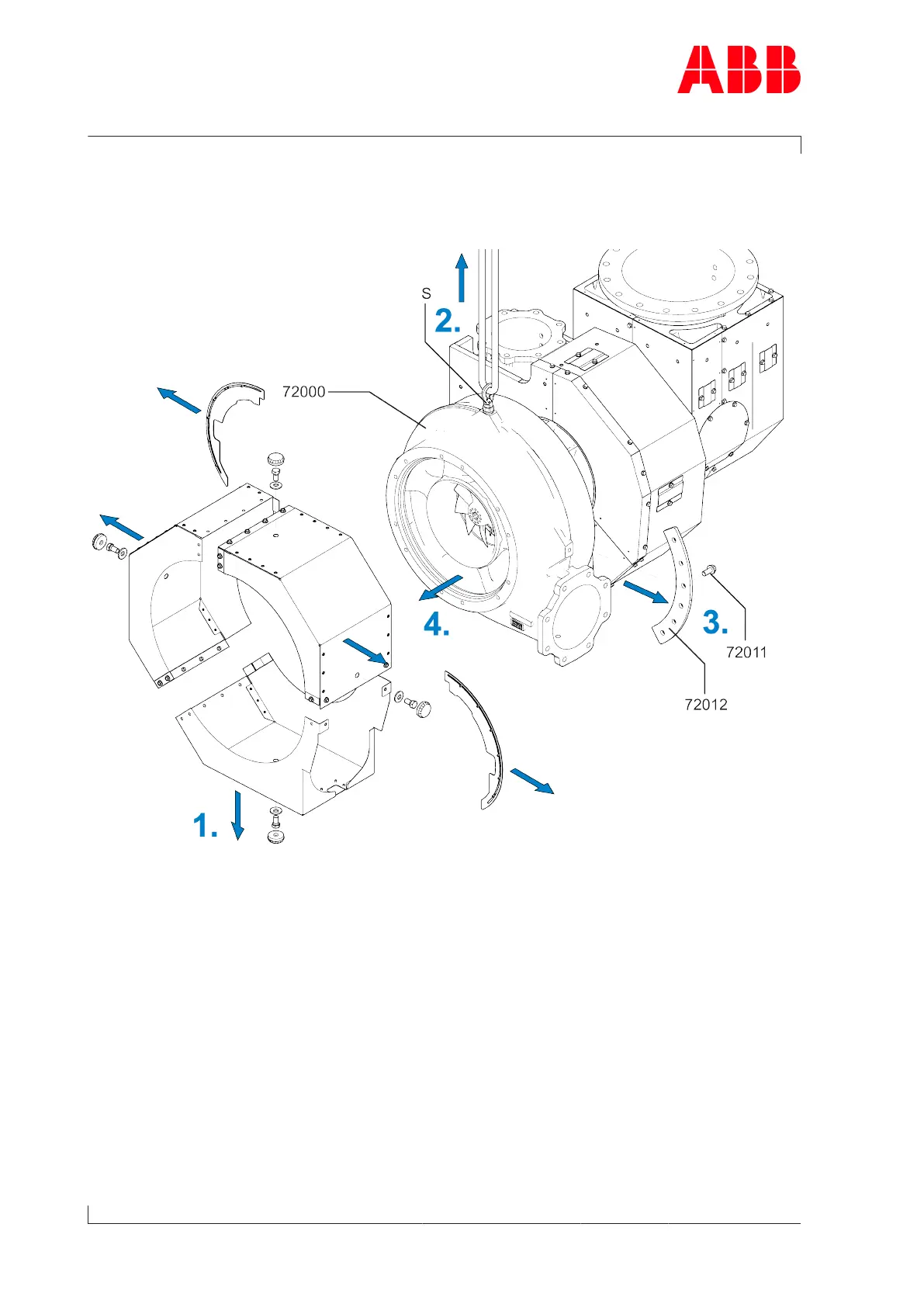

Fig.79: Removing the compressor casing
1. Remove the compressor casing insulation.
2. Fit swivel lifting eye(S) to the compressor casing(72000). Secure lifting gear to the
swivel lifting eye.
3. Loosen screws(72011) and remove together with fastening strips(72012).
4. Remove the compressor casing(72000).
Page 114 / 171
