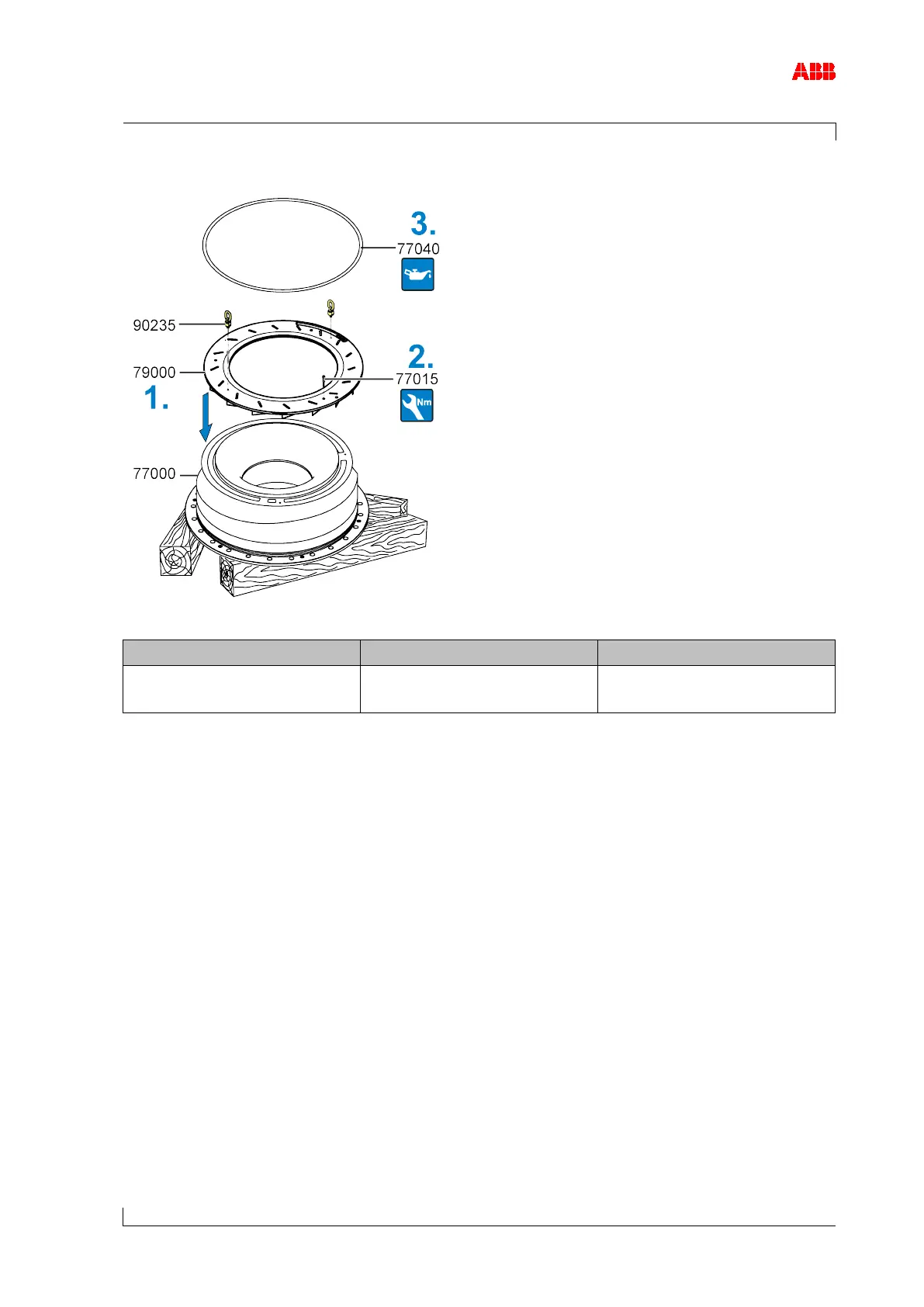

Figure 50: Installing diffuser
6 Nm
10 Nm
Table 38: Tightening torque (77015)
1. Position diffuser (79000) with swivel lifting eye (90235) on wall insert (77000).
2. Attach diffuser with screws (77015).
3. Grease the new O-ring (77040) and fit it.
