10 Taking a turbocharger out of operation / 10.2 Taking defective tur-
bochargers out of operation
© Copyright 2021 ABB. All rights reserved. HZTL4036_EN Rev.T December 2021
10.2.6 Blanking off the inlets and outlets
The chapter is only applicable for engines with several turbochargers and joint air and ex-
haust gas receivers. The cover plates for the compressor casing outlet, gas inlet and gas
outlet are not included in the ABB scope of delivery.
The following figure shows the positions where to fit the cover plates.

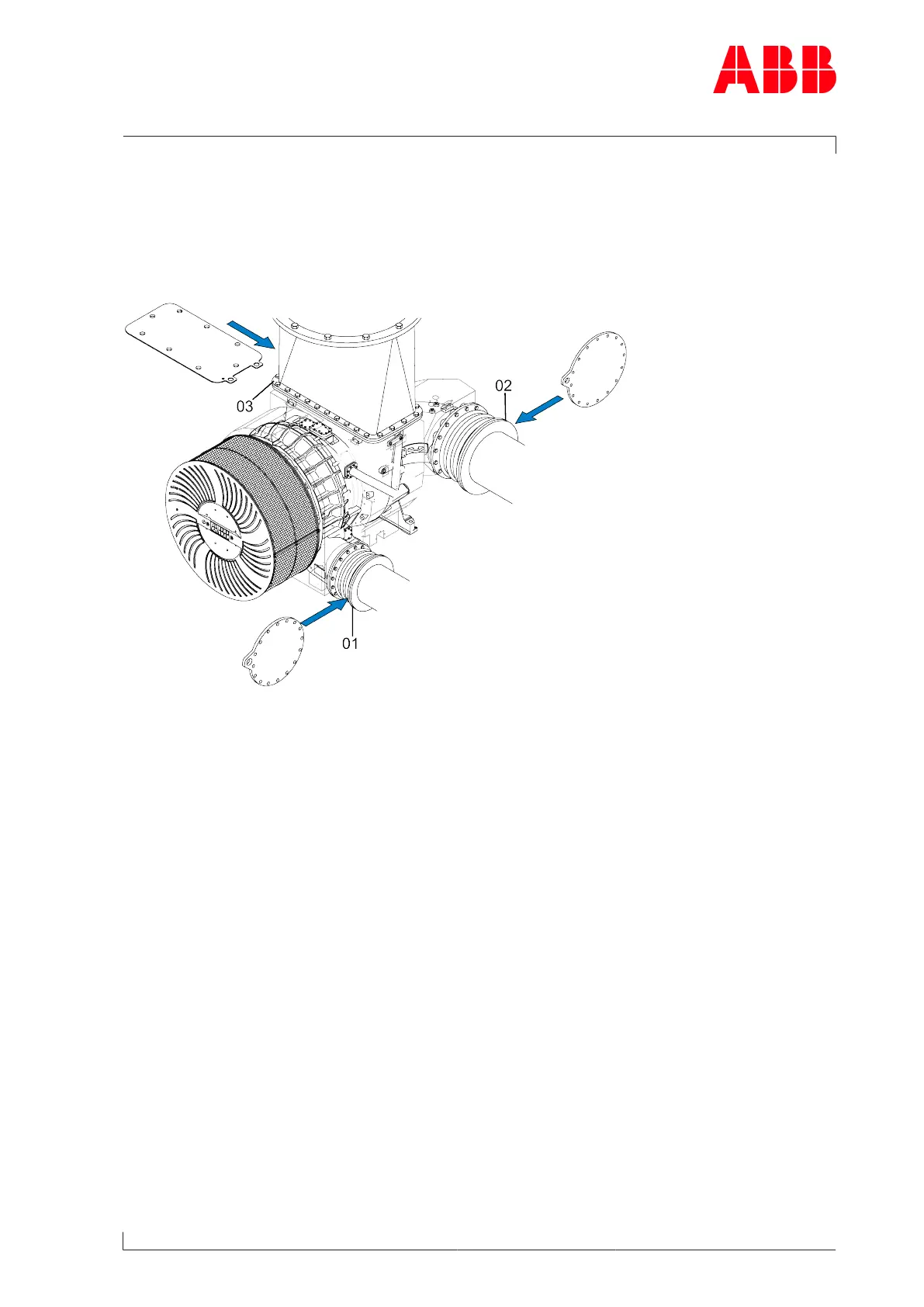

Fig.68: Position of cover plates
u Stop the engine.
u Shut off the supply of lubricating oil to the turbocharger.
u Blank off flanges of compressor casing outlet(01), gas inlet(02) and gas outlet(03) by in-
stalling cover plates.
u Observe specifications from enginebuilder.
