Repeating the cleaning
If the cleaning is still unsuccessful after three processes, it is recommended to have the tur-
bocharger checked and cleaned by an ABB Turbocharging Service Station if the engine val-
ues are unsatisfactory.
Volume of water per cleaning process
Product Quantity [dm
3
]
A255-L 1.5
A260-L 1.5
A265-L 2.0
A270-L 2.0
A275-L 3.0
A280-L 3.0
Table13: Volume of water per cleaning process
The filling time is 4...15seconds.
Checking the filter plug
The filter plug only needs to be checked in the turbocharger version with a cast filter silen-
cer. See chapter Design variants →78.

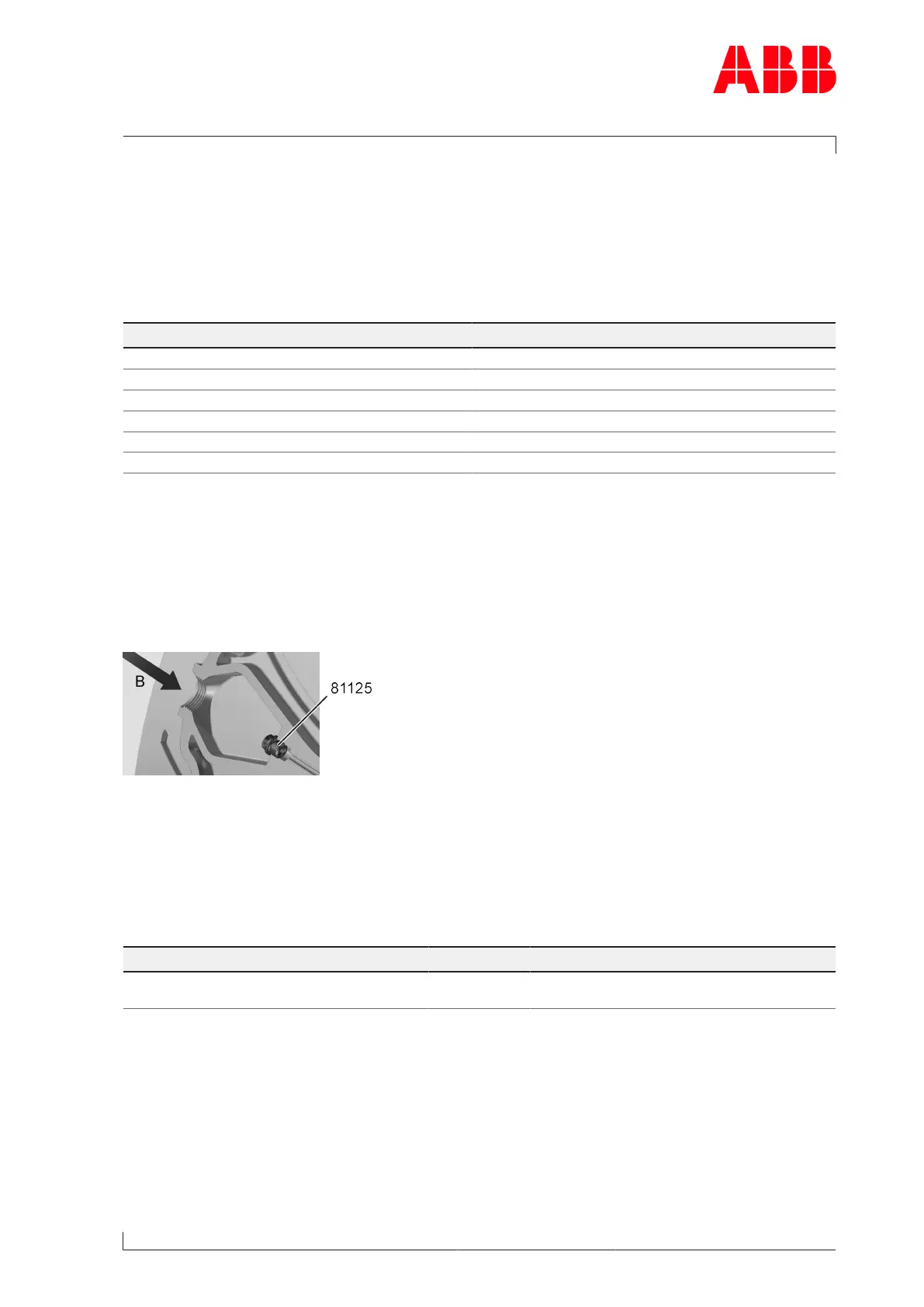

Fig.22: Filter plug view
Disassembly and checking of the filter plug(81125) is required if, 20seconds after the clean-
ing process, water is still visible in filler opening B.
u Loosen and remove the filter plug(81125) with box spanner.
u Clean the drill holes of the plug.
u Fit filter plug(81125).
Part number A255-L A260-L A265-L A270-L A275-L A280-L
81125 G1/2"
45 Nm
G1/2"
45 Nm
G1/2"
45Nm
G1/2"
45Nm
G1/2"
45Nm
G1/2"
45Nm
Table14: Tightening torques (81125)
