ABB ACQ580-34 - Safety Instructions

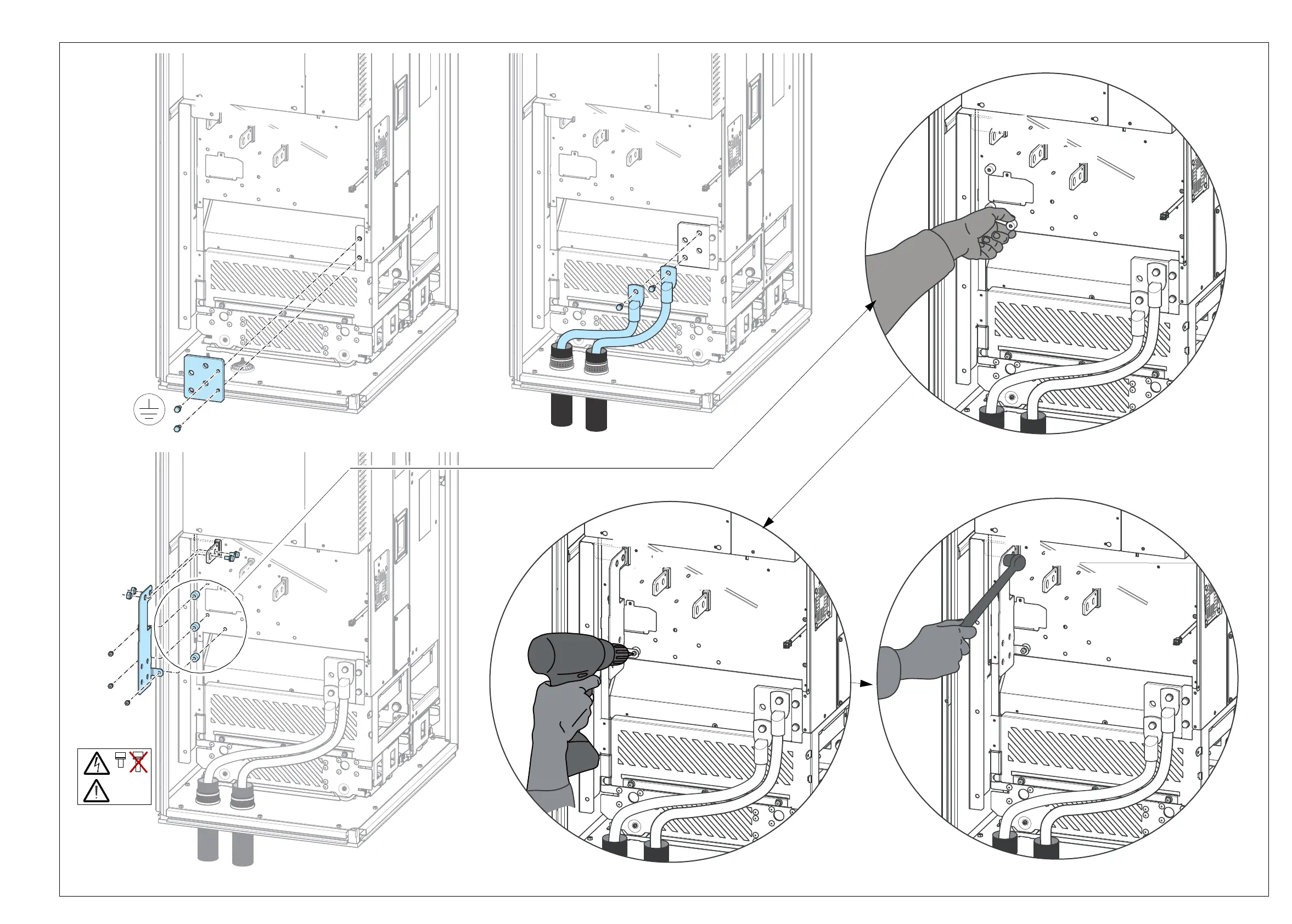

Step-by-step drawings for an installation example of standard drive configuration in Rittal VX25 800 mm wide cabinet 15
Combi screw
M6×12 Torx
T25 8 N·m
Combi screw
M12×25 Hex
(Delta) 70 N·m
8 N·m
T1/U2
T2/V2
T3/W2
T1/U2
T2/V2
T3/W2
T1/U2
T2/V2
T3/W2
T1/U2
T2/V2
T3/W2
T1/U2
T2/V2
T3/W2
