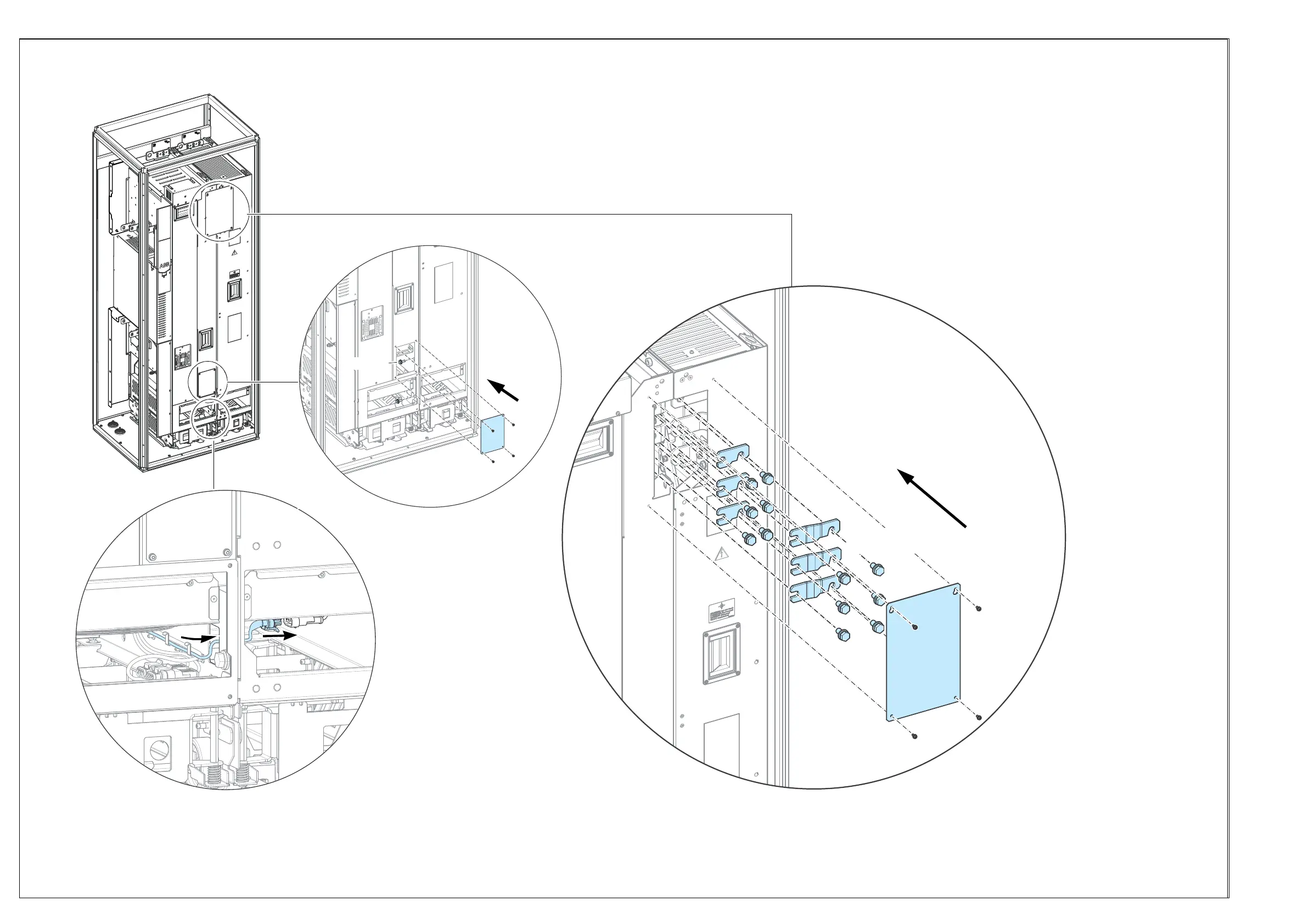

14 Step-by-step drawings for an installation example of standard drive configuration in Rittal VX25 800 mm wide cabinet
Combi screw M4×8
To rx T 20 2 N · m
Combi screw
M4×8 Torx T20
2 N·m
Combi screw
M12×25 70 N·m
M10×30
F
A
N
3
:
L
C
L
