ABB ACQ580-34 Quick Installation Guide
4
of 1
of 1 rating
22 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

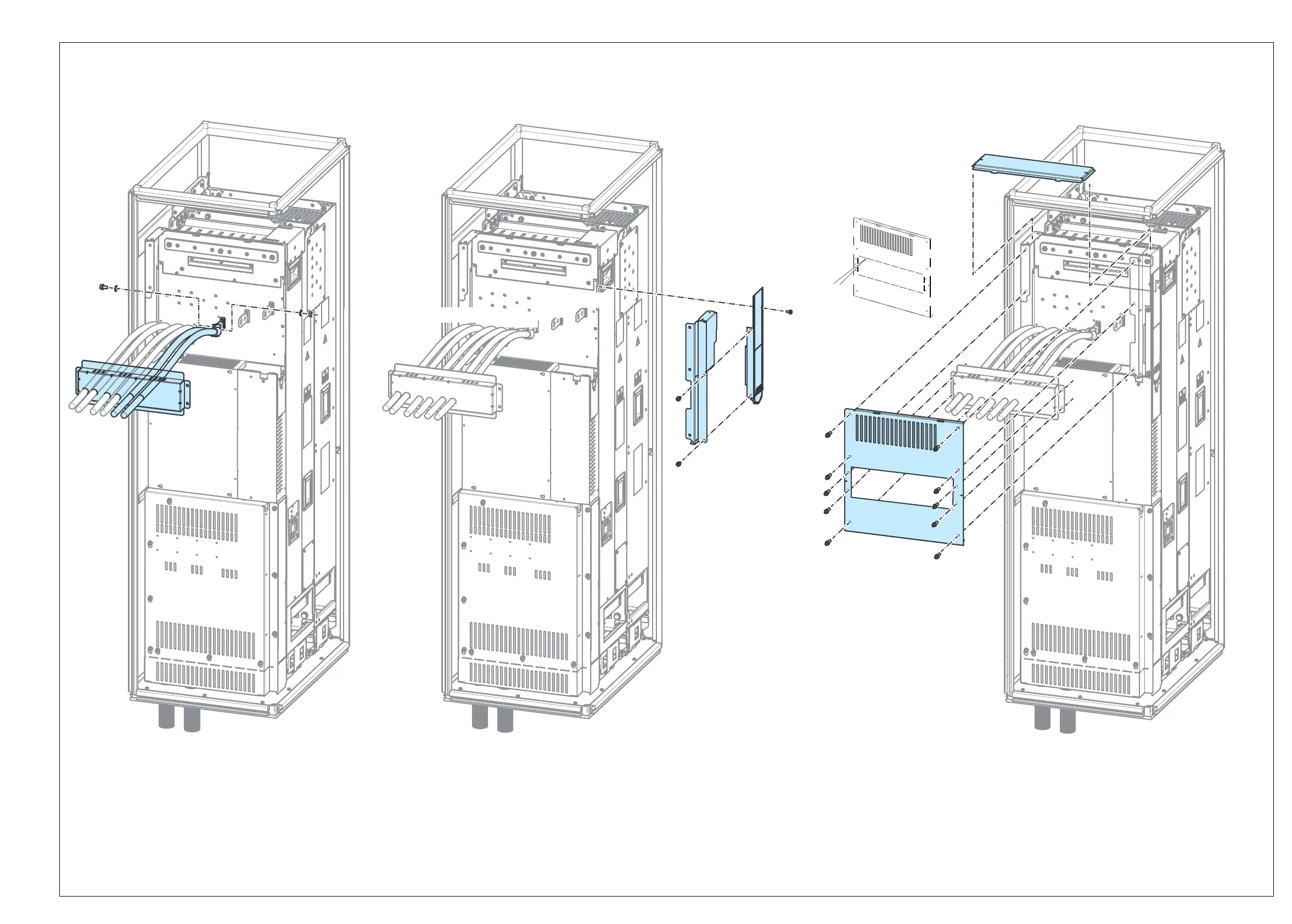

Step-by-step drawings fo
r
an installa
ti
on
example of standard drive configuration in Rittal VX25 800 mm wide cabinet
19
Combi scr
ew
M4
×
10 T
or
x T
20
2N
·
m
Combi screw
M4×10 T
orx
T20 2
N·m
Combi screw
M6×20 T
orx
T25
2N
·
m
L3/
W
1
L2/V1
L1/U1
UDC+
UDC-
+B0
51
+B
051
+B051
18
20
Table of Contents
EN – Quick installation guide
3
Contents of this guide
3
Obey the safety instructions
3
Select the power cables
4
Ensure the cooling
4
Protect the drive and input power cables
4
Installing the drive module and LCL filter module into a cabinet
4
Connecting the power cables and installing the shrouds
5
Default I/O connections
7
Step-by-step drawings for an installation example of standard drive configuration in Rittal VX25 800 mm wide cabinet
9
Product and service inquiries
21
Product training
21
Providing feedback on ABB Drives manuals
21
Document library on the Internet
21
Other manuals for ABB ACQ580-34
Hardware Manual
244 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the ABB ACQ580-34 and is the answer not in the manual?
Ask a question
