ABB ACQ580 Quick Start Up Guide

EN – Quick start-up guide
This guide describes how to start-up the drive using the First start assistant on the
Hand-Off-Auto control panel.
For complete information on start-up, see ACQ580 firmware manual (3AXD50000035867
[English]).
Safety
Make sure that the installation work is complete. Make sure that cover of the drive and the cable box, if
included, are on place.
Check that the starting of the motor does not cause any danger. De-couple the driven machine
if there is a risk of damage in case of an incorrect direction of rotation.

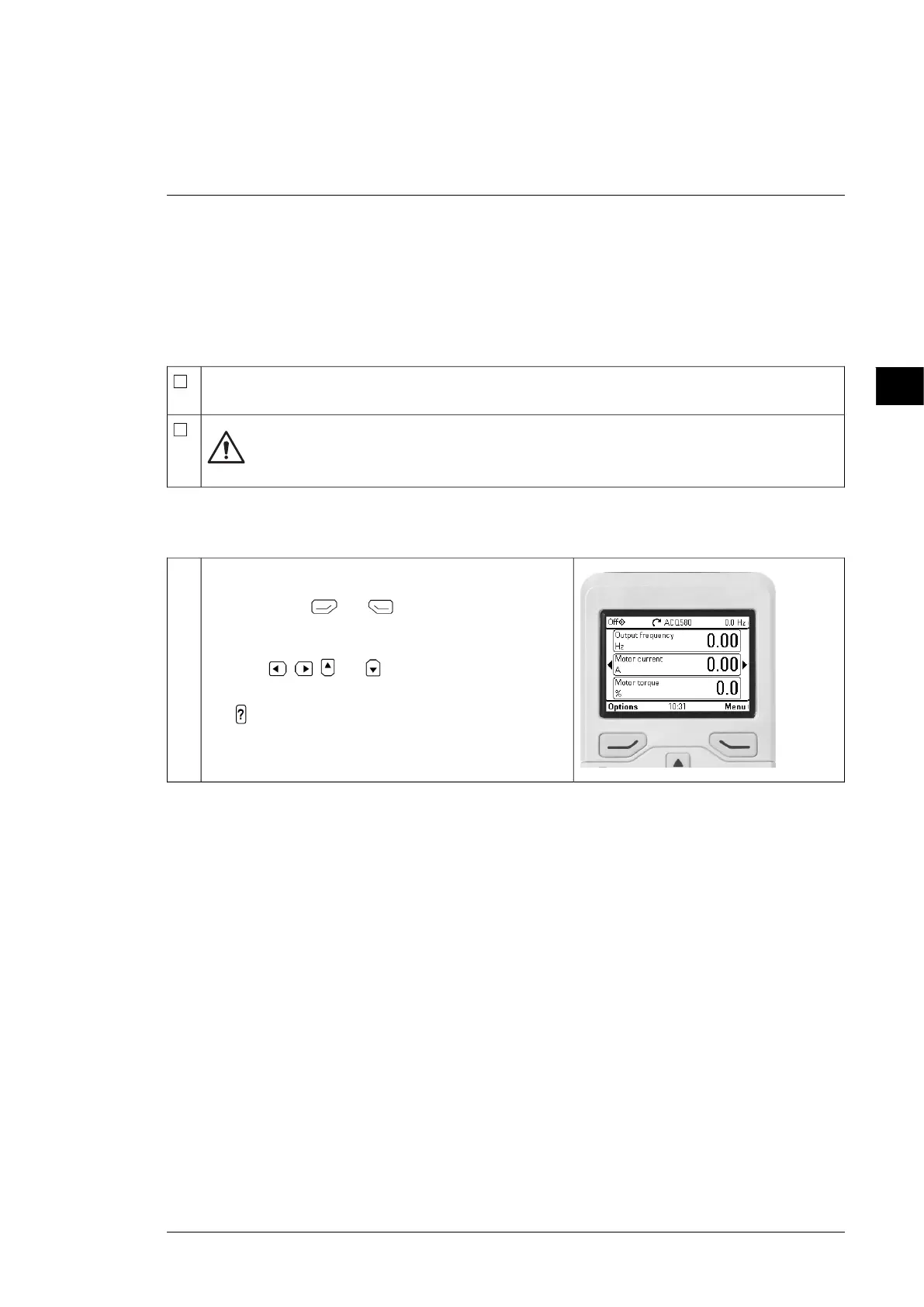

Using the Hand-Off-Auto control panel
EN – Quick start-up guide 3
R0-
R4
EN
DE
ES
FR
IT
RU
SV
EN – Quick start-up guide
This guide describes how to start-up the drive using the First start assistant on the
Hand-Off-Auto control panel. For complete information on start-up, see ACQ580
firmware manual (3AXD50000035867 [English]).
Start-up with the First start assistant on a Hand-Off-Auto
control panel
Safety
Make sure that the installation work is complete. Make sure that cover of the drive and the
cable box/conduit box, if included, are on place.
Check that the starting of the motor does not cause any danger. De-couple the
driven machine if there is a risk of damage in case of an incorrect direction of
rotation.
Hints on using the assistant control panel
The two commands at the bottom of the display
(Options and Menu in the figure on the right),
show the functions of the two softkeys and
located below the display. The commands
assigned to the softkeys vary depending on the
context.
Use keys , , and to move the cursor
and/or change values depending on the active
view.
Key shows a context-sensitive help page.
1 – First start assistant guided settings:
Language, date and time, and motor nominal values
Have the motor or pump name plate data at hand.
Power up the drive.
The First start assistant guides you through the
first start-up.
The assistant begins automatically. Wait until the
control panel enters the view shown on the right.
Select the language you want to use by
highlighting it (if not already highlighted) and
pressing (OK).
Note: After you have selected the language, it
takes a few minutes to download the language
from the drive to the control panel.
?
ACQ580 QSG.book Page 3 Wednesday, July 26, 2017 3:17 PM
The two commands at the bottom of the display (Options
and Menu in the figure on the right), show the functions of
the two softkeys and located below the display.
The commands assigned to the softkeys vary depending on
the context.
Use keys , , and to move the cursor and/or
change values depending on the active view.
Key shows a context-sensitive help page.
For more information, see ACS-AP-x assistant control panels
user’s manual (3AUA0000085685 [Englisch]).
EN – Quick start-up guide 3
EN
CS
DE
ES
FI
FR
IT
PT
RU
SV
TR

ABB ACQ580 Specifications

General

Protection class	IP21, IP55
Ambient temperature range	-15°C to +50°C
Communication protocols	Modbus RTU
Mounting type	Wall mounted
Control method	vector control
Frequency range	0 Hz to 500 Hz
Protection features	Overcurrent, overvoltage, undervoltage, short circuit
