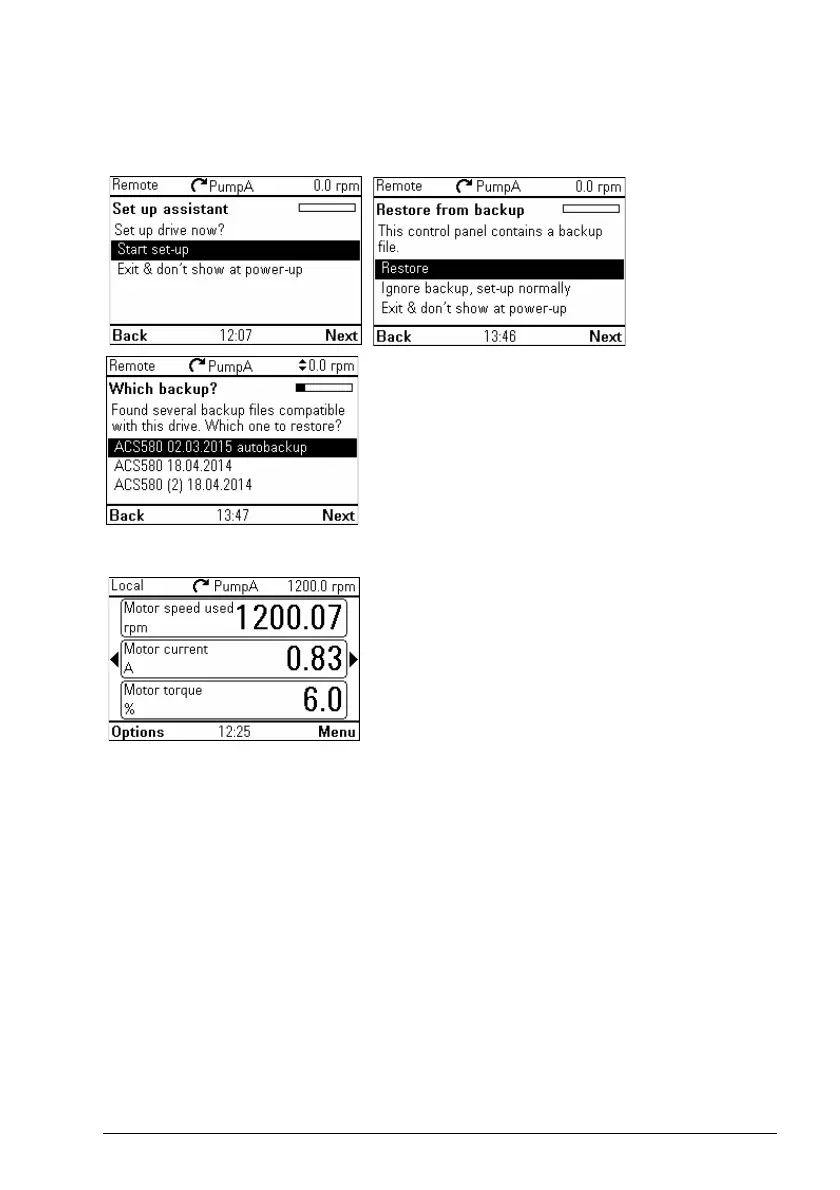

Inst
allation and st
ar
t
-up
13
If t
here i
s a Ba
sic set
-up as
sistant
in the d
r
i
ve, or i
f the c
ontrol
pane
l already
contain
s
a comp
atibl
e backup (
or backups)
that could
b
e copied t
o the dri
ve, t
he control p
anel
pr
om
pts
a que
sti
on.
Once you are in th
e
Home
vi
ew
, the contr
ol panel is
ready for use
.
12
14
Table of Contents
Default Chapter
2
List of Related Manuals in English
2
Table of Contents
5
1 Introduction to the Manual
9
What this Chapter Contains
9
Applicability
9
Compatibility
9
Safety
9
Intended Audience
9
Contents of the Manual
9
2 Installation and Start-Up
11
What this Chapter Contains
11
Installation
11
First Start-Up
12
3 Control Panel Overview
15
What this Chapter Contains
15
Display, Keys and Parts
15
Display
16
Keys
17
Left Softkey
17
Right Softkey
17
Start and Stop
18
Status LED
19
USB Connector
19
Connector
19
Type Code Label
19
Battery Cover
20
4 Basic Operation
21
What this Chapter Contains
21
User Interface Overview
21
Control Panel Navigation
22
Navigation Memory
22
Home View
23
Navigating in the Home View
23
Help
24
Common User Tasks
25
Basic Operation of the Drive
25
Parameters
25
System Information and Help
26
Faults and Warnings
26
Basic Settings and Assistants
26
Backups
27
5 Functions in the Main Menu
29
What this Chapter Contains
29
Menu
29
Navigating in the Menu
30
Parameters
31
Complete List
31
By Function
31
Favorites
31
Modified
32
Adding Parameters to the Home View
33
Editing Parameters
33
Editing Numeric Parameters
34
Editing Selection List Parameters
34
Editing Bit-Field Parameters
36
Editing Texts
36
Resetting Counters
36
Assistants
37
Energy Efficiency
37
Event Log
37
History Graphs
38
Trends
38
Load Profile
38
Backups
38
Creating a Parameter Backup
39
Restoring a Parameter Backup
39
System Info
40
Settings
40
Primary Settings
41
I/O
42
Diagnostics
42
6 Functions in the Options Menu
43
What this Chapter Contains
43
Options Menu
43
Setting the Reference
44
Editing the Contents of the Home View
44
7 Control of Multiple Drives
47
What this Chapter Contains
47
Connecting Multiple Drives to a Control Panel
47
Selecting Drive Menu
48
Selecting a Drive
48
Panel Features with Multiple Drives
48
Panel Views
48
The Help Page
48
Graph Data
49
Backups
49
Customized Content
49
Assistants
49
Faults and Warnings with Multiple Drives
49
Faults and Warnings in the Currently Selected Drive
49
Faults and Warnings in Other Drives
49
8 Fault Tracing
51
What this Chapter Contains
51
Identifying Error and Warning Messages
51
Faults
53
Warnings
53
9 Service and Maintenance
55
What this Chapter Contains
55
Removing the Control Panel Cover
55
Replacing the Battery
56
Control Panel Software Updates
56
10 Panel-To-PC USB Connection
57
What this Chapter Contains
57
USB Connection
57
Connecting Control Panel to PC USB
58
Connecting a PC Tool to a Drive through the Control Panel
59
Connecting in Local Control Mode
59
Connecting in Remote Control Mode
59
Transferring Files between the Control Panel and a PC
60
11 Technical Data
61
What this Chapter Contains
61
Connectors
61
Display
61
Battery
61
Dimensions and Weight
62
Degrees of Protection
62
Materials
62
Environmental Limits
62
Bluetooth Interface
63
FCC and IC Certification
63
Fcc ID: 2Afngapwseries
63
IC: 20555-Apwseries
64
Disclaimers
64
Generic Disclaimer
64
Cyber Security Disclaimer
64
Further Information
65
Product and Service Inquiries
65
Product Training
65
Providing Feedback on ABB Drives Manuals
65
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the ABB ACS-AP-x and is the answer not in the manual?
Ask a question
ABB ACS-AP-x Specifications
General
Brand
ABB
Model
ACS-AP-x
Category
Control Panel
Language
English
Related product manuals
ABB ACS-AP-I
82 pages
ABB ACS-AP-W
82 pages
ABB ACS-AP-S
82 pages
ABB ACS-AP Series
60 pages
ABB ACSM1 Control Panel
46 pages
ABB ACH-AP-H
82 pages
ABB AC-AP Series
82 pages
ABB CP600
24 pages
ABB CP405
15 pages
ABB 6136/30M-101
46 pages
ABB CP600 Series
24 pages
ABB Eurofire EN54
47 pages
