Basic operation 23
Home view
The main view of the control panel is called the Home view. In the Home view, you
can monitor the status of the drive, such as its speed, torque or power. The Home
view has one or more pages, each of which can display up to three signals.
The number of pages and the signals shown on each page are customizable, and the
Home view configuration is saved to the drive whenever you change it. The maximum

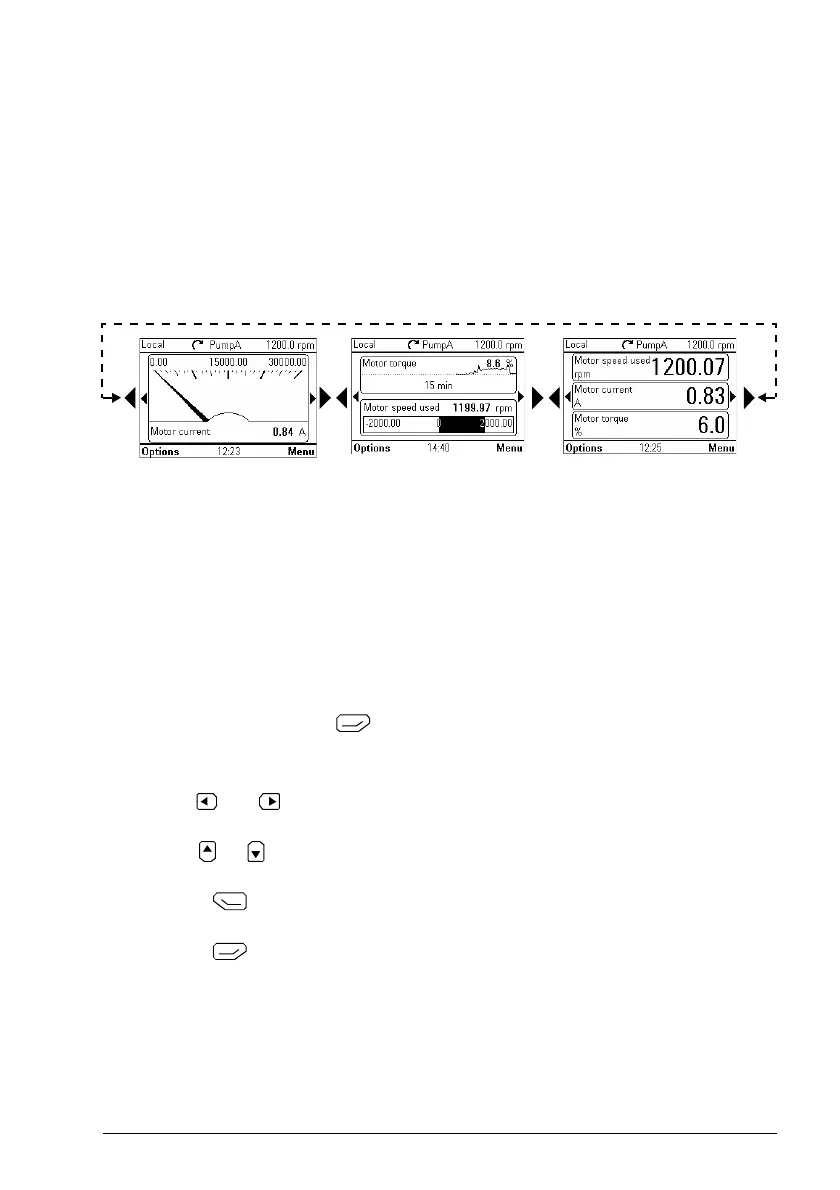

total number of signals displayed varies from 9 to 21, depending on the drive. In the
example below, three Home view pages are used, showing different display formats.
Each application macro and user set has a default Home view configuration. When
you select an application macro or restore a user set, the Home view configuration
changes accordingly. There is a default Home view configuration in each drive, which
can be restored in the Primary settings (page 41) or Settings (page 40) menu.
Note: The Menu varies based on the drive/device to which the panel is connected.
The Home view opens automatically when you power up the drive. The Home view is
also displayed from the Options menu or the main Menu if no key is pressed for 10
minutes.
Tip: You can return to the Home view from any view except special screens by
holding down the left softkey
.
Navigating in the Home view
• Use and to move between the different pages of the Home view. The
page numbers are shown while you scroll between pages.
• Use or to adjust the reference (visible in the top right corner). See also
Setting the reference (page 27).
•Press (Menu) to open the main Menu (see Functions in the main Menu
on page 31).
•Press
(Options) to open the Options menu (see Functions in the
Options menu on page 27).
