137 ACS2000 AFE 2MVA UM 3BHS355653 ZAB E01 REV. H
—
9.1 Overview
The panel messages and parameter settings used in this chapter are
typical examples to illustrate the related instructions and display
functions and may therefore differ from the actual messages and
parameter settings in the drive.
9.1.1 Display and keypad
The CDP control panel features a 4-line LCD display
and a 16-key keypad. The keys are identified in 9-1.
—
References
—

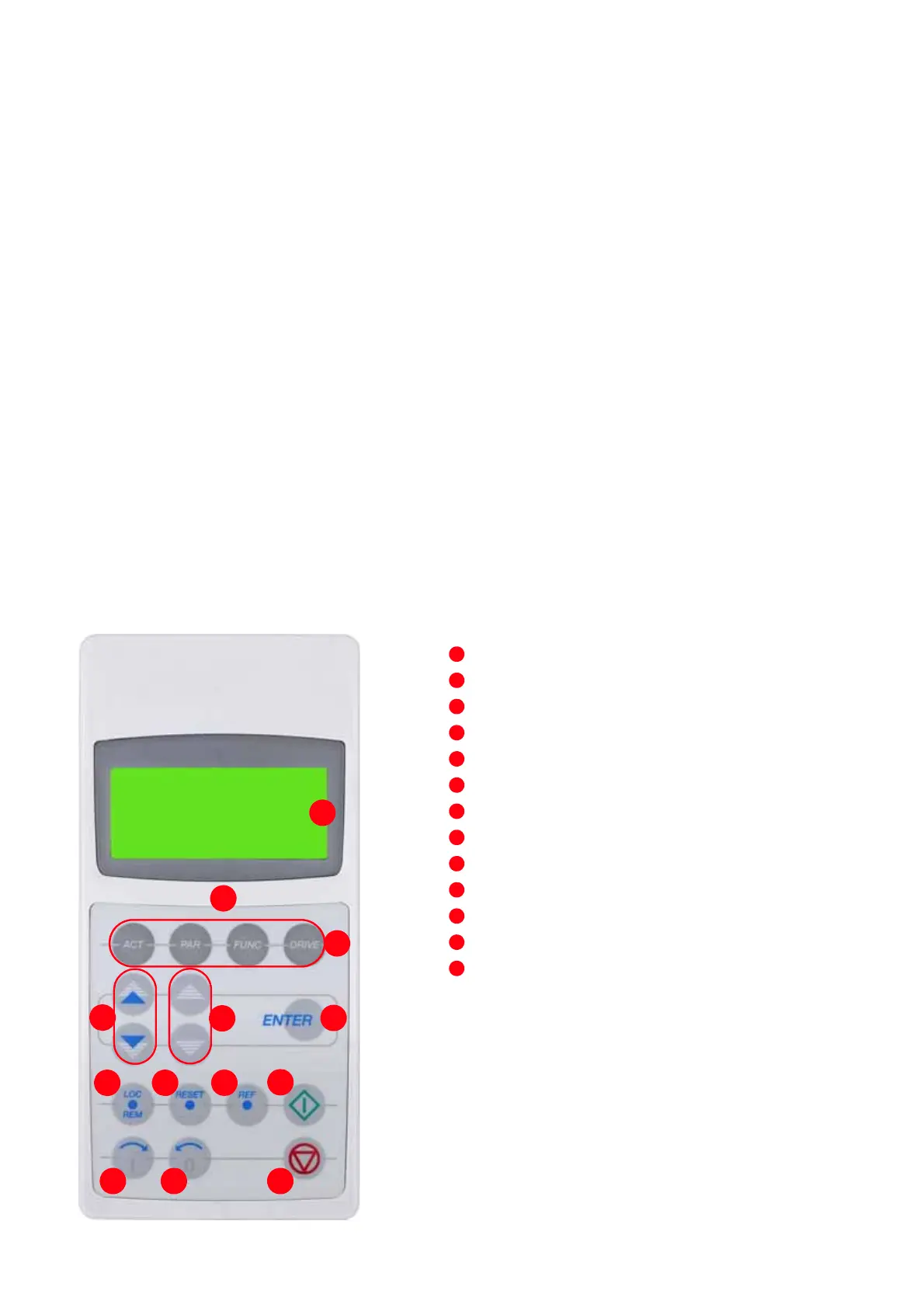

9-1 CDP control panel
—
9-1
.
..
1242,0 rpm
1 L ->
StateINU
ReadyOn
1242 rpm
MOTOR SP
86.0 kW
POWER
Display
Keypad
Mode selection keys
Fast navigation keys, select and / or change a value fast
Slow navigation keys, select and / or change a value slowly
Enter key, terminates a procedure
Local / remote selection key
Reset key
Reference key
Start key
Forward key
Reverse key
Stop key
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7 8 9
10
131211
